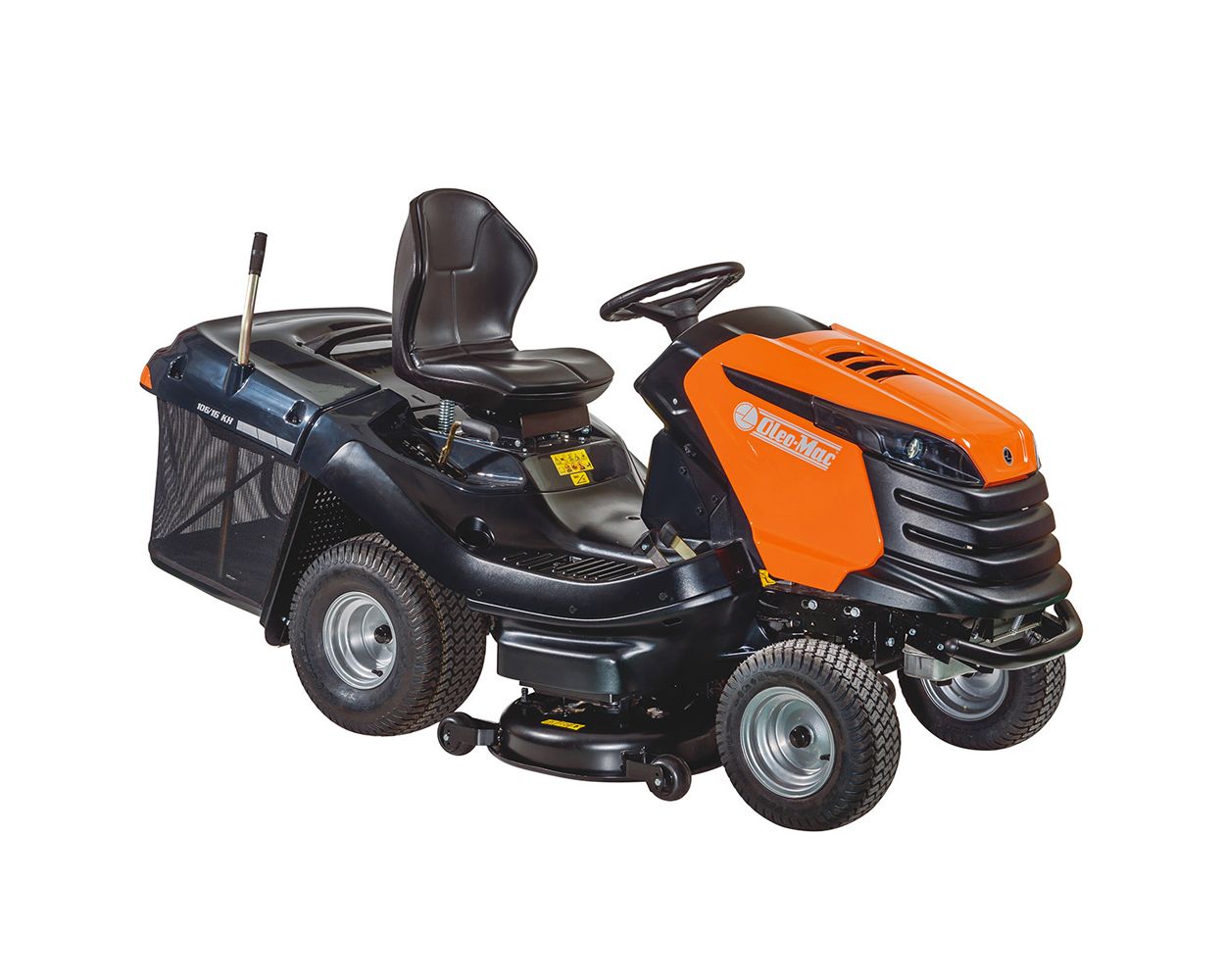

Oleo-Mac OM 106S/24 KH Hydrostatic Rear Collect Lawn Tractor

Special Price £4,402.99 (inc VAT) Regular Price £4,787.00 (inc VAT)

You Save 8% (£384.01)

In stock
Product Code

Currently, people are looking at this product

Delivery Time: Usually 3-4 working days
Pay in 3 interest-free payments of £1467.66 Learn more

The Oleo-Mac OM 106S/24 KH is a powerful, high spec'd rear collect lawn tractor packed with premium features throughout.

Delivering the power is a commercial-grade 24hp / 708cc engine from the machine's Italian manufacturer Emak; the K 2400 AVD series four-stroke engine has twin cylinders and overhead valve configuration. Made by transmission industry-leaders Tuff Torque, the infinitely variable hydrostatic drive ensures superb control and manoeuvrability, whilst the tight 40cm turning circle enhances the lawn tractor's agility around obstacles or awkward corners of the lawn.

A robustly-built machine from the ground up, the Oleo-Mac OM 106S/24 KH features a cast-iron front-axle and reinforced steel chassis. Reinforced blade supports, bearings and screens on the 102cm (40") cutter deck ensure long term durability and the heavy-duty front bumper protects against accidental knocks.

Featuring contra-rotating twin blades for a neat finish, the cutter deck is fitted with four anti-scalp deck wheels to prevent unsightly gouging of the lawn surface when turning. Grass clippings are deposited into a super-sized 320 litre grass bag via an oversized discharge chute to guarantee superior collection performance. The blades are activated by convenient electronic push-button PTO engagement. The height of cut can be adjusted with a handbrake-style lever through seven positions between 30mm and 95mm.

Designed for lawns up to 7,000 square metres in size, powerful headlights mean you don't have to stop mowing when the light begins to fade. High levels of comfort are provided by the anti-vibration system, low noise levels thanks to the fully enclosed bonnet, ergonomic steering wheel and luxury high-back seat.

The quick-fit “Deck Wash System” connector on the mowing deck makes it possible to direct water inside the deck
for quick and easy cleaning of the cutting mechanism.

Representing the synthesis of strength and reliability, Italian-built Oleo-Mac rear discharge lawn tractors are designed to meet the needs of the more demanding user seeking advanced mowing performance and collection capacity combined with unprecedented driving pleasure.

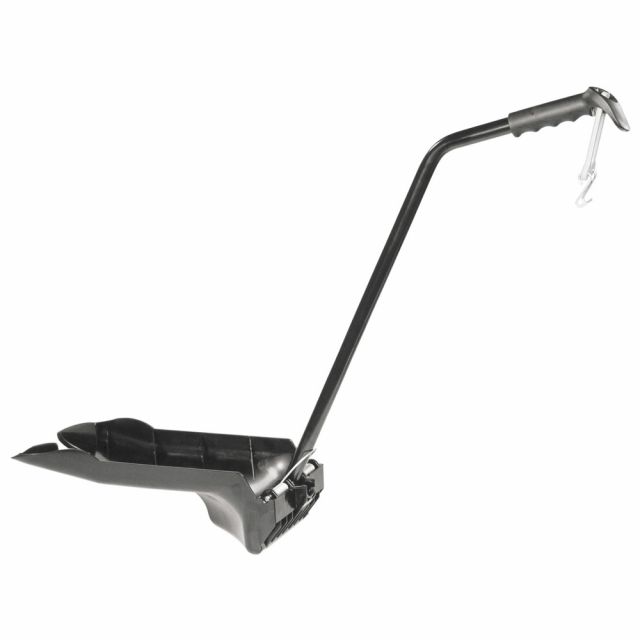

An optional rear deflector and mulch kit is available.

More Information
Brand Oleo-Mac
Engine Emak
Engine Model K 2400 AVD
Engine Type 4-stroke petrol OHV
Engine Cylinders Twin
Displacement 708cc
Horsepower 24hp
Battery Charger Optional: 68130481
Start Method Electric key
Transmission Type Hydrostatic
Transmission Foot-pedal operated
Drive Method Rear wheel
Speeds Forward: 0-9.0km/h
Reverse: 0-4.5km/h
Turning Circle 40cm
Cutting System Cut & collect
Width of Cut 102cm / 40"
Cutter Deck Steel
Blades 2
Blade Engagement Electric PTO
Minimum Cutting Height 30mm
Maximum Cutting Height 95mm
Cutting Height Adjustment Single lever, 7 positions
Anti-Scalp Deck Wheels 4
Deck Wash Nozzle Standard
Collector Capacity 320L
Fill Level Indicator Yes, with acoustic signal
Collector Emptying From seat
Mulch Kit Optional accessory: 6812008A
Rear Deflector Optional accessory: 68120003
Side Discharge N/A
Front Bumper Yes
Headlights Yes
Seat High-back, adjustable
Assembled Dimensions L: 242cm x W: 106cm x H: 116cm
Weight 272.0kg
Warranty 3 years for domestic use
Promotional Image no_selection


Gardening, farming and forestry tools for home users and professionals. Oleo-Mac covers all shades of green.

With different models to meet each user’s needs but all sharing the same exceptional quality standards in terms of performance, reliability, comfort and safety. The accessories range is offered as an extension and completion of the product range. Ergonomics, quality and styling are essential ingredients of the development of Oleo-Mac’s products: primarily designed to meet the needs of professionals whilst also taking care of the requirements of less expert users who insist on the very best.

A truly comprehensive range of superb quality products at highly competitive prices – that’s the Oleo-Mac formula.

The Italian Oleo-Mac brand is distributed by The Emak Group which is active in the development, production and worldwide sale of an extensive range of products for three business segments:

Outdoor Power Equipment

  • Products for gardening, forestry and agriculture, including brushcutters, law mowers, garden tractors, chainsaws, rotary tillers and rotary cultivators.

Pumps and High Pressure Water Jetting

  • Products for agriculture, including centrifugal and diaphragm pumps for crop spraying and weed control;
  • Products for industry, including pumps for industrial applications and high and very-high pressure systems;
  • Products for cleaning, namely professional and semi-professional high-pressure washers, floor scrubber-dryers and vacuum sweepers.

Components and Accessories

  • Products such as strimmer line and line heads for brushcutters, accessories for chainsaws, guns, valves and nozzles for high-pressure washers and for agricultural applications, plus precision farming products (sensors and computers).
A range of machines aimed at the home user, for tidying and cleaning the garden, cutting hedges and small trunks or stems, and DIY jobs in general. Characterized by lightweight and compact construction, to make the task of the operator that much simpler. Easy to start, easy to use, easy to maintain: these are the ideal tools for getting things done quickly and neatly around the home. Solid and dependable, these are machines designed for heavy and frequent use in countryside environments: clearing overgrown and uncultivated areas, pruning and cutting firewood, crop irrigation and disinfestation tasks. Designed adopting solutions certain to ensure high work rates and maximum durability over time. No-nonsense everyday tools for the busy professional, these are machines that stand out for the toughness of their components, their high performance and their matchless long-term durability. Specific materials used in construction guarantee unwavering quality even when tackling the most severe and lengthy of tasks, like forestry work and the clearance of uncultivated areas or scrub and undergrowth.




View Oleo-Mac brochure online

White Glove Delivery Service

Ready Steady Mow!

Fully Assembled

Your lawn tractor will be fully assembled for you.

Pre-Delivery Inspection

We will complete a PDI in compliance with the manufacturer's guidelines.

Tried and Tested

Your machine will be fuelled, oiled, run and workshop tested to ensure it is in perfect working order.

Personal Delivery

Wherever possible, your tractor will be delivered to your garden on our own transport.

Full Working Handover

You will receive a full working handover by a trained member of The Green Reaper so you can start mowing straightaway.

For Greater Distances

The machine is cable tied to a pallet and shrink-wrapped into a cocoon. Our transport partner will then deliver the machine on a tail-lift lorry on an agreed working weekday. You simply unwrap the pallet, cut the cable ties and you're ready to mow.
