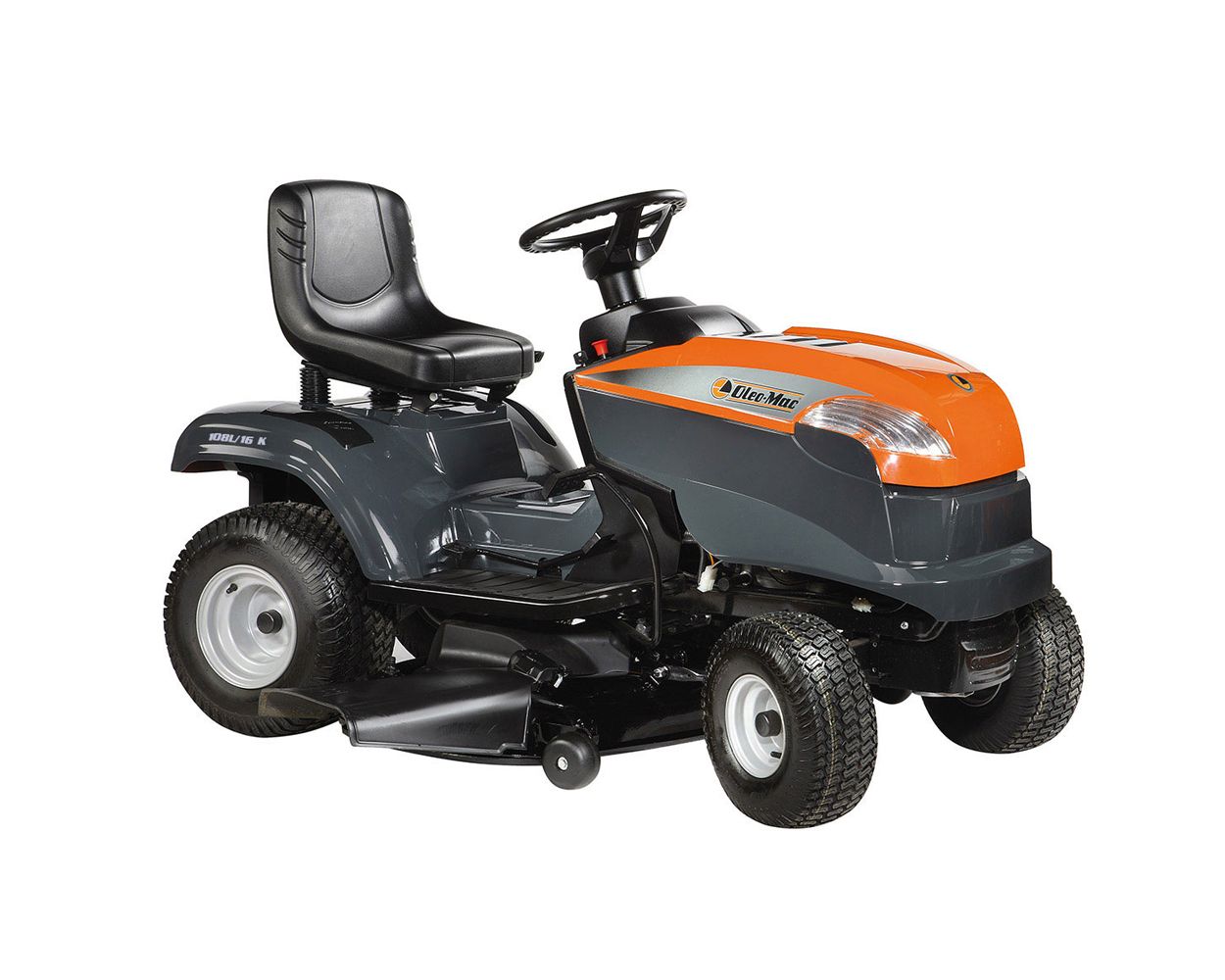

Oleo-Mac OM 108 L/16 KH 108cm Hydrostatic Side Discharge Lawn Tractor

Description

Ideally suitable for larger lawn areas up to 8,000 square metres, the high-specification Oleo-Mac OM 108 L/16 KH lawn tractor is packed with premium features and is a pleasure to drive.

Equipped with a generous 108cm (43") twin-bladed cutter deck, this versatile garden tractor offers two mowing modes: either mulch regularly maintained, more formal areas to return natural nourishment to your turf with the mulch kit provided; or side-discharge using the side deflector in rougher areas where the grass has been left to its own devices and grown longer.

Electromagnetic PTO engagement means you will find it quick and easy to start and stop the blades. The machine has seven pre-set cutting heights from 30mm to 80mm, conveniently controlled by an ergonomic lever so you can adapt to the changing conditions of the British lawn.

Thanks to the tight 65cm turning radius, the tractor has the agility to negotiate obstacles in the lawn and awkward corners. Anti-scalp deck wheels prevent unsightly gouging of the turf during manoeuvres over irregular ground, whilst turf-tread tyres provide grip when mowing on slopes or damp lawns.

A reliable 452cc Emak K 1600 AVD engine delivers all the necessary power and features electric key start for consistently hassle-free starting. The smooth hydrostatic transmission operated with ergonic foot pedals provides the best in control and manoeuvrability with speeds up to 8.8km/h in forward drive. The engine also benefits from Emak's overhead valve technology for reduced noise and emissions.

The comprehensive electronic dashboard display on the OM 108 L/16 KH, combined with the adjustable, padded, high-backed seat with sprung suspension ensure ease of operation and a comfortable ride.

A deck wash port makes it quick and easy to keep the cutting mechanism clean on the tractor's undercarriage.

The Oleo-Mac OM 108 L/16 KH can be fitted with an optional tow-bar so you can hitch up a variety of tow-behind lawn care attachments to extend the usefulness of your lawn tractor. Oleo-Mac's QuickFit attachment mechanism means you can remove accessories, such as the cutter deck, without the need for tools.

Specification

More Information
Brand	Oleo-Mac
Engine	Emak
Engine Model	K 1600 AVD
Engine Type	4-stroke petrol OHV
Displacement	452cc
Engine Cylinders	Single
Start Method	Electric key
Transmission Type	Hydrostatic
Transmission	Foot-pedal operated
Speeds	Forward: 0-8.8km/h Reverse: 0-3.8km/h
Battery Charger	Included as standard: 68130481
Cutting System	Mulching & side discharge
Width of Cut	108cm / 43"
Blades	2
Blade Engagement	Electric PTO
Minimum Cutting Height	30mm
Maximum Cutting Height	80mm
Cutting Height Adjustment	7 positions, lever
Side Deflector	Standard
Mulch Kit	Included: 68050017
Turning Circle	65cm
Seat	High-back, padded, sprung, adjustable
Headlights	Yes
Deck Wash Nozzle	Standard
Anti-Scalp Deck Wheels	2

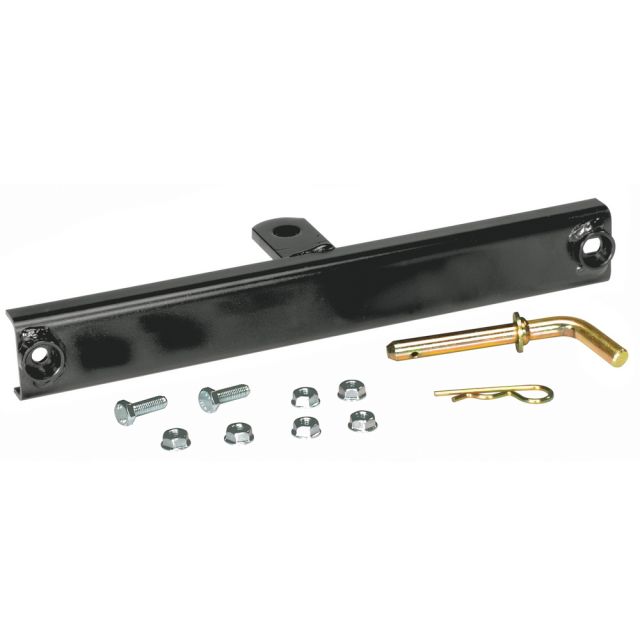

Tow Bar	Optional towing kit: 68050004
Assembled Dimensions	172cm x 136cm x 106cm
Weight	171.0kg
Recommended Lawn Area	< 8,000m²
Warranty	3 years manufacturer's for domestic use
