Product Code: OE-LS360

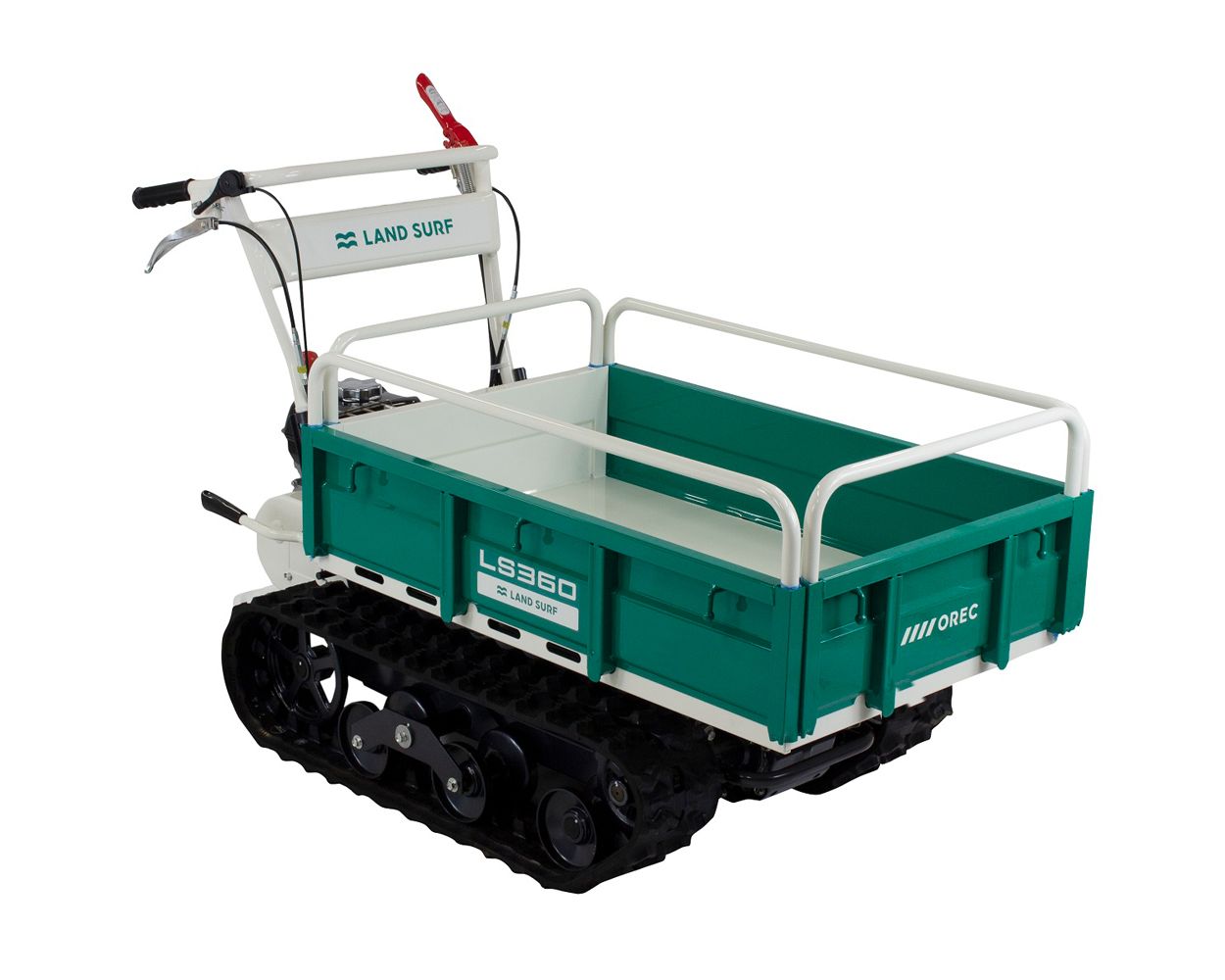

Orec Land Surf LS360 Tracked Petrol Transporter
Orec Land Surf LS360 Tracked Petrol Transporter
Get 0% interest from £299.90 per month
Get a £20 discount when you spend £250 or more online! Use the code 20OFF in the checkout
Hurry up, only 3 items left in stock.
- Delivery Time: Usually 5-7 working days (Monday - Friday)
2 Year Manufacturer’s Warranty
Delivery Information
UK MAINLAND
Delivery costs to most United Kingdom mainland addresses are included in the price of our garden machinery products over £100.
For orders of garden machines under £100, all hand tools including WOLF-Garten and Wilkinson Sword, accessories and parts, the cost of delivery will be calculated in your shopping basket according to the weight of the product and your postcode. Parts, accessories & hand tools will normally incur a small delivery charge of £8.50.
Additional delivery charges may apply to the following areas and this will be calculated in your shopping basket when you input your postcode:-
Isle Of Wight
Scottish Highlands
including postcodes AB31-38, AB41-45, AB51-56, FK19-21, IV1-56, KA26-28, KW1-17, PA20-88, PH1-9, PH15-44, PH49
East Coast of Scotland
including postcodes AB1-3, AB9-16, AB21-25, AB30, AB39, AB41-AB42, DD1-11, KY13, PH2, PH11-14
Whilst there is NO additional charge to deliver to the east coast of Scotland postcodes, for courier deliveries under 99kg, please allow up to two working days from date of despatch for your order to arrive.
UK OFFSHORE AREAS
We are unable to deliver our products to locations below as we cannot support them if they become faulty within the warranty period.
Scottish Islands
including postcodes HS1-9, ZE1-3
Isle of Man
Northern Ireland
Channel Islands
OVERSEAS - EUROPE AND THE REST OF THE WORLD
The Green Reaper does not offer a delivery service outside the UK.
SATURDAY DELIVERY
For an additional charge, we can arrange for orders to be delivered to UK mainland addresses by courier on a Saturday. Please visit our Contact Us page or email us at sales@thegreenreaper.co.uk to obtain a quotation.
ADDITIONAL DELIVERY INFORMATION
Whilst we can deliver to an alternative delivery address, please note that for your security, we may require proof of your relationship with the second address. This reduces the possibility of someone else using your card fraudulently. Our Sales Team will call you to arrange this with you.
Stock willing, we aim to dispatch goods within 24 hours of receiving the order, however, please allow up to seven working days for your order to arrive. You will be contacted by email if the order is likely to take any longer. Please note: SCH products are built to order and usually delivered on their own transport so we quote a longer lead time.
An order confirmation email will be sent to your registered email address as soon as you submit the order online.
Please note that additional delivery charges may only be added at time of order processing, and will not always appear in the shopping basket or order confirmation email.
Normal delivery hours are 9am – 5.30pm, Monday to Friday. For security reasons a signature is required to acknowledge receipt. If you know that there will be no one available to sign for your delivery, it may be preferrable to supply an alternative address for delivery.
If no one is available at the delivery address to sign for the goods, the delivery company will leave a calling card. You can simply call the number on the card quoting the card reference number to re-arrange delivery at a more suitable time. Alternatively, you may prefer to collect the goods from your local depot. If you are unable to take delivery and the item is subsequently returned to us, the customer is liable for the cost of returning the goods.
ORDER TRACKING
How to track your parcel
If you choose to register with The Green Reaper, you will receive a member registration email containing your login details. When you place an order, you will receive an email confirmation of your order. You can login to your account at any time to check the status of your order - i.e. if it has been processed and despatched, etc. To login simply enter your email address and the password provided to track your order or edit your details.
If you have any questions regarding your order, please contact us using the contact form on our website. As soon as your goods are despatched, we will notify you by email the method of despatch, together with consignment details, where relevant. We will provide you with a link to our preferred courier's website so you can track your order's progress online.
If you have any further enquiries, please use the contact us form on the footer of our website.
DISCLAIMER
We work closely with our carriers to ensure the best possible service and delivery times, however, some delays may occur which are outside our control.
Flexible Finance Options
Spread the cost of your new appliance with our payment options. Choose from the options below at checkout and tailor your payments to your needs.
Description
Description
Specification
Specification
| Brand | Orec |
| Engine Make | Honda |
| Engine Model | GX120 |
| Engine Type | 4-stroke, petrol |
| Engine Displacement | 122cc |
| Fuel Tank Capacity | 2.0L |
| Start Method | Recoil |
| Transmission |
Mechanical, designed and built by Orec
|
| Gearbox |
2 forward + 2 reverse
|
| Speeds |
Forward - 1st: 1.5kmh / 2nd: 3.4km
Reverse - 1st: 1.5km/h / 2nd: 3.4km/h |
| Brake Type |
Service & parking, expanding, with automatic engagement when the clutch is disengaged
|
| Hopper |
Material: Sheet steel / Sides: Extendable and removable
|
| Hopper Capacity | 350kg |
| Bed Size |
Closed: L: 98cm x W: 65cm / Open: L: 114cm x W: 98cm
|
| Tipping Mechanism | Manual |
| Track Width |
Rubberised, width: 160mm, pitch: 60mm, 35 links
|
| Steering |
Independent sterring clutches on the tracks
|
| Assembled Dimensions |
L: 148cm x W: 68cm x H: 100cm
|
| Weight | 140.0kg |
| Warranty |
Manufacturer's - 2 years domestic / 1 year professional (registered within 30 days of sale)
|
Features
Features
Honda GX120 engineThis model is equipped with a 122cc professional Honda GX120 OHV engine with the following features:-
|
 |
 |

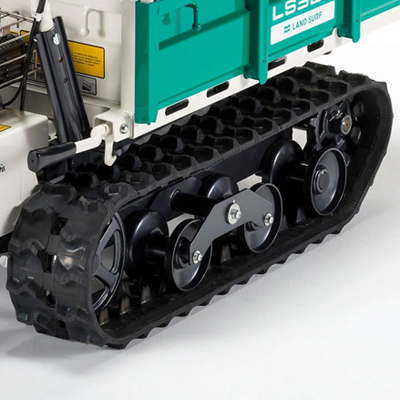

TrackedThanks to sturdy tracks, this transporter can also be used on steep or sloping terrain. The width and profile of the tread guarantee perfect traction and stability. The rocker wheels at the centre of each track allow it to accommodate all the roughness of the ground, avoiding jolts due to irregularities. The load remains steadier and the operator avoids unnecessary effort to move the machine. |

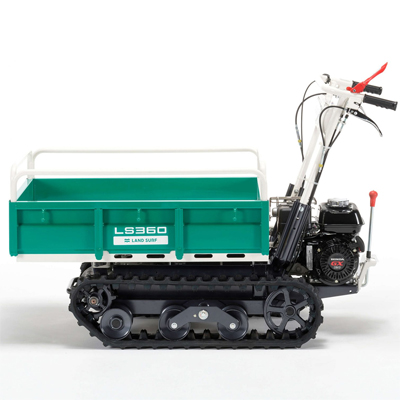

Perfect balanceThe engine is positioned at the rear and the transmission at the front which makes the machine perfectly balanced, even when empty. |
 |
 |

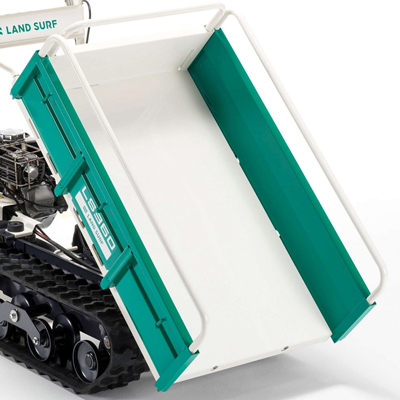

Manual tipping bodyThe manual tipping system of the body allows the material to be unloaded extremely easily. |

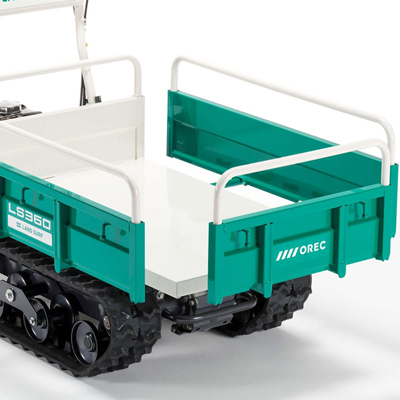

Extendable and removable sidesThe body of the transporter is equipped with extendable and completely removable sides, which enables increased useful transport space. Thanks to the removable side rail tubes and the hooks located outside the sides, it is possible to load different types of material and securely tie them to the transporter. |
 |
 |

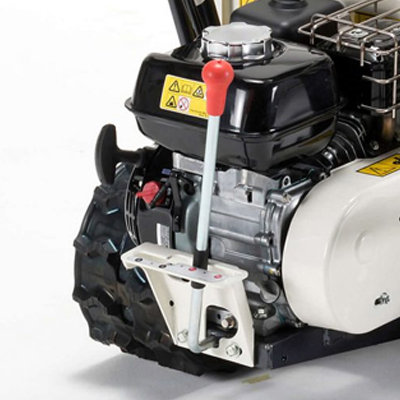

Transmission and chassisThe mechanical transmission has two forward and two reverse speeds. The frame is a sturdy steel structure which limits vibrations and noise, whilst the low centre of gravity ensures excellent stability during work. |

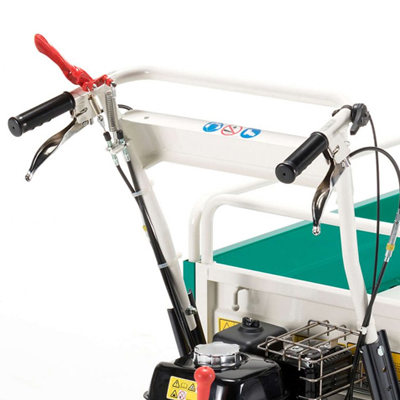

ControlsThe ergonomic controls are extremely easy to operate and ensure extreme manoeuvrability and precision. The steering can be adjusted thanks to the control levers. By simply pressing one or other of the levers, the wheelbarrow will steer to the left or right. |
 |
 |

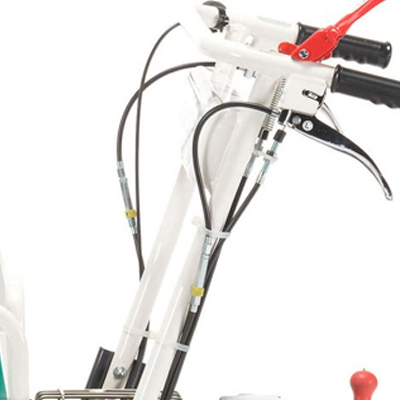

High level control cablesOrec cables are lubricatable and adjustable which gives softness to the levers, delicacy in manoeuvring and longer life in dusty conditions. |
Manuals
Manuals
Brand
Brand
ABOUT OREC .....
The ideal solution for the perfect elimination of overgrown grass and weeds on flat, sloping, uncultivated and neglected fields.
Orec was established in 1948 as a family owned and operated provider of outdoor power equipment serving small-plot farmers and large property owners for the local region of Fukuoka, Japan. With the strong belief from its humble beginnings that product innovation requires strong community collaboration and a manufacturer’s commitment to quality and durability, Orec now serves a variety of outdoor professionals ranging from landscapers and construction contractors to farmers and rental equipment companies.
Today, Orec is a global brand that provides outdoor power solutions throughout Europe, Asia, Australia and North America. The company are still owned and led by the same family that started this journey more than seven decades ago as the third generation of this family is being prepared to successfully lead the brand to new heights and more innovations on the way towards its first 100 years of business and beyond.
Orec has built its reputation for superior performance by listening to its customers’ changing needs and then building quality products to help them meet those needs. Orec equipment is designed and manufactured in Japan, Orec build their own transmissions which are famous for their durability and quality you can rely on.
