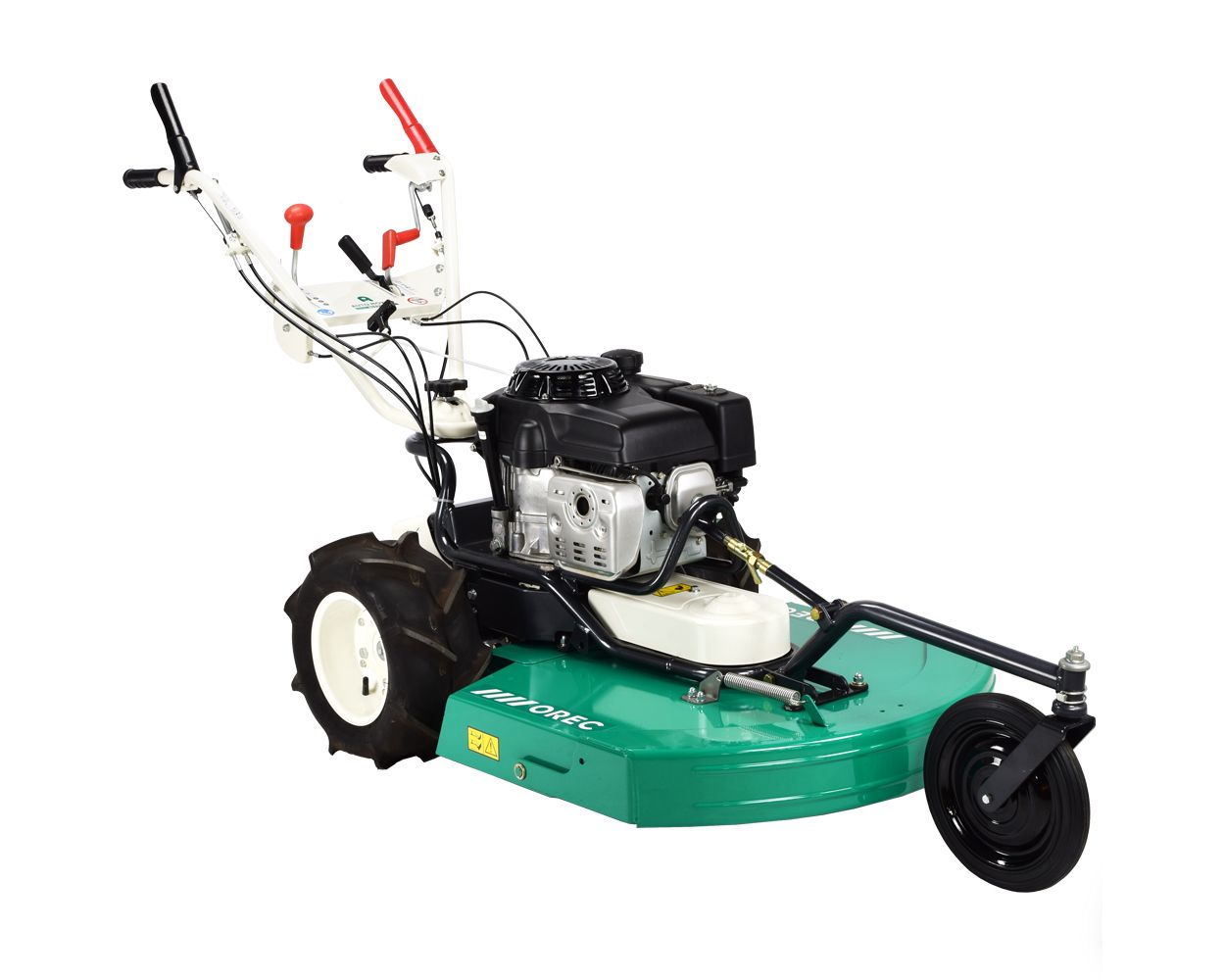

Orec SH71H 70cm Field & Brush Mower

Description

The SH71H professional rotary mower, with a working width of 70cm, is designed and built by Orec in Japan for intensive work in difficult field conditions, even in the most extreme areas. Thanks to its solid and durable construction, easy steering and optimal adhesion to the ground, it overcomes all types of terrain.

Powered by a Honda GXV340 four-stroke engine with overhead valve technology, the Orec SH71H features a professional four-speed aluminum gearbox with three forward and one reverse gears which ensures even speeds on slopes up to 15 degrees. The infinitely-adjustable cutting height means the mower can be adapted to suit a wide variety of conditions.

The Orec SH71H is equipped with a replaceable mulching blade made of hardened steel for mowing and shredding tall, course grass and weeds, driven by a strong V-belt. The serrated blade easily clears heavily overgrown areas, increasing mowing and mulching efficiency. Orec has paid particular attention to the design of the cutting deck to ensure it has the maximum ventilation inside to allow optimal discharge of the cut grass.

For optimum user comfort and manoeuvrability during operation, the handle is both vertically and laterally adjustable. The structural robustness of the machine and the clawed wheels always ensure grip and traction, even on uneven terrain.

Specification

More Information
Brand	Orec
Engine	Honda
Engine Model	GXV340
Engine Type	Petrol, 4-stroke, OHV
Displacement	337cc
Power	6.5kW
Engine Cylinders	Single
Start Method	Recoil
Gears	3 forward + 1 reverse
Speeds	Forward - 1st: 1.59km/h / 2nd: 2.39km/h / 3rd: 3.58km/h Reverse: 1.59km/h
Differential Locking	Yes
Maximum Operating Angle	Up to 15°
Blades	Single rotary, mulching
Width of Cut	70cm / 27.5"
Minimum Cutting Height	55mm
Maximum Cutting Height	100mm
Height Adjustment	Infinitely variable
Handle Type	Adjustable, horizontally and vertically
Wheels	Front: Pivoting, lockable / Rear: 4.00 -7, tractor
Assembled Dimensions	L: 203cm x W: 81cm x H: 103cm
Weight	101.0kg
Warranty	Manufacturer's - 2 years domestic / 1 year professional (registered within 30 days of sale)
Promotional Image	no_selection

Features

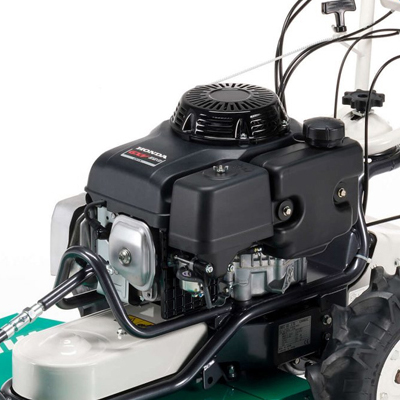

Honda GXV340 OHV engine The Orec SH71H field and brush mower is equipped with a professional 337cc Honda GXV340 OHV engine with the following top features:- The OHV configuration guarantees very efficient combustion while respecting all the strictest regulations existing in Europe A high power-displacement ratio supporting a demanding workload Easy and light starting, thanks to an efficient decompression system and ergonomic handle High quality materials, designed to last the life of the mower Very low fuel consumption Reduced vibration and noise

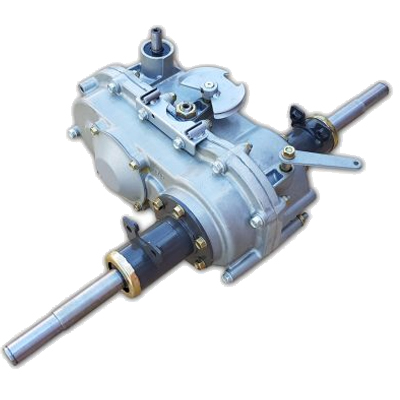

	Orec transmission - maximum efficiency at reduced costs The transmission is a fundamental part of a car and makes it more or less professional. For this reason, to give maximum quality, Orec designs and builds its own transmissions in-house. The Orec SH71H is equipped with a mechanical transmission with three forward speeds and one reverse speed, and is also equipped with differential lock. The particular reliability of these transmissions, designed for heavy-duty work, avoids breakages or expensive maintenance interventions and allows them to last a long time.

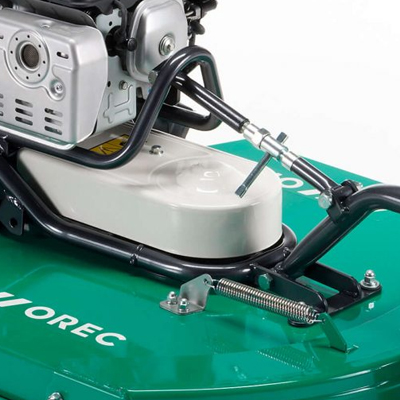

High speed - high blade rotation The SH71H is equipped with special pulleys which increase the rotation speed of the blade therefore obtaining better results during mowing.

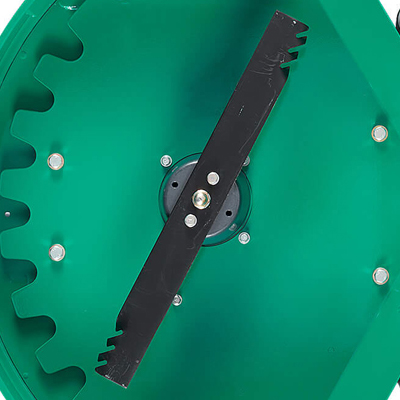

	Mulching blade as standard The mulching blade shreds the grass more finely and leaves less residue.

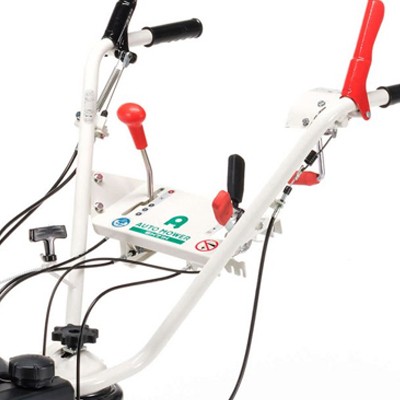

Control panel All the controls are located on the handlebar within easy reach.

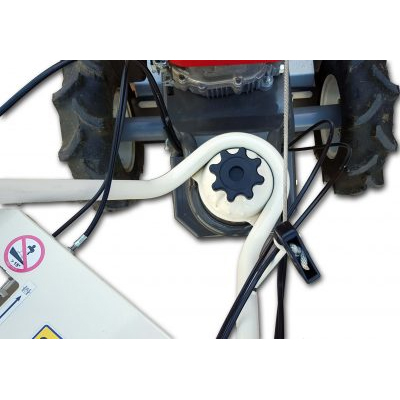

	Handlebar adjustment and edge cutting Thanks to a practical knob it is possible to adjust the handlebar both in height and laterally, allowing the operator to walk in a cleaner and safer position. This feature, combined with the protruding mower deck, makes it possible to cut close to the edges, under plants and hedges.

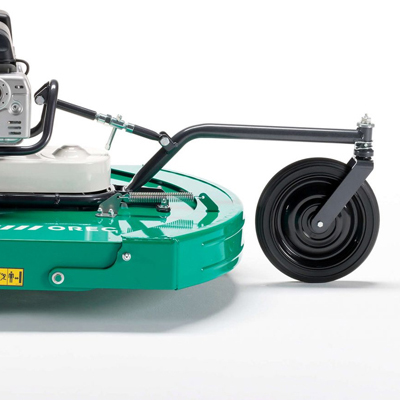

Height adjustment and pivoting wheel The practical lever on the front wheel makes it possible to adjust the cutting height centrally. The wheel can be used both in a fixed, locked position and in a free, pivoting position, allowing you to navigate around obstacles with minimal effort.

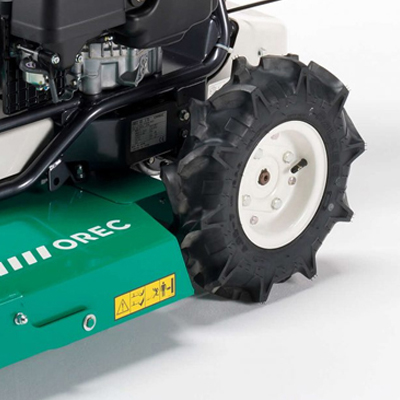

	Maximum grip with rear wheels and differential lock The two rear wheels are of the agricultural type to allow greater grip on rustic and uneven terrain. If more traction is needed, even on slopes, simply operate the differential lock control on the rear wheels.

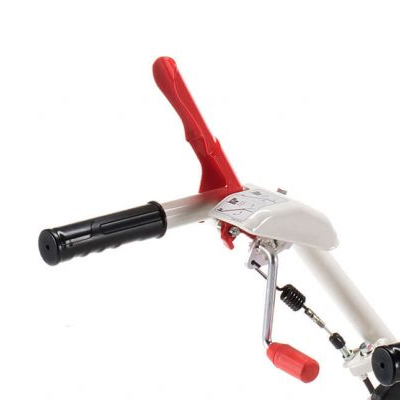

Safe blade engagement and disengagement The blade is connected to the drive shaft via a belt so as to protect the machine from any impact damage. The blade is inserted with the tensioning of the belt via a control on the handlebar, the insertion takes place with two hands to guarantee maximum safety for the operator. The moment the operator lifts his hand from the handlebar, the blade disengages and stops immediately.

Video

NB: Machine now in green and white.

Manuals

INSTRUCTION MANUAL

Brand

ABOUT OREC .....

The ideal solution for the perfect elimination of overgrown grass and weeds on flat, sloping, uncultivated and neglected fields.

Orec was established in 1948 as a family owned and operated provider of outdoor power equipment serving small-plot farmers and large property owners for the local region of Fukuoka, Japan. With the strong belief from its humble beginnings that product innovation requires strong community collaboration and a manufacturer’s commitment to quality and durability, Orec now serves a variety of outdoor professionals ranging from landscapers and construction contractors to farmers and rental equipment companies.

Today, Orec is a global brand that provides outdoor power solutions throughout Europe, Asia, Australia and North America. The company are still owned and led by the same family that started this journey more than seven decades ago as the third generation of this family is being prepared to successfully lead the brand to new heights and more innovations on the way towards its first 100 years of business and beyond.

Orec has built its reputation for superior performance by listening to its customers’ changing needs and then building quality products to help them meet those needs. Orec equipment is designed and manufactured in Japan, Orec build their own transmissions which are famous for their durability and quality you can rely on.

The time has come for Orec!
