SCH PSPMN 30L Sprayer fitted with Multi Nozzle Boom - Push or Towed - Spray Width 36"

Special Price £1,453.00 (inc VAT) Regular Price £1,614.79 (inc VAT)

You Save 10% (£161.79)

In stock

Product Code

PSPMN

Currently, people are looking at this product

Custom Options For The PSP Sprayer

Spray Boom Cover Skirt + £143.00 (inc VAT)

Dribble Bar + £126.00 (inc VAT)

5m Lance Hose Extension + £50.00 (inc VAT)

Hand Lance Shroud + £45.00 (inc VAT)

Brass Lance 45cm Extension + £15.00 (inc VAT)

Spare Rechargeable Battery + £100.00 (inc VAT)

Delivery Time: BUILT AND SUPPLIED TO ORDER
** PLEASE ALLOW APPROXIMATELY 2 - 3 WEEKS FOR DELIVERY **
NB: Delivery to Scotland may take up to 6 WEEKS

Qty

FREE DELIVERY TO ENGLAND AND WALES*

* Scotland incurs an additional delivery charge

Description

The PSP power sprayer from SCH has proved to be a very popular, versatile and simple to operate unit.

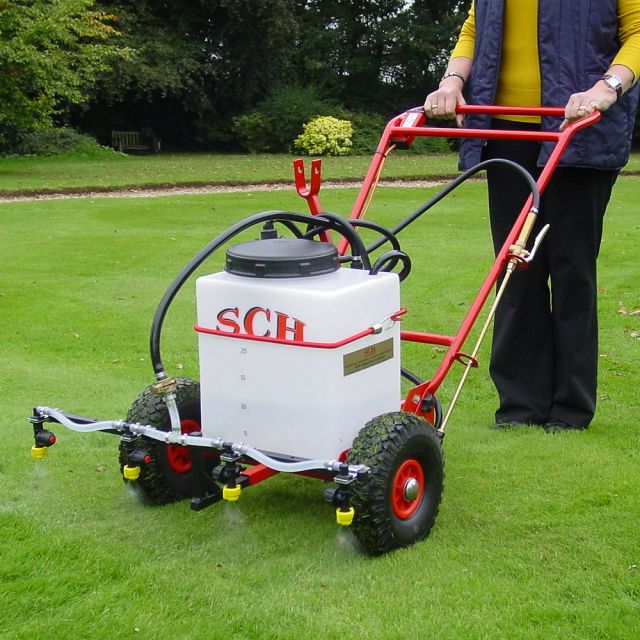

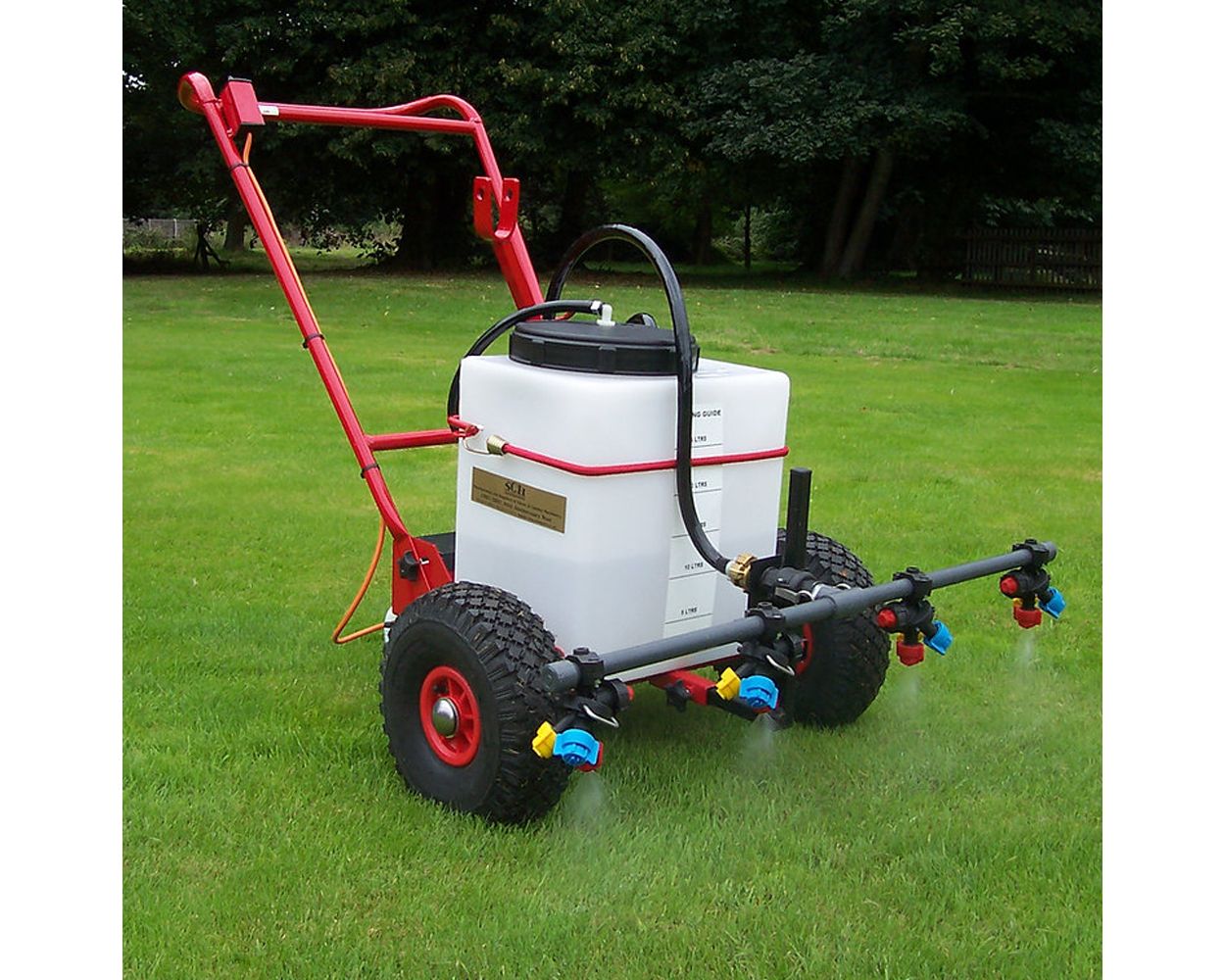

The multi nozzle sprayer is illustrated here fitted with a four nozzle boom giving a spray width of up to 915mm (36") achieved by positioning the boom at the top of the bracket. The nozzles are fitted to a turn-over turrent holder giving a choice of three types of nozzles.

Theis mounted on a robust tray three wheel chassis. The pump is a 12 volt diaphragm pump powered from its own integral battery, which a charger supplied. The pump is run on a pressure system which means that when the spray is shut off the pump shuts down, similarly open and the pump restarts.

Typically the average spray time per battery charge is around five hours normal spray use (3.5 hours intermittent), for continuous spraying so on/off time, refill and movement actions will enhance the overall spray time.

The low to ground four nozzle boom minimises drift and therefore close-to-edge work can be carried out. A brass trigger lance is supplied for spot spraying. A pressure gauge and a by-pass regulator are fitted for the hand lance.

The handles on the sprayer are adjustable to suit the operator. A tow bar is also supplied with each machine.

Optional extras available include:

Spray boom cover

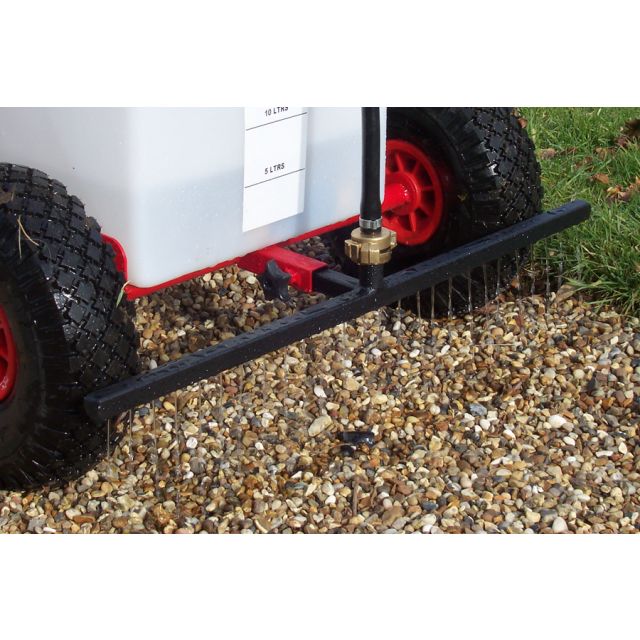

Dribble bar
Exention to the brass hand lance
Delivery hose

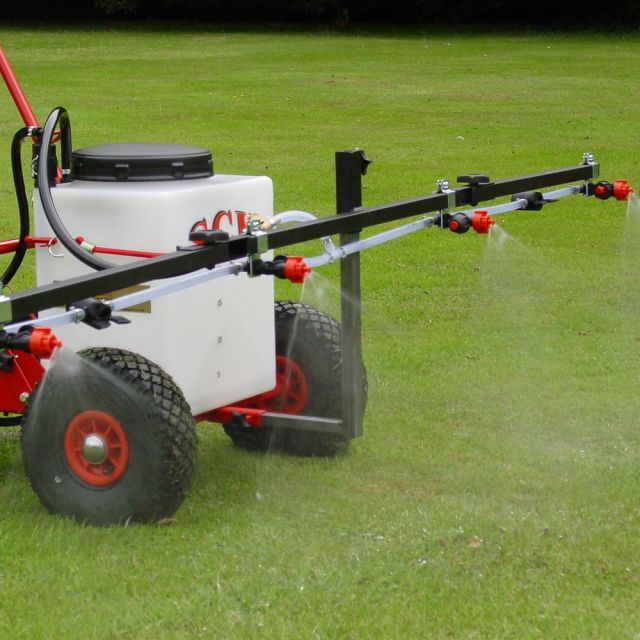

Wider spray coverage booms
Pumps up to 18lpm output can be fitted

Specification

More Information
Brand	SCH (Supplies)
Tank Capacity	30 litres
Spray Width	Up to 195mm / 36"
Maximum Pressure	2.4 bar
Pump Delivery Rate	3.8L/min
Warranty	1 year
Promotional Image	/b/r/british-built_133.jpg

Manuals

OPERATING INSTRUCTIONS

Brand

ABOUT SCH SUPPLIES.....

They say that necessity is the mother of invention – and this is certainly true of the birth of SCH (Supplies) Ltd.

Back in 1986, the late founder and former managing director Andrew Rodwell became frustrated at the lack of suitable lawn care attachments to fit to his garden tractor. Not being one to back away from a challenge, Andrew set about designing and manufacturing the attachments he wanted and started selling them to friends who had encountered the same problem.

Today SCH Supplies designs and manufactures premium garden machinery and towed lawn equipment for both domestic and commercial use. Based in the UK, the company is proud to offer a wide range of robust, British-made tools – engineered to meet the demands of estates, sports grounds, golf clubs, and equestrian centres.

Built to perform and made to last, SCH equipment is designed for versatility, durability, and ease of use. Whether you're maintaining a paddock, sweeping an arena, or keeping artificial turf in top condition, SCH has the tools you need. Our product range includes flail mowers for rough terrain and dense vegetation, paddock sweepers for effortless cleaning and grass collection, scarifying rakes and lawn dethatchers for healthy turf maintenance, water bowsers and estate waterers for efficient irrigation, chain harrows, manège levellers, and ATV sprayers for equestrian and arena upkeep, as well as grass rollers, garden carts, and custom-built equipment.

Each product is expertly crafted in SCH's UK workshop using high-quality materials and is fully supported by its nationwide service and spare parts availability.

Whether you manage a smallholding or a large estate, SCH understands that every customer’s needs are unique. Its modular and customisable equipment can be configured to suit various towing vehicles – from ride-on mowers to ATVs and compact tractors.

SCH has over 30 years of engineering excellence, a wide range of products in stock and ready to despatch, outstanding customer service and technical advice, and is proudly manufactured in the UK. SCH Supplies is trusted by groundskeepers, landscapers, and private landowners across the country.

Based in Ipswich, Suffolk, the company has grown to 20 employees who design, manufacture and deliver a vast range of products, not to mention the 'one offs'. If required, SCH will work with a customer to build a bespoke garden machine to agreed specifications.

Please Note: Due to the nature of this specialist equipment, SCH Supplies builds its products to order and prefers to deliver using its own transport, which is why we quote an extended lead time.
