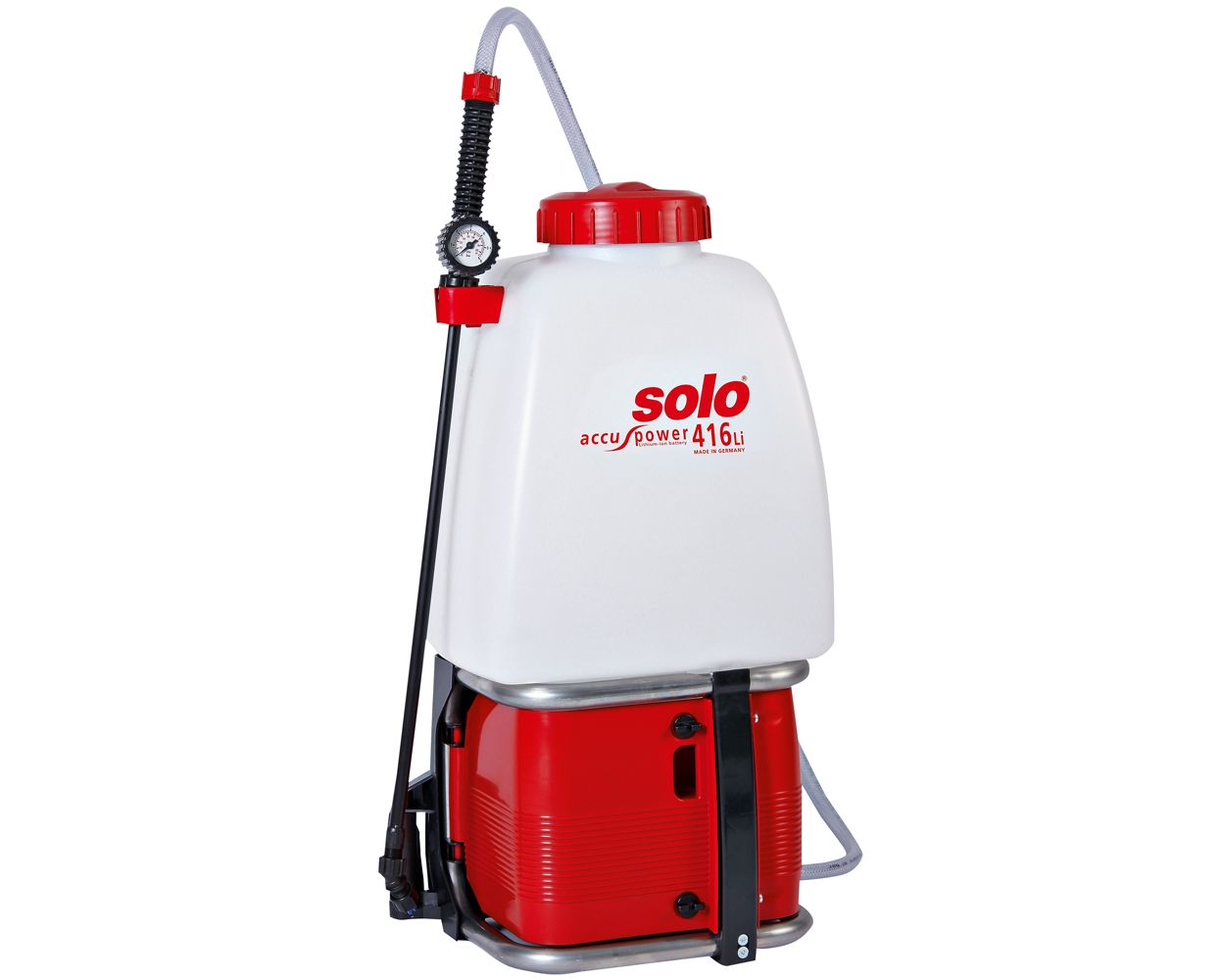

Solo 416 Li 20 Litre Battery-Operated Backpack Sprayer

Description

The battery-operated backpack sprayer Solo 416 Li is the perfect plant protection appliance in enclosed spaces such as conservatories and greenhouses where efficient working practices and high performance are called for.

Free of emissions and super-quiet, the Solo 416 Li features a 20 litre transparent tank made from highly resilient, UV-resistant plastic. A powerful 12 volt pump, switchable to two stages with up to 4.5 bar pressure deliver both the pressure and throughput required. The spay wand is telescopic to give access to hard-to-reach applications.

The Solo 416 Li cordless sprayer, previously Solo 416, now comes with a maintenance free 11V 7.8Ah lithium-ion battery that fully charges in 5.5 hours instead of the lead-gel battery. In addition, the Solo 416 Li is equipped with a comfortable padded backpack support frame, wide padded shoulder straps, pressure gauge and wand holder.

The low dry weight of the Solo 416 Li ensures fatigue-free working, ideal for spraying pesticides, herbicides, and for general spraying.

Specification

More Information
Brand	Solo Sprayers
Tank Capacity	20 litres
Battery	Lithium-ion
Battery Voltage	11.1V
Battery Capacity	7.8Ah
Battery Runtime	Setting I: Approx 5.9h Setting II: Approx 3.7h
Battery Charger	Input operating voltage: 100-240V Frequency of operating voltage: AC 50/60Hz Rated output voltage: DC 12V
Battery Charge Time	5Ah battery: Approx 5h, 7.2Ah battery: Approx 7h
Pump	Electric, 12V
Maximum Pressure	Setting I: Approx 2.5 bar Setting II: Approx 4.3 bar
Discharge	Setting I: Approx 1.07l/min Setting II: Approx 1.42l/min
Hose Length	1500mm
Lance Length	Telescopic, 50cm-90cm
Spray Nozzle	Flat spray nozzle 03F80
Sound and Noise Data	Sound pressure level: ≤ 70dB(A) Sound power level guaranteed: ≤ 70dB(A)
Vibration Level Data	≤ 2.0m/s²
Assembled Dimensions	H: 57cm x W: 41.5cm x D: 28cm (without spray tube & pressure hose)
Weight	5.2kg
Global Trade Item Number	4015966416013
Warranty	2 years for domestic use
Promotional Image	no_selection

Features

Operational advantages

Compact, light and robust product
Quiet, no emission, low vibrations: also suitable for indoor applications, such as greenhouses etc.
Enormous battery capacity allows close to 6h of operation • Pressure and output volume adjustable with two-step toggle switch
High value carrying system with padded straps, back pad and waist belt

Robust design

Tubular aluminium frame and easy to open protective housing
Large volume, UV stabilised tank for small and big jobs
Large filling aperture allows quick and spill-free filling plus easy cleaning
Removable stainless steel liquid inlet strainer
Translucent tank with fill level markings

Value packed

Lithium-ion battery: compact, powerful, light
Adjustable spray wand 50-90cm •
High value, replaceable spray nozzle
Stainless steel ball valve filter prevents dripping
Practical wand holder on tank protects and saves space
High value pressure gauge with protective guard and equipped with vibration absorber
Tough fabric re-enforced hose

Manuals

Product Manual

Brand

ABOUT SOLO SPRAYERS.....

The tradition of protecting and caring for plants and plantations goes right back to the early days of the company itself. It was founded over 70 years ago in 1948, in the wine producing area around Stuttgart. The plant protection sector soon became one of the applications for the small and lightweight two-stroke engine. At the time, the fledgling business still traded under the name "Kleinmotoren GmbH". Vineyard owners in and around Stuttgart were justifiably impressed by how much easier their work became as a result of this new generation of appliances. This innovation finally made it possible for someone to work on their own, that is to say "solo". It also explains how the current brand name came into being in the early days of this family-run business. Today, the company is run by the second generation of the same family.

All that followed is closely linked to the name SOLO: mobile plant protection technology that enjoys the best of reputations – all around the world, be it in German gardens, the vineyards of France, cocoa plantations in Africa, cotton fields in Asia and coffee plantations in South America. SOLO appliances are also used to disinfect larger buildings. In order to meet these diverse requirements, the range of plant protection appliances from SOLO provides everything you might need – from small, manually operated 1 litre sprayers to high performance backpack misters with large tank and powerful two-stroke engines. An extensive range of accessories rounds off SOLO plant protection appliances.

Classic, Comfort or Pro...

Whether you're an occasional user, a discerning private user or a professional, you're guaranteed to find the right product to suit your requirements in one of SOLO's three equipment lines. It goes without saying that our CLASSIC sprayers are also of the same high quality you would expect from all SOLO products. The differences are found in the equipment features and ease of use. All backpack sprayers in the COMFORT series and above are fitted as standard with FKM seals ("Viton®") in all the crucial places. Moreover, the PRO backpack sprayers feature a lightweight, telescopic spray wand and are especially comfortable to wear, preventing tiredness even after prolonged periods of use.

Battery-operated sprayers in various performance categories, a power sprayer and two power misters are lightweight and offer powerful output. Whether they use electric motors, 2-stroke SOLO engines or 4-stroke Honda engines, these tools combine high levels of performance and top quality.

In addition to sprayers and misters, the PRO series also features the 421 granulate spreader and the 468 backpack blower.
