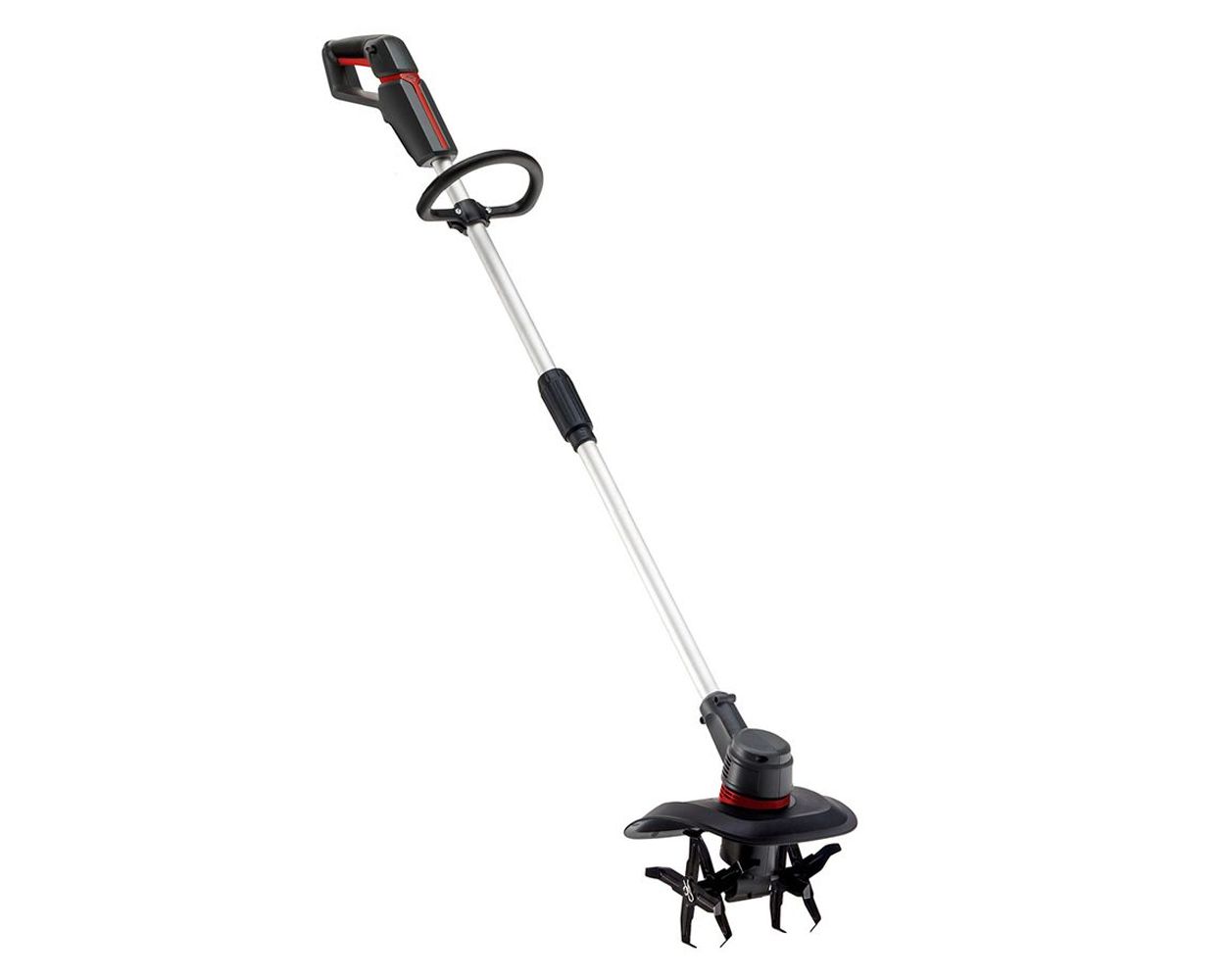

AL-KO Comfort 18V/36V TLD 1820 Cordless Tiller (Bare Tool)

Description

With the TLD 1820 cordless tiller from AL-KO's dual voltage 18V/36V battery range, you have a lightweight and emission-free helper for your vegetable garden. Crumble, loosen, and weed are just some of the tasks this tiller can handle. Its light weight ensures fatigue-free operation. The split shaft allows for quick and easy storage. Enjoy cordless freedom for safe and flexible use at any time of day.

The mini tiller is equipped with robust 4-star metal blades which loosen your vegetable garden soil and have a working width of 20cm and a blade diameter of 150mm. The blades dig up to 70mm deep into the soil. The enclosed loop handle also ensures good handling.

Various battery voltage options are available: 2.0Ah, 2.5Ah, 4.0Ah, 5.0Ah and 8.0Ah li-ion batteries all have a high energy density, are long lasting, have no memory effect, and exhibit low self-discharge. Only compatible with all AL-KO 18V and 36V devices in the "1 Battery - 2 Voltages" series.

An optional wall mount (AK114184) is also available for space-saving storage.

NB: Battery & charger NOT INCLUDED.

Specification

More Information
Brand	AL-KO
Model	114153
Kit Model No	114154
Battery Housing	Single port
Battery	Lithium-ion (not included)
Battery Voltage	18V/36V
Approx Run Time	8.0Ah/4.0Ah battery: 60 mins 5.0Ah/2.5Ah battery: 40 mins 4.0Ah/2.0Ah battery: 30 mins 2.5Ah battery: 20 mins 2.0Ah battery: 15 mins
Battery Charger	Not included
Battery Charge Time	With C40.6 Li 1A charger: 8.0Ah/4.0Ah battery: 500 mins 5.0Ah/2.5Ah battery: 310 mins 4.0Ah/2.0Ah battery: 250 mins 2.5Ah battery: 155 mins 2.0Ah battery: 125 mins
Motor	180W
Start Method	Push-button
Tines	16 (4 x 4-star metal blades)
Tilling Width	20cm
Tilling Depth	7cm
Tine Diameter	15cm
Tilling Speed	250 min-1
Shaft Type	Split
Sound and Noise Data	Sound pressure level: 61.2dB(A) (K = 3.0dB(A)) / Sound power level: 72.22dB(A) (K = 2.98dB(A))
Vibration Level Data	0.61m/s² (K = 1.5m/s²)
Assembled Dimensions	L: 152cm x W: 25.5cm x H: 30.9cm
Weight Without Battery	2.8k5g
Global Trade Item Number	4003718066692
Warranty	Manufacturer's - Domestic: 2 years / Commercial 90 days (T&Cs apply)
Promotional Image	/a/l/al-ko-18v-36v-family_9.jpg
