Product Code: OM106S/16KH-SP22111-4

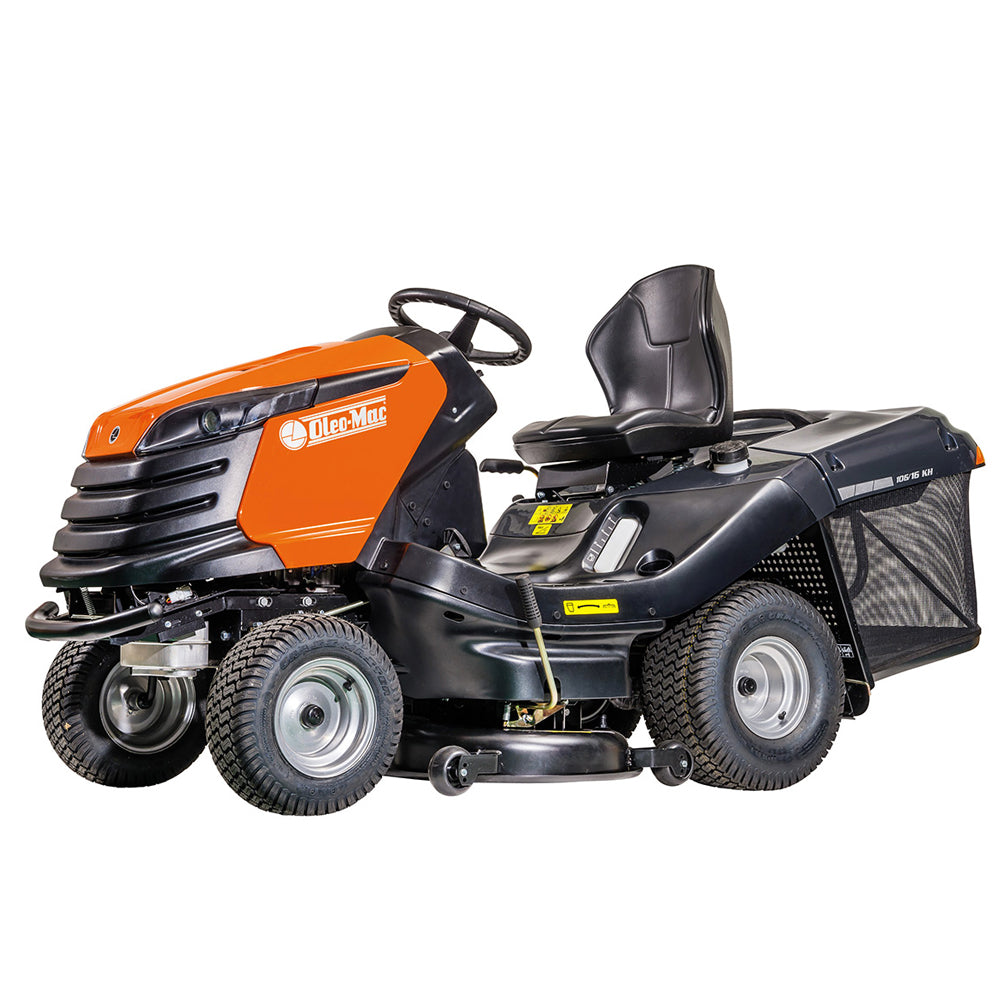

Oleo-Mac OM 106 S/16 KH Hydrostatic Rear Collect Lawn Tractor
Oleo-Mac OM 106 S/16 KH Hydrostatic Rear Collect Lawn Tractor
Get 0% interest – Find out more here
Get a £20 discount when you spend £250 or more online! Use the code 20OFF in the checkout
Hurry up, only 5 items left in stock.
- Delivery Time: Usually 5-7 working days (Monday - Friday)
5 Year Manufacturer’s Warranty
Delivery Information
UK MAINLAND
Delivery costs to most United Kingdom mainland addresses are included in the price of our garden machinery products over £100.
For orders of garden machines under £100, all hand tools including WOLF-Garten and Wilkinson Sword, accessories and parts, the cost of delivery will be calculated in your shopping basket according to the weight of the product and your postcode. Parts, accessories & hand tools will normally incur a small delivery charge of £8.50.
Additional delivery charges may apply to the following areas and this will be calculated in your shopping basket when you input your postcode:-
Isle Of Wight
Scottish Highlands
including postcodes AB31-38, AB41-45, AB51-56, FK19-21, IV1-56, KA26-28, KW1-17, PA20-88, PH1-9, PH15-44, PH49
East Coast of Scotland
including postcodes AB1-3, AB9-16, AB21-25, AB30, AB39, AB41-AB42, DD1-11, KY13, PH2, PH11-14
Whilst there is NO additional charge to deliver to the east coast of Scotland postcodes, for courier deliveries under 99kg, please allow up to two working days from date of despatch for your order to arrive.
UK OFFSHORE AREAS
We are unable to deliver our products to locations below as we cannot support them if they become faulty within the warranty period.
Scottish Islands
including postcodes HS1-9, ZE1-3
Isle of Man
Northern Ireland
Channel Islands
OVERSEAS - EUROPE AND THE REST OF THE WORLD
The Green Reaper does not offer a delivery service outside the UK.
SATURDAY DELIVERY
For an additional charge, we can arrange for orders to be delivered to UK mainland addresses by courier on a Saturday. Please visit our Contact Us page or email us at sales@thegreenreaper.co.uk to obtain a quotation.
ADDITIONAL DELIVERY INFORMATION
Whilst we can deliver to an alternative delivery address, please note that for your security, we may require proof of your relationship with the second address. This reduces the possibility of someone else using your card fraudulently. Our Sales Team will call you to arrange this with you.
Stock willing, we aim to dispatch goods within 24 hours of receiving the order, however, please allow up to seven working days for your order to arrive. You will be contacted by email if the order is likely to take any longer. Please note: SCH products are built to order and usually delivered on their own transport so we quote a longer lead time.
An order confirmation email will be sent to your registered email address as soon as you submit the order online.
Please note that additional delivery charges may only be added at time of order processing, and will not always appear in the shopping basket or order confirmation email.
Normal delivery hours are 9am – 5.30pm, Monday to Friday. For security reasons a signature is required to acknowledge receipt. If you know that there will be no one available to sign for your delivery, it may be preferrable to supply an alternative address for delivery.
If no one is available at the delivery address to sign for the goods, the delivery company will leave a calling card. You can simply call the number on the card quoting the card reference number to re-arrange delivery at a more suitable time. Alternatively, you may prefer to collect the goods from your local depot. If you are unable to take delivery and the item is subsequently returned to us, the customer is liable for the cost of returning the goods.
ORDER TRACKING
How to track your parcel
If you choose to register with The Green Reaper, you will receive a member registration email containing your login details. When you place an order, you will receive an email confirmation of your order. You can login to your account at any time to check the status of your order - i.e. if it has been processed and despatched, etc. To login simply enter your email address and the password provided to track your order or edit your details.
If you have any questions regarding your order, please contact us using the contact form on our website. As soon as your goods are despatched, we will notify you by email the method of despatch, together with consignment details, where relevant. We will provide you with a link to our preferred courier's website so you can track your order's progress online.
If you have any further enquiries, please use the contact us form on the footer of our website.
DISCLAIMER
We work closely with our carriers to ensure the best possible service and delivery times, however, some delays may occur which are outside our control.
Flexible Finance Options
Spread the cost of your new appliance with our payment options. Choose from the options below at checkout and tailor your payments to your needs.
Description
Description
Specification
Specification
| Brand | Oleo-Mac |
| Recommended Lawn Area | < 7,000m² |
| Engine Make | Emak |
| Engine Model | K 1600 AVD |
| Engine Type | 4-stroke petrol OHV |
| Engine Cylinders | Single |
| Engine Displacement (cc) | 452 |
| Horsepower | 16hp |
| Battery Charger | Optional: 68130481 |
| Start Method | Electric key |
| Transmission Type - Filter | Hydrostatic |
| Transmission | Foot-pedal operated |
| Drive Type | Rear wheel |
| Speeds | Forward: 0-9.0km/h Reverse: 0-4.5km/h |
| Turning Circle | 40cm |
| Cutting System | Cut & collect |
| Width of Cut | 102cm / 40" |
| Deck Type | Steel |
| Blades | 2 |
| Blade Engagement | Electric PTO |
| Minimum Cutting Height (mm) | 30 |
| Maximum Cutting Height (mm) | 95 |

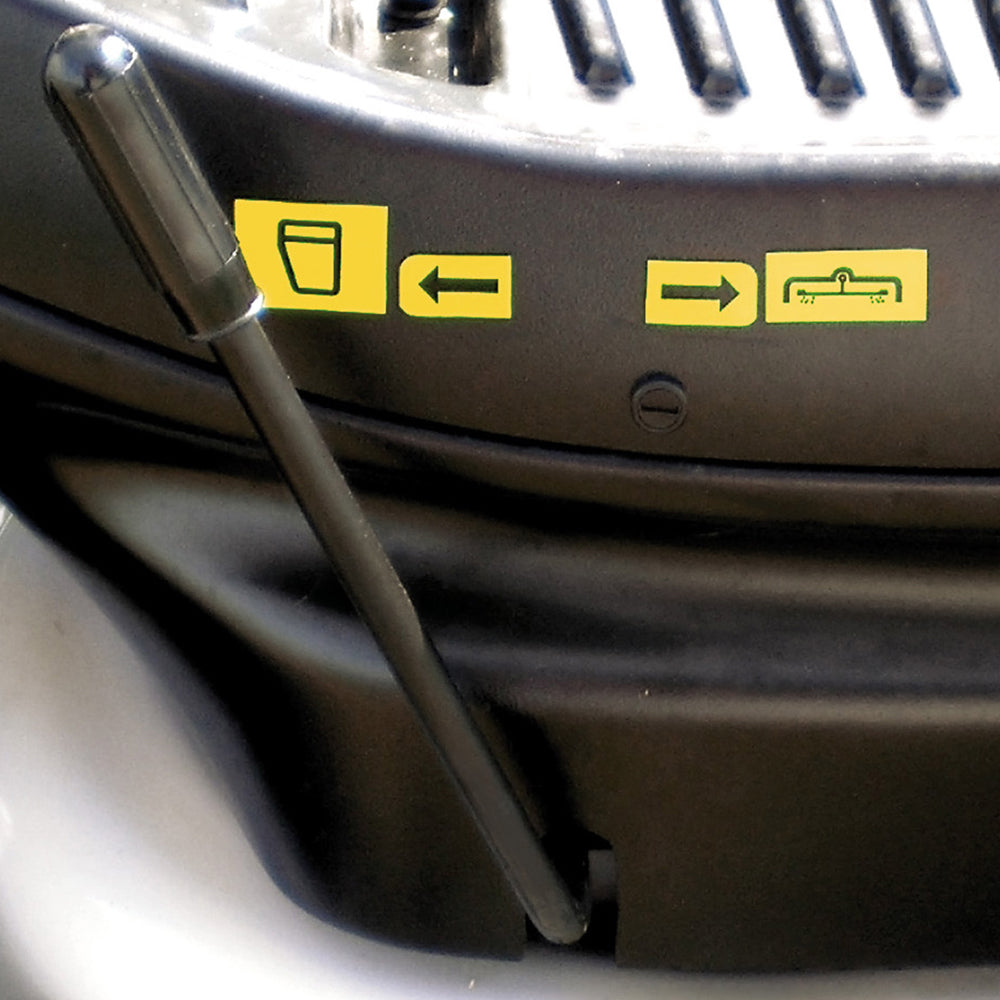

| Cutting Height Adjustment | Single lever, 7 positions |
| Anti-Scalp Deck Wheels | 4 |
| Deck Wash Nozzle | Standard |
| Collector Capacity (L) | 320 |
| Bag Full Indicator | Yes, with acoustic signal |
| Collector Emptying | From seat |
| Mulch Kit | Optional accessory: 6812008A |
| Rear Deflector | Optional accessory: 68120003 |
| Deflector | 11 |
| Side Discharge | N/A |
| Front Bumper | Yes |
| Headlights | Yes |
| Seat | High-back, adjustable |
| Assembled Dimensions | L: 242cm x W: 106cm x H: 116cm |
| Weight (kg) | 272 |
| Warranty | Machine: 5 years for domestic use - 2 years from date of purchase + a further 3 years limited warranty subect to registration, reasonable homeowner use and annual servicing by an approved Oleo-Mac dealer Engine: 5 years for domestic use (T&Cs apply) |
Manuals
Manuals
Brand
Brand
ABOUT OLEO-MAC.....
Gardening, farming and forestry tools for home users and professionals. Oleo-Mac covers all shades of green.
With different models to meet each user’s needs but all sharing the same exceptional quality standards in terms of performance, reliability, comfort and safety. The accessories range is offered as an extension and completion of the product range. Ergonomics, quality and styling are essential ingredients of the development of Oleo-Mac’s products: primarily designed to meet the needs of professionals whilst also taking care of the requirements of less expert users who insist on the very best.
A truly comprehensive range of superb quality products at highly competitive prices – that’s the Oleo-Mac formula.
The Italian Oleo-Mac brand is distributed by The Emak Group which is active in the development, production and worldwide sale of an extensive range of products for three business segments:
Outdoor Power Equipment
- Products for gardening, forestry and agriculture, including brushcutters, law mowers, garden tractors, chainsaws, rotary tillers and rotary cultivators.
Pumps and High Pressure Water Jetting
- Products for agriculture, including centrifugal and diaphragm pumps for crop spraying and weed control;
- Products for industry, including pumps for industrial applications and high and very-high pressure systems;
- Products for cleaning, namely professional and semi-professional high-pressure washers, floor scrubber-dryers and vacuum sweepers.
Components and Accessories
- Products such as strimmer line and line heads for brushcutters, accessories for chainsaws, guns, valves and nozzles for high-pressure washers and for agricultural applications, plus precision farming products (sensors and computers).
|
|
|
| A range of machines aimed at the home user, for tidying and cleaning the garden, cutting hedges and small trunks or stems, and DIY jobs in general. Characterized by lightweight and compact construction, to make the task of the operator that much simpler. Easy to start, easy to use, easy to maintain: these are the ideal tools for getting things done quickly and neatly around the home. | Solid and dependable, these are machines designed for heavy and frequent use in countryside environments: clearing overgrown and uncultivated areas, pruning and cutting firewood, crop irrigation and disinfestation tasks. Designed adopting solutions certain to ensure high work rates and maximum durability over time. | No-nonsense everyday tools for the busy professional, these are machines that stand out for the toughness of their components, their high performance and their matchless long-term durability. Specific materials used in construction guarantee unwavering quality even when tackling the most severe and lengthy of tasks, like forestry work and the clearance of uncultivated areas or scrub and undergrowth. |
Delivery Information
Delivery Information
White Glove Delivery Service
Ready Steady Go!
Fully Assembled
Your machine will be fully assembled for you.
Pre-Delivery Inspection
We will complete a PDI in compliance with the manufacturer's guidelines.
Tried and Tested
Your machine will be fuelled, oiled, run and workshop tested to ensure it is in perfect working order.
Personal Delivery
Wherever possible, your machine will be delivered to your garden on our own transport.
Full Working Handover
You will receive a full working handover by a trained member of The Green Reaper so you can start work straightaway. For Greater Distances
The machine is cable tied to a pallet and shrink-wrapped into a cocoon. Our transport partner will then deliver the machine on a tail-lift lorry on an agreed working weekday. You simply unwrap the pallet, cut the cable ties and you're ready to go.
