Product Code: 5908801903

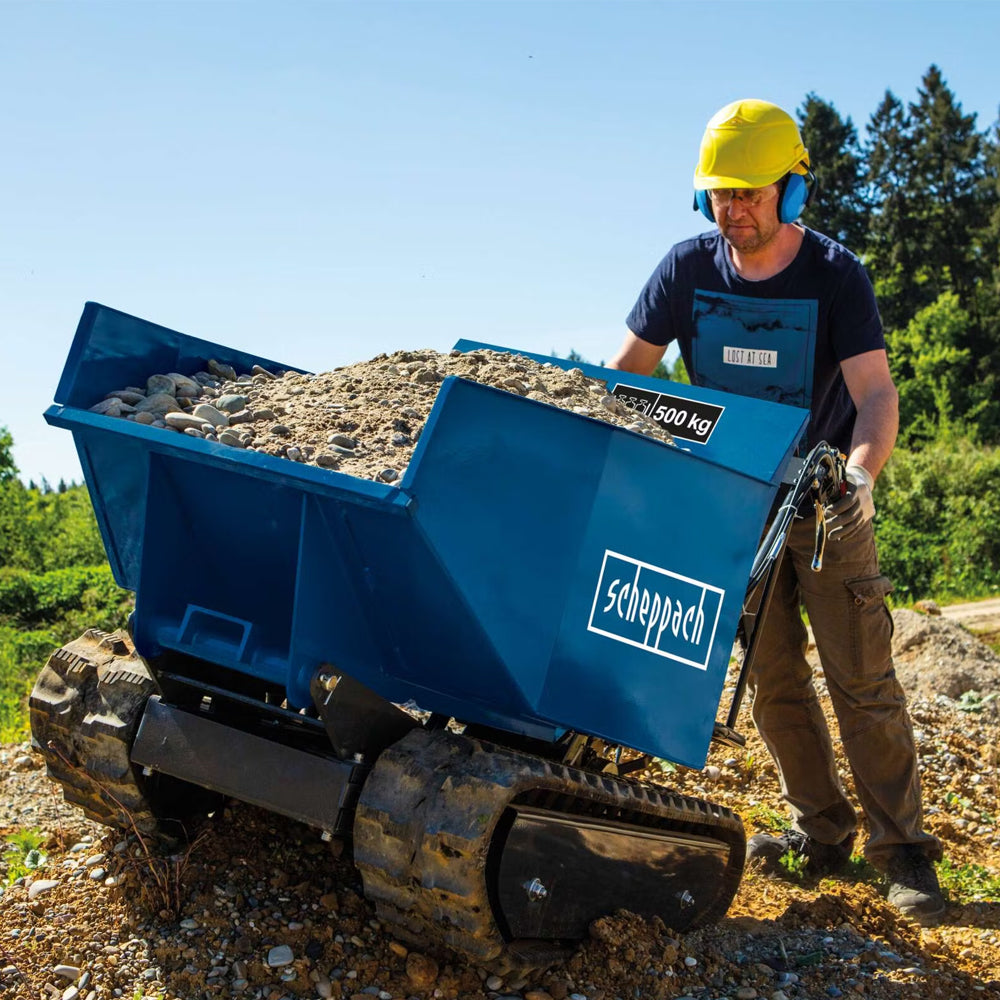

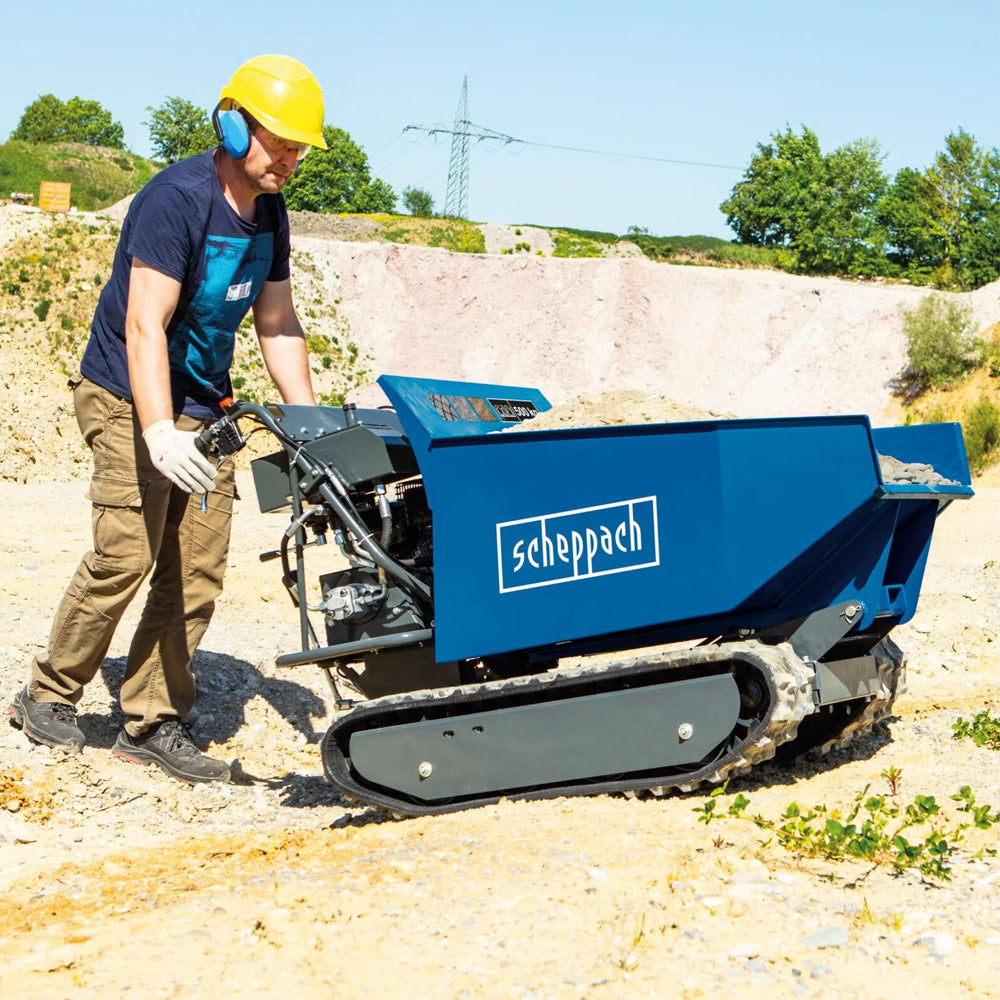

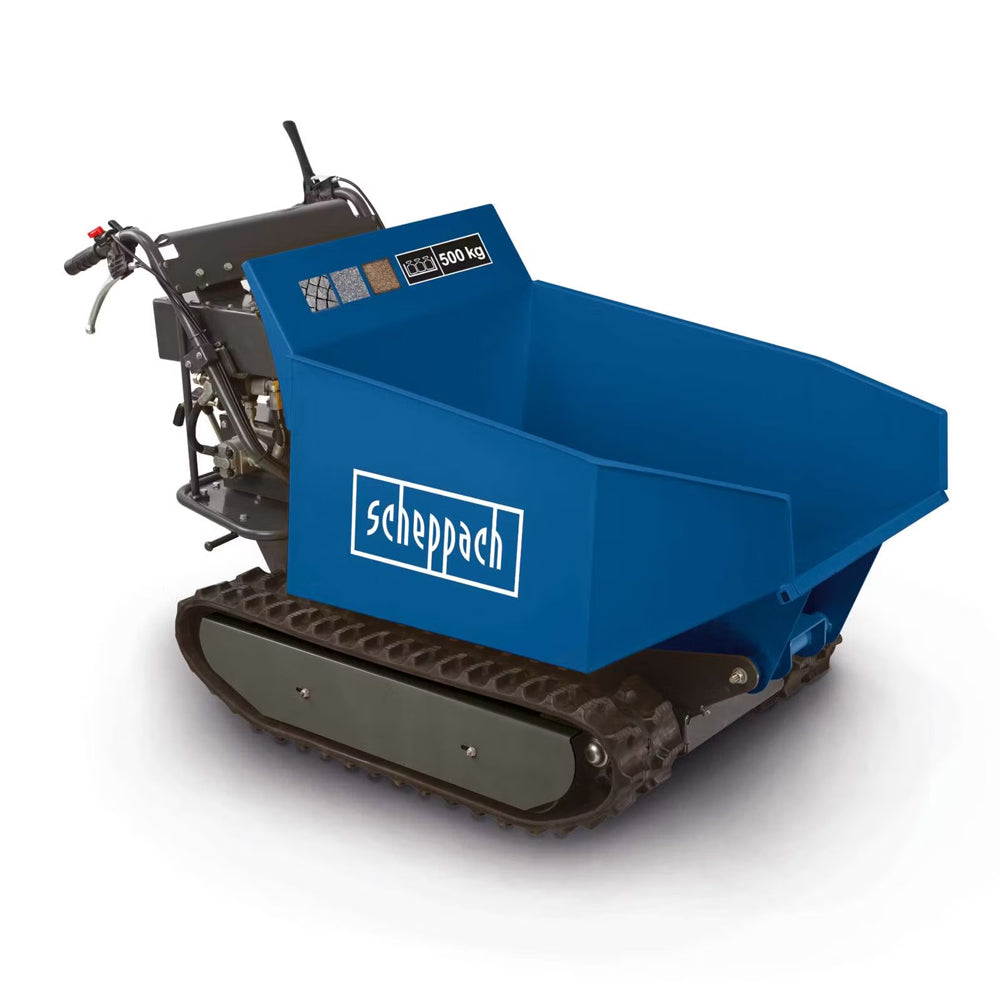

Scheppach DP5000 500kg Tracked Power Barrow / Dumper
Scheppach DP5000 500kg Tracked Power Barrow / Dumper
Get 0% interest – Find out more here
Get a ยฃ20 discount when you spend ยฃ250 or more online! Use the code 20OFF in the checkout
Hurry up, only 6 items left in stock.
- Freight Delivery Usually 2-5 Working Days (Monday - Friday)
2 Year Manufacturerโs Warranty
Delivery Information
UK MAINLAND
Delivery costs to most United Kingdom mainland addresses are included in the price of our garden machinery products over ยฃ100.
For orders of garden machines under ยฃ100, all hand tools including WOLF-Garten and Wilkinson Sword, accessories and parts, the cost of delivery will be calculated in your shopping basket according to the weight of the product and your postcode. Parts, accessories & hand tools will normally incur a small delivery charge of ยฃ8.50.
Additional delivery charges may apply to the following areas and this will be calculated in your shopping basket when you input your postcode:- ย ย
Isle Of Wight
Scottish Highlands
including postcodes AB31-38, AB41-45, AB51-56, FK19-21, IV1-56, KA26-28, KW1-17, PA20-88, PH1-9, PH15-44, PH49
East Coast of Scotland
including postcodes AB1-3, AB9-16, AB21-25, AB30, AB39, AB41-AB42, DD1-11, KY13, PH2, PH11-14
Whilst there is NO additional charge to deliver to the east coast of Scotland postcodes, for courier deliveries under 99kg, please allow up to two working days from date of despatch for your order to arrive.ย
UK OFFSHORE AREAS
We are unable to deliver our products to locations below as we cannot support them if they become faulty within the warranty period.
Scottish Islands
including postcodes HS1-9, ZE1-3
Isle of Man
Northern Ireland
Channel Islands
OVERSEAS - EUROPE AND THE REST OF THE WORLD
The Green Reaper does not offer a delivery service outside the UK.ย
SATURDAY DELIVERY
For an additional charge, we can arrange for orders to be delivered to UK mainland addresses by courier on a Saturday. Please visit our Contact Us page or email us at sales@thegreenreaper.co.ukย to obtain a quotation.
ADDITIONAL DELIVERY INFORMATION
Whilst we can deliver to an alternative delivery address, please note that for your security, we may require proof of your relationship with the second address. This reduces the possibility of someone else using your card fraudulently. Our Sales Team will call you to arrange this with you.
Stock willing, we aim to dispatch goods within 24 hours of receiving the order, however, please allow up to seven working days for your order to arrive. You will be contacted by email if the order is likely to take any longer. Please note: SCH products are built to order and usually delivered on their own transport so we quote a longer lead time.
An order confirmation email will be sent to your registered email address as soon as you submit the order online.
Please note that additional delivery charges may only be added at time of order processing, and will not always appear in the shopping basket or order confirmation email.
Normal delivery hours are 9am โ 5.30pm, Monday to Friday. For security reasons a signature is required to acknowledge receipt. If you know that there will be no one available to sign for your delivery, it may be preferrable to supply an alternative address for delivery.
If no one is available at the delivery address to sign for the goods, the delivery company will leave a calling card. You can simply call the number on the card quoting the card reference number to re-arrange delivery at a more suitable time. Alternatively, you may prefer to collect the goods from your local depot. If you are unable to take delivery and the item is subsequently returned to us, the customer is liable for the cost of returning the goods.
ORDER TRACKING
How to track your parcelย
If you choose to register with The Green Reaper, you will receive a member registration email containing your login details.ย When you placeย an order, you will receive an email confirmation of your order. You can login to your account at any time toย check the status of your order - i.e. if it has been processed and despatched, etc. To login simply enter your email address and the password provided to track your order or edit your details.ย
If you have any questions regarding your order, please contact us using the contact form on our website.ย As soon as your goods are despatched, we will notify you by email the method of despatch, together with consignment details, where relevant. We will provide you with a link to our preferred courier's website so you can track your order's progress online.
If you have any further enquiries, please use the contact us form on the footer of our website. ย
DISCLAIMER
We work closely with our carriers to ensure the best possible service and delivery times, however, some delays may occur which are outside our control.
Flexible Finance Options
Spread the cost of your new appliance with our payment options. Choose from the options below at checkout and tailor your payments to your needs.
Description
Description
Specification
Specification
| Brand | Scheppach |
| Capacity | 500kg |

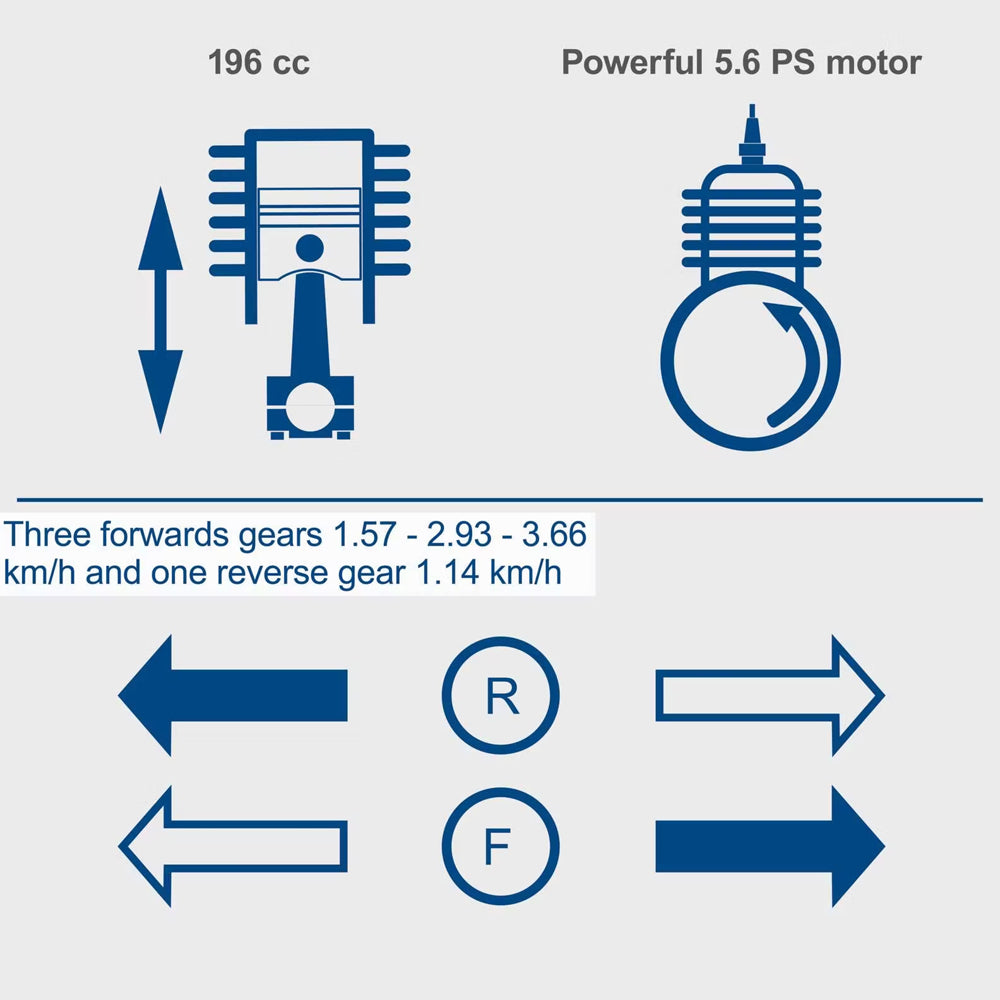

| Engine Type | 4-stroke petrol, OHV, single cylinder |
| Start Method | Recoil |
| Engine Displacementย | 196cc |
| Horsepower | 5.6hp |
| Net Rated Power Output | 4.1kW @ 3600rpm |
| Fuel | Unleaded petrol |
| Fuel Tank Capacity | 3.6L |
| Engine Oil Type | SAE 10W-30 / SAE 10W-40 |
| Engine Oil Capacity | 0.6L |
| Transmission | Manual, 3 forward + 1 reverse gear |
| Gearbox Oil | 1.2L, 75W-90 |
| Speeds | Forward: 1.57km/h, 2.93km/h, 3.66km/h Reverse: 1.14km/h |
| Drive Type | Track, chain drive |
| Maximum Operating Gradient | Actual: 20-30ยฐ Certification Standard: 10ยฐ |
| Bed Size | L: 95cm x W: 68cm x H: 46.5cm |
| Bed Capacity | 417L |
| Tipping | Yes, hydraulic |
| Hydraulic Pressure | 11MPa |
| Hydraulic Oil | 4.3L, HLP22/HLP32 |
| Cylinder Riser | 20cm |
| Chassis | Stainless Steel |
| Handle Height | 86.5cm |
| Handle Distance | 56.2cm |
| Sound and Noise Data | Sound Pressure Level: 92dB(A) k=3dB(A)ย Sound Power Level: 101dB(A) k=2.2B(A)ย ย |
| Vibration Level Dataย | Left hand: 10.1m/sยฒ Right hand: 11.3m/sยฒ |
| COยฒ ย Output | 811.46g/kWh |

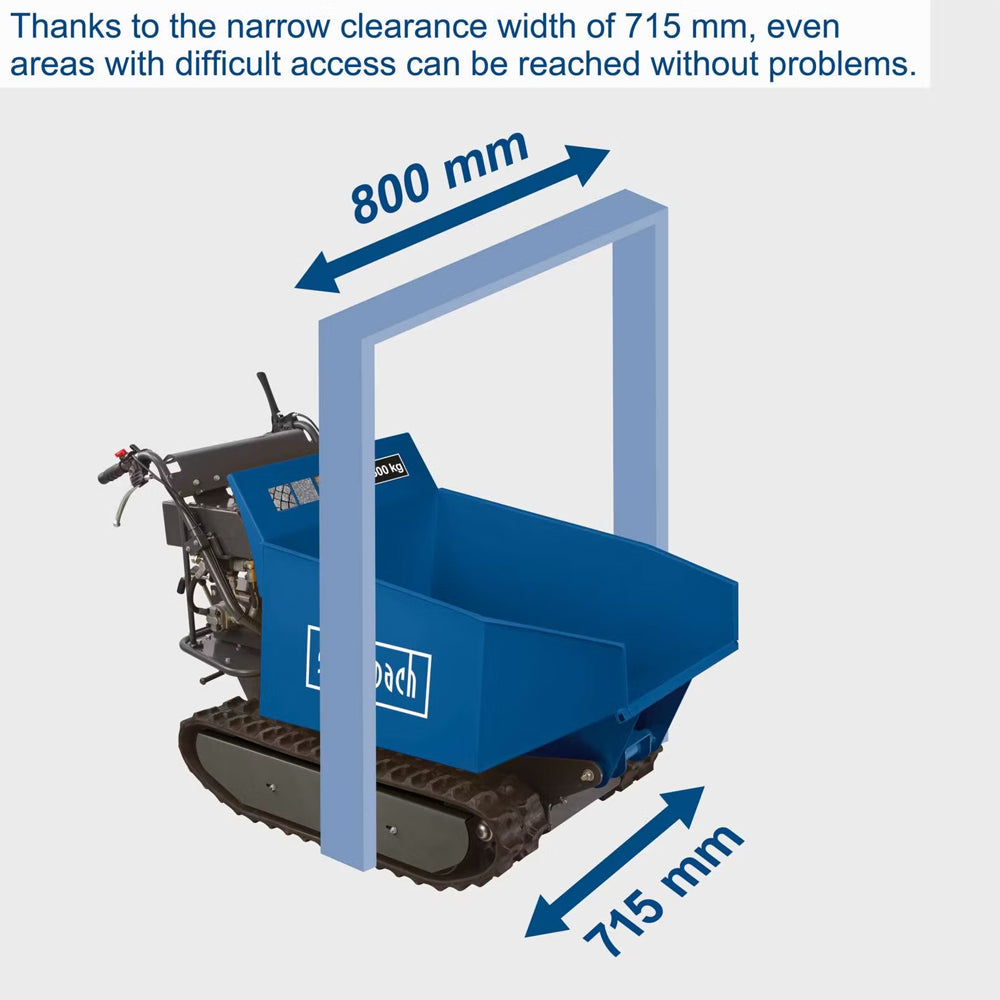

| Assembled Dimensions | L: 153cm x W: 71cm x H: 105cm |
| Weightย | Net: 254kg Gross: 297kg |
| Warranty | 2 year manufacturer's for domestic use |
Features
Features

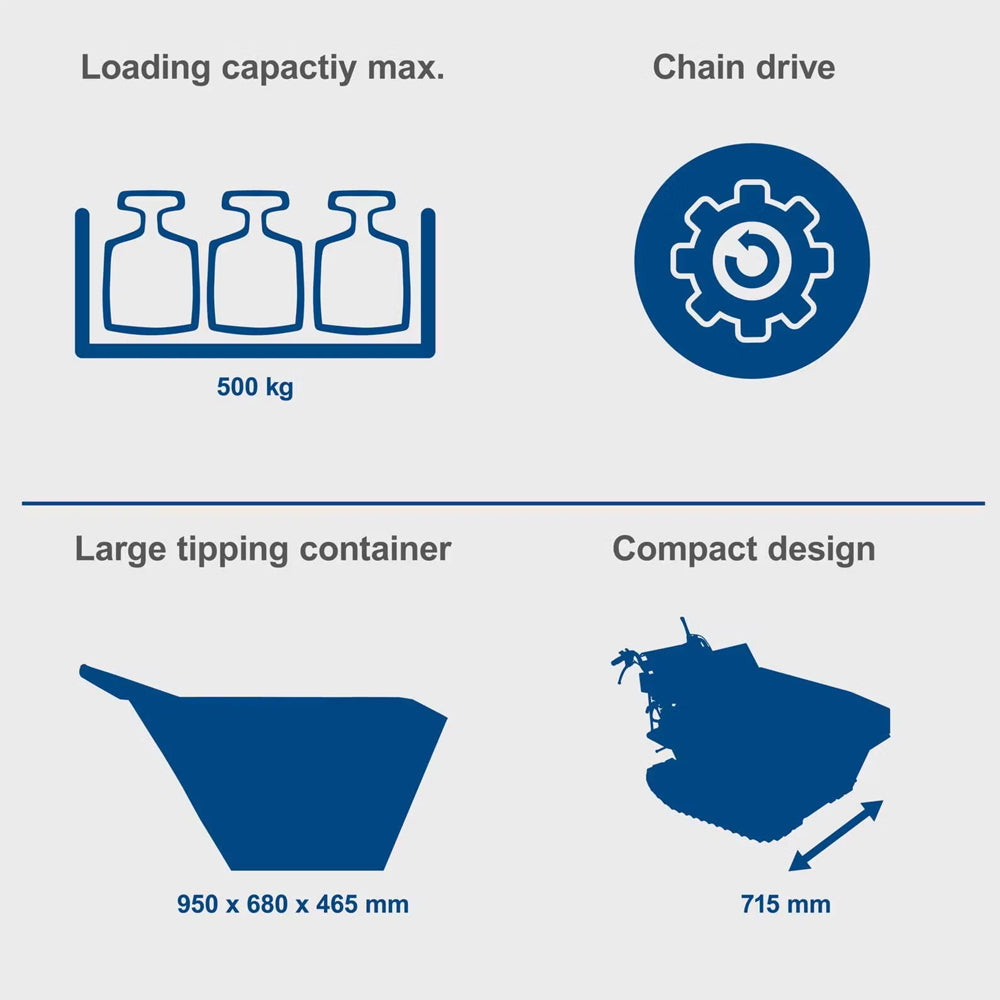

- 500kg Payload Capacity: Easily transport heavy materials around construction, landscaping and agricultural sites.

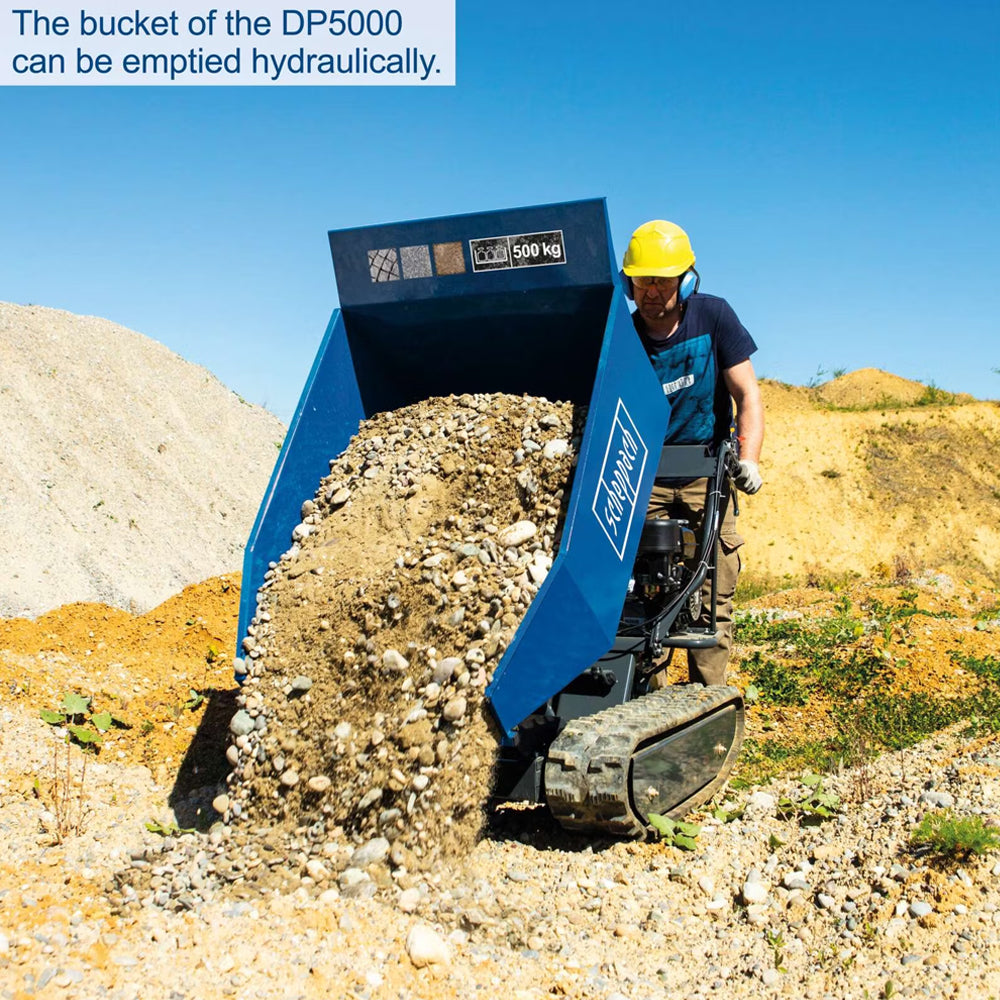

- Hydraulic Tipping System: Simplifies unloading and reduces physical effort when emptying the container.
- 300L Tipping Container: Large capacity container suitable for loose and solid transport materials.
- Chain Drive Traction: Delivers excellent grip and stability on difficult terrain and challenging surfaces.
- Multi-Speed Transmission: Three forward gears and one reverse gear provide excellent manoeuvrability and control.
Manuals
Manuals
Brand
Brand
ABOUT SCHEPPACH......
Scheppach is a German company founded in 1927 by Josef Scheppach, once known for its agricultural machines, firewood circular saws, and other woodworking tools. Josef Scheppach founded the company in Niederraunau, Germany, during the Weimar Republic era, when the economic conditions were challenging. He started by manufacturing firewood circular saws, malt mills, and providing repairs for agricultural machines.ย
Scheppach has maintained a presence in the industry for decades and has gained recognition for its quality tools and machinery. It has continued to innovate and adapt to changing market demands. Over the years, Scheppach's commitment to producing quality tools and equipment, coupled with its ability to adapt to changing market demands, has contributed to its growth and worldwide recognition.
Throughout the mid-late 1900s, Scheppach went from strength to strength after moving from Krumback, Niederraunau to a new location in Ichenhausen in 1961. By the mid-70s, Scheppach departed from the area of agricultural machinery and focussed on developing and producing woodworking machines. By honing in on woodworking machines, Scheppach was able to establish itself as a specialist in this niche segment and expand its product range to include a variety of machines and accessories catering to woodworking enthusiasts, professionals, and industries.
The journey from a small workshop in Niederraunau to becoming one of the largest companies in the sector is a testament to the company's ability to evolve, expand, and meet the needs of its customers. It's a story of entrepreneurship, resilience, and adaptability that highlights how businesses can thrive and make a lasting impact over time.
Expanding the product range, in 2009-10, to include construction machinery and heavy trade equipment by introducing plate vibrators, concrete mixers, hand-held agitators, dumpers, demolition equipment and battery-powered devices, Scheppach extended its offerings beyond woodworking and entered the construction equipment market.
Since 2014, the range of gardening machinery and tools has grown continuously to become a permanent part of Scheppachโs portfolio. Scheppach is now one of the fastest growing companies in Germany and Europe, a job motor for the region and one of the leading companies in this sector.
In 2024 Scheppach established its British headquarters in Edinburgh, Scotland, marking a significant expansion of the global German tool brand's international footprint.
Browse the Scheppach catalogues below:-
 |
|
 |
 |
