Product Code: 5915001903

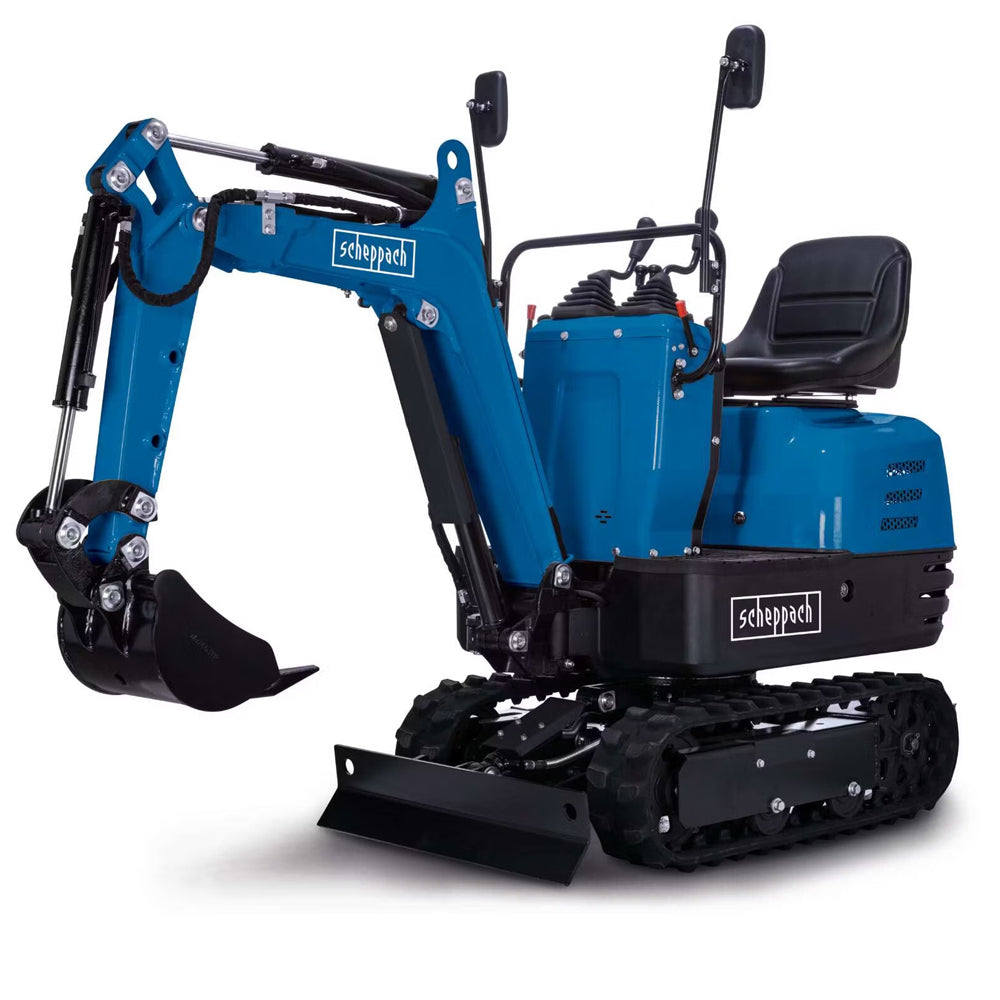

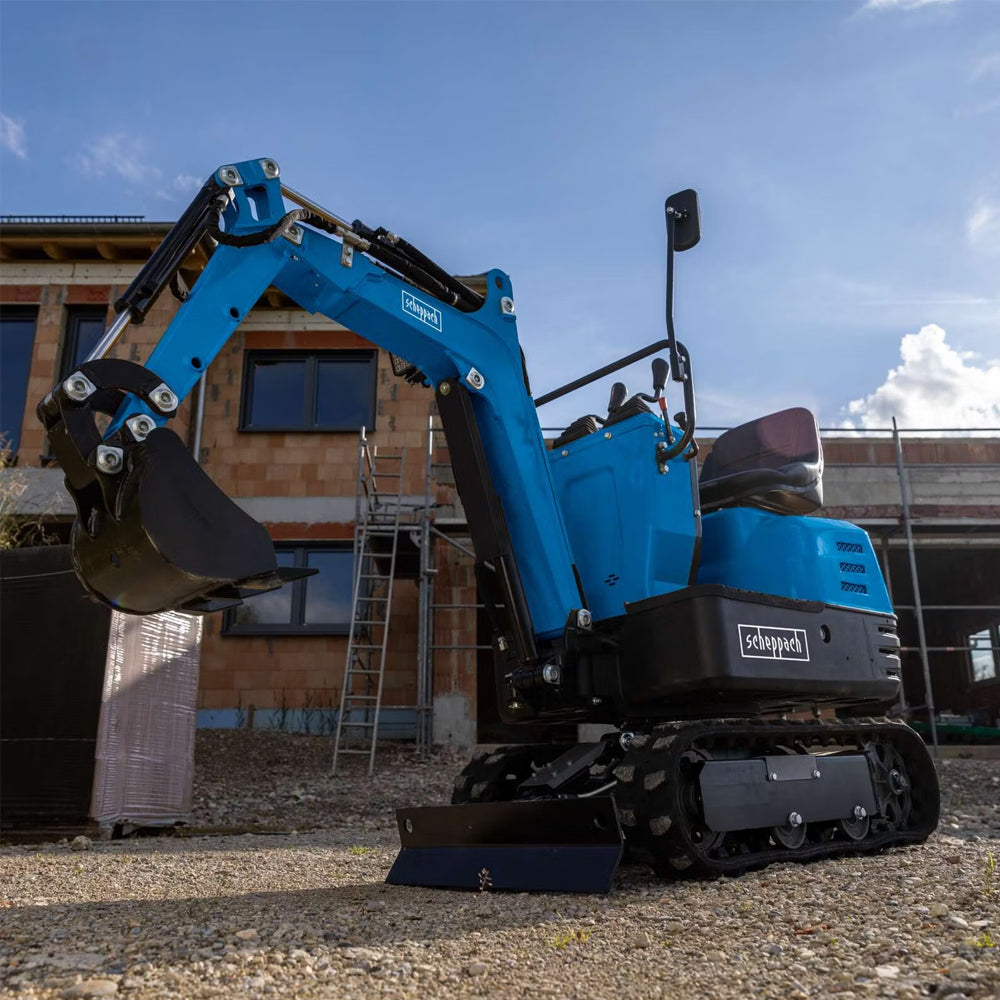

Scheppach EXC815 Mini Excavator
Scheppach EXC815 Mini Excavator
Get 0% interest – Find out more here
Get a £20 discount when you spend £250 or more online! Use the code 20OFF in the checkout
Available in stock (12)
- Freight Delivery Usually 2-5 Working Days (Monday - Friday)
2 Year Manufacturer’s Warranty
Delivery Information
UK MAINLAND
Delivery costs to most United Kingdom mainland addresses are included in the price of our garden machinery products over £100.
For orders of garden machines under £100, all hand tools including WOLF-Garten and Wilkinson Sword, accessories and parts, the cost of delivery will be calculated in your shopping basket according to the weight of the product and your postcode. Parts, accessories & hand tools will normally incur a small delivery charge of £8.50.
Additional delivery charges may apply to the following areas and this will be calculated in your shopping basket when you input your postcode:-
Isle Of Wight
Scottish Highlands
including postcodes AB31-38, AB41-45, AB51-56, FK19-21, IV1-56, KA26-28, KW1-17, PA20-88, PH1-9, PH15-44, PH49
East Coast of Scotland
including postcodes AB1-3, AB9-16, AB21-25, AB30, AB39, AB41-AB42, DD1-11, KY13, PH2, PH11-14
Whilst there is NO additional charge to deliver to the east coast of Scotland postcodes, for courier deliveries under 99kg, please allow up to two working days from date of despatch for your order to arrive.
UK OFFSHORE AREAS
We are unable to deliver our products to locations below as we cannot support them if they become faulty within the warranty period.
Scottish Islands
including postcodes HS1-9, ZE1-3
Isle of Man
Northern Ireland
Channel Islands
OVERSEAS - EUROPE AND THE REST OF THE WORLD
The Green Reaper does not offer a delivery service outside the UK.
SATURDAY DELIVERY
For an additional charge, we can arrange for orders to be delivered to UK mainland addresses by courier on a Saturday. Please visit our Contact Us page or email us at sales@thegreenreaper.co.uk to obtain a quotation.
ADDITIONAL DELIVERY INFORMATION
Whilst we can deliver to an alternative delivery address, please note that for your security, we may require proof of your relationship with the second address. This reduces the possibility of someone else using your card fraudulently. Our Sales Team will call you to arrange this with you.
Stock willing, we aim to dispatch goods within 24 hours of receiving the order, however, please allow up to seven working days for your order to arrive. You will be contacted by email if the order is likely to take any longer. Please note: SCH products are built to order and usually delivered on their own transport so we quote a longer lead time.
An order confirmation email will be sent to your registered email address as soon as you submit the order online.
Please note that additional delivery charges may only be added at time of order processing, and will not always appear in the shopping basket or order confirmation email.
Normal delivery hours are 9am – 5.30pm, Monday to Friday. For security reasons a signature is required to acknowledge receipt. If you know that there will be no one available to sign for your delivery, it may be preferrable to supply an alternative address for delivery.
If no one is available at the delivery address to sign for the goods, the delivery company will leave a calling card. You can simply call the number on the card quoting the card reference number to re-arrange delivery at a more suitable time. Alternatively, you may prefer to collect the goods from your local depot. If you are unable to take delivery and the item is subsequently returned to us, the customer is liable for the cost of returning the goods.
ORDER TRACKING
How to track your parcel
If you choose to register with The Green Reaper, you will receive a member registration email containing your login details. When you place an order, you will receive an email confirmation of your order. You can login to your account at any time to check the status of your order - i.e. if it has been processed and despatched, etc. To login simply enter your email address and the password provided to track your order or edit your details.
If you have any questions regarding your order, please contact us using the contact form on our website. As soon as your goods are despatched, we will notify you by email the method of despatch, together with consignment details, where relevant. We will provide you with a link to our preferred courier's website so you can track your order's progress online.
If you have any further enquiries, please use the contact us form on the footer of our website.
DISCLAIMER
We work closely with our carriers to ensure the best possible service and delivery times, however, some delays may occur which are outside our control.
Flexible Finance Options
Spread the cost of your new appliance with our payment options. Choose from the options below at checkout and tailor your payments to your needs.
Description
Description
Specification
Specification
| Brand | Scheppach |

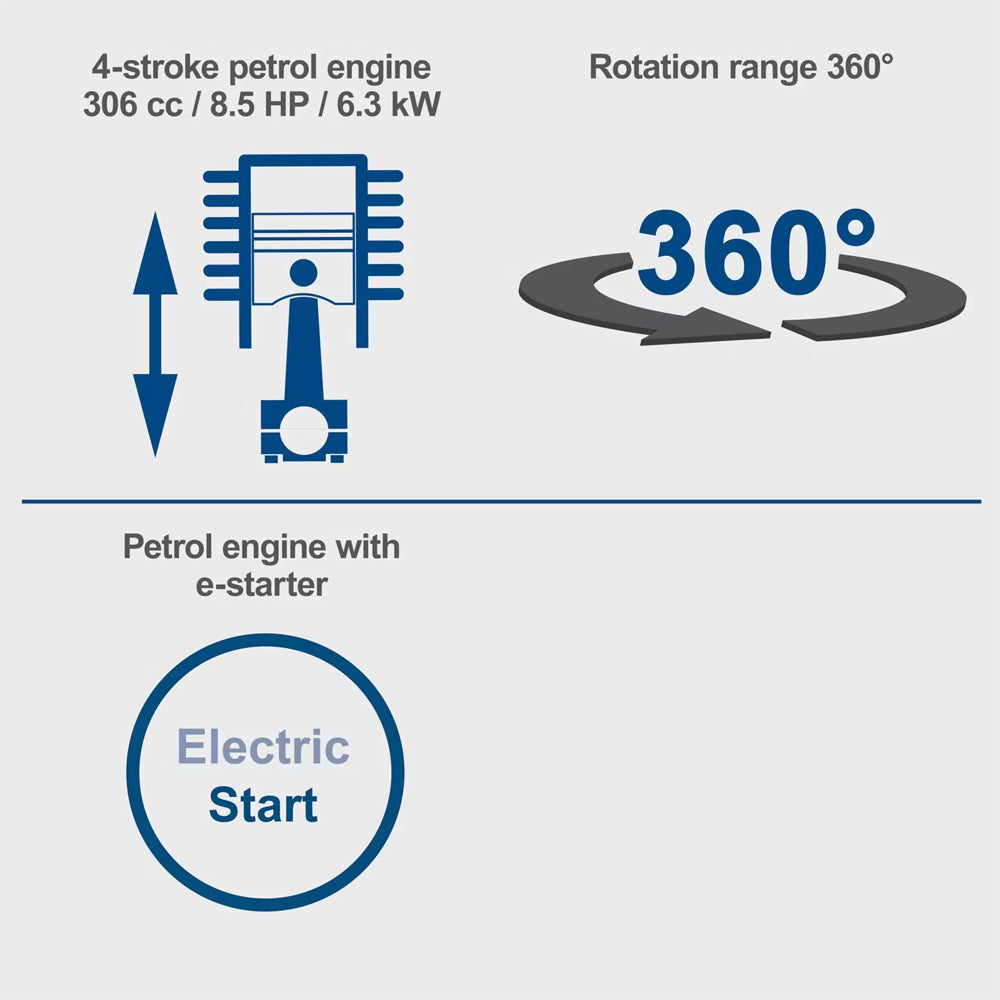

| Engine Type | 4-stroke petrol |
| Start Method | Electric |
| Operating Lever Lock | Mechanical |
| Engine Displacement | 306cc |
| Horsepower | 8.5hp |
| Net Rated Power Output | 6.3kW @ 3600rpm |
| Idle Speed | Engine: 1800 1/min Tolerance: 200 1/min |
| Fuel | Unleaded petrol |
| Fuel Tank Capacity | 6.0L |
| Engine Oil Type | SAE 10W-30 / SAE 10W-40 |
| Engine Oil Capacity | 1.1L |

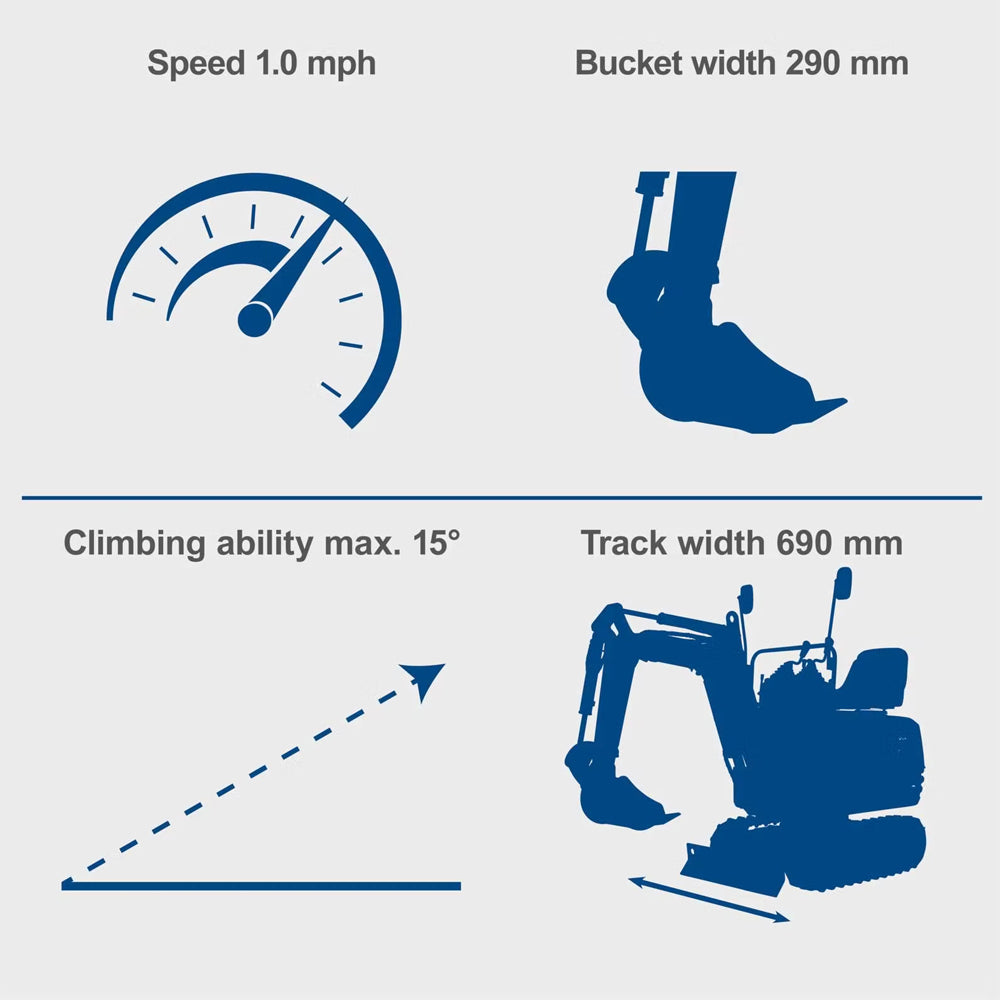

| Travelling Speed | 1.7km/h |

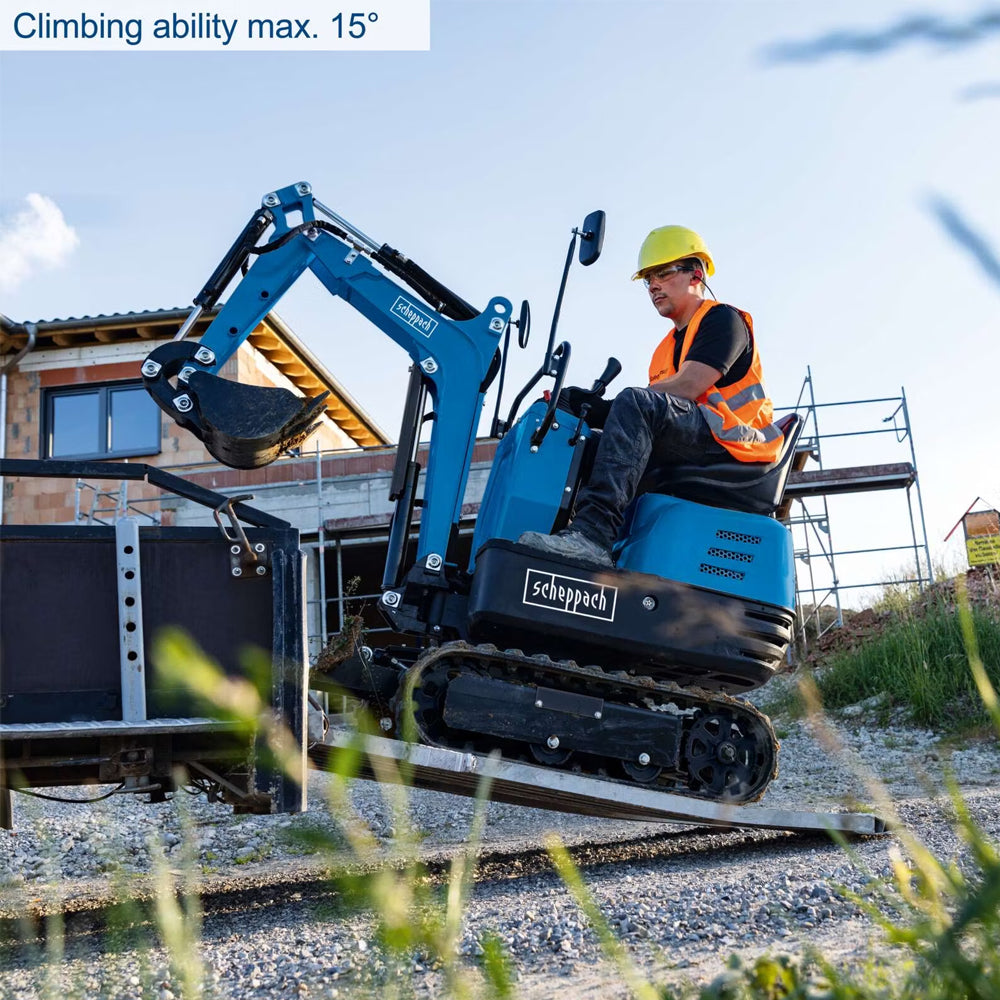

| Climbing Ability | 15° |
| Swivelling Speed | 9.3 1/min |
| Rotation Range | 360 ° |
| Drive Type | Chain |
| Caterpillar Links | Rubber tracks |

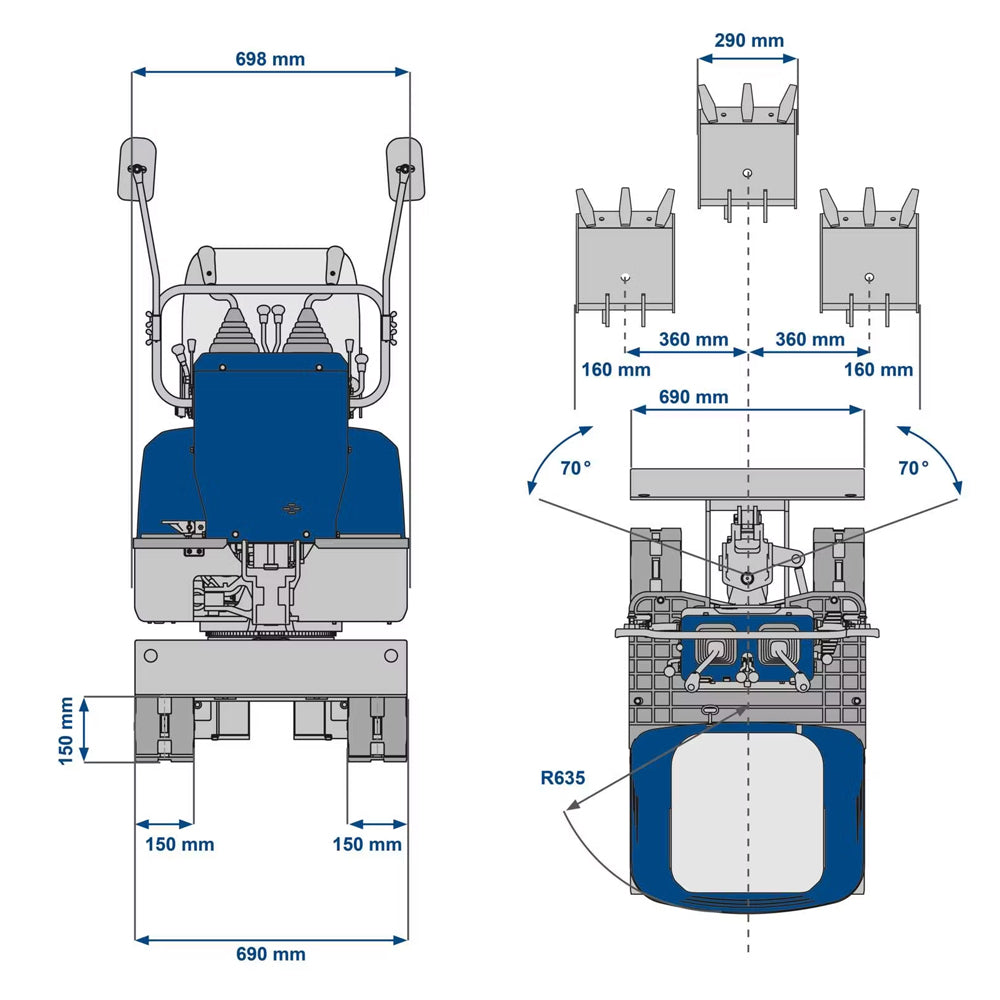

| Track Width | 690mm |
| Track Diameter | 150mm |
| Operating Weight | 637kg |

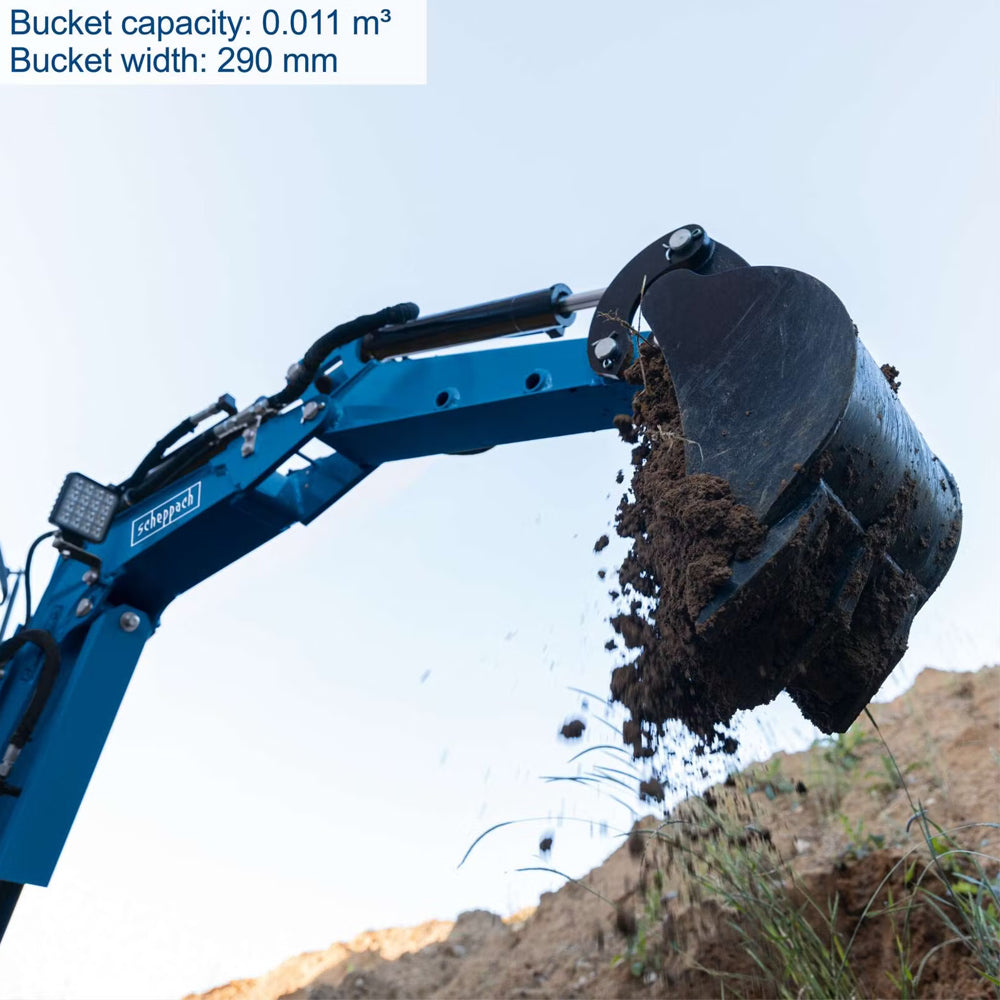

| Standard Bucket Capacity | 0.011m² |
| Standard Bucket Width | 290mm |
| Digging Force |
Arm: 4.2kN |
| Ground Contact Pressure |
26.5kPA |

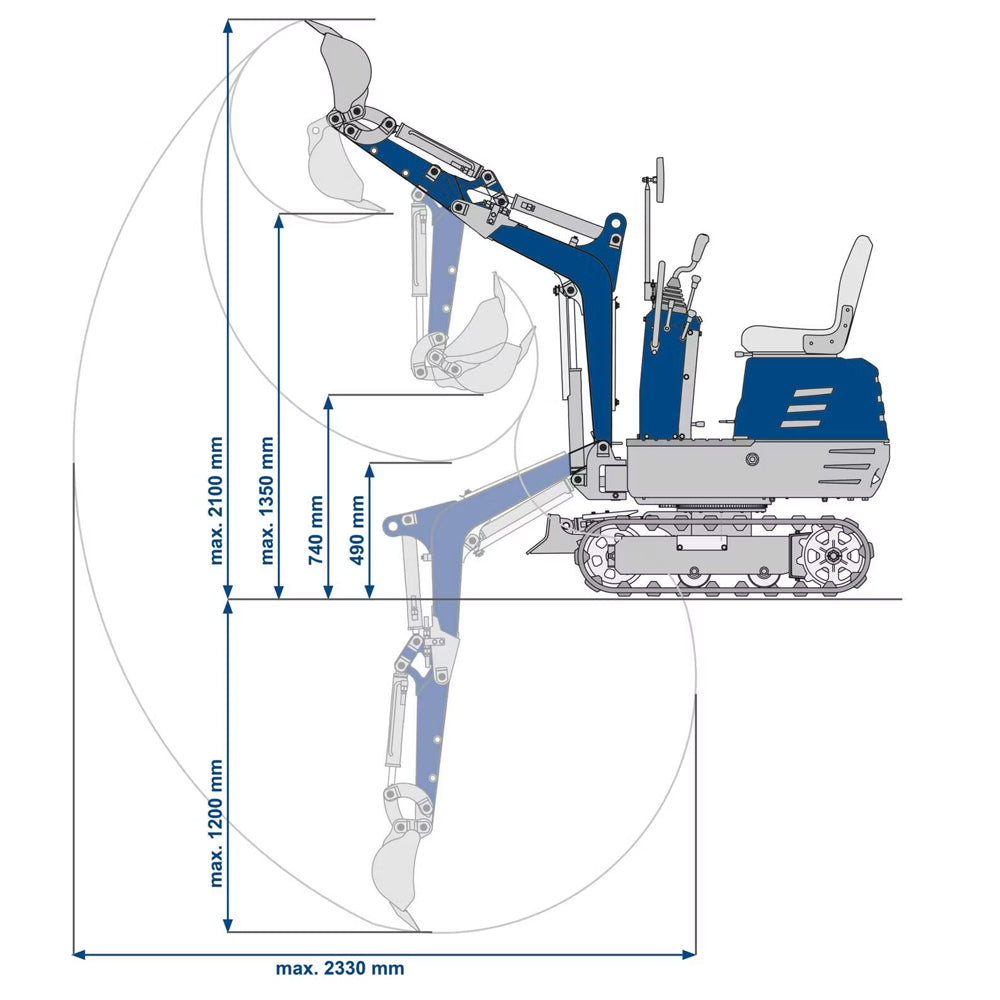

| Excavator Depth Max |
1200mm |

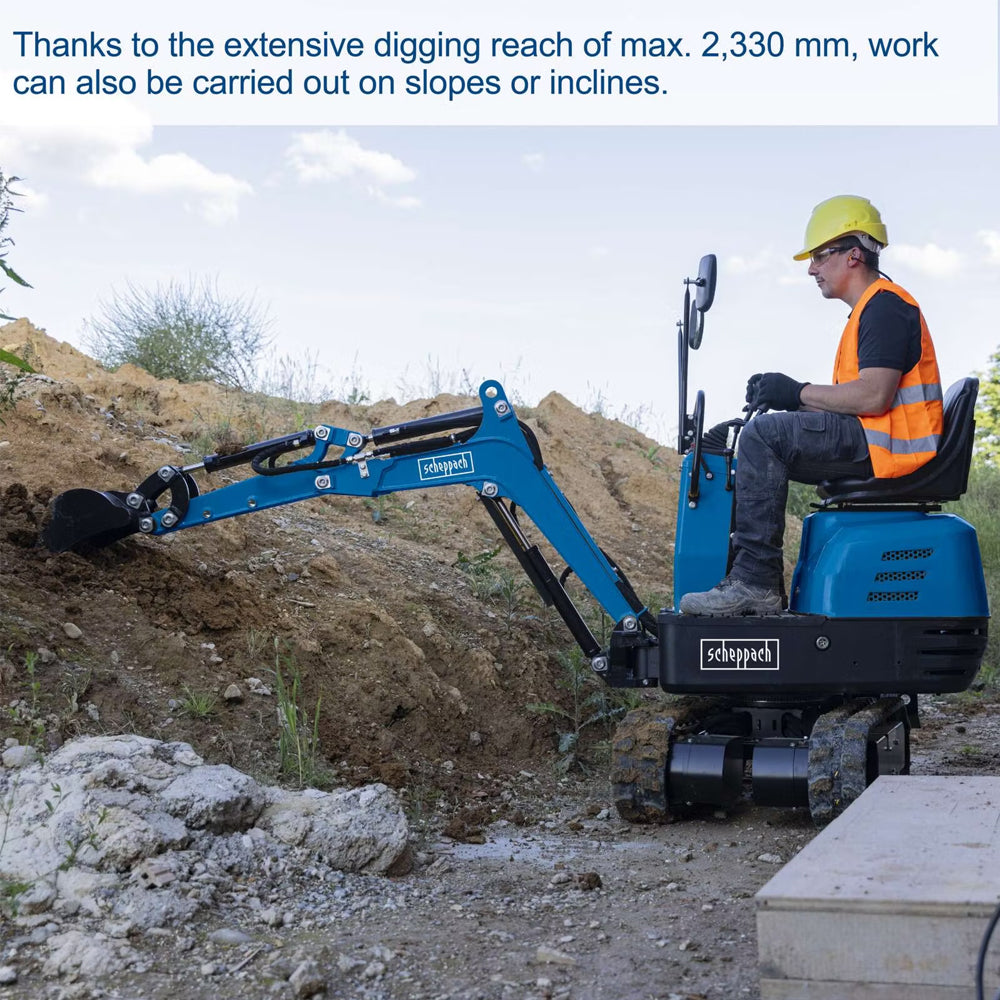

| Excavator Width (Centre of Rotation) |
2330mm |

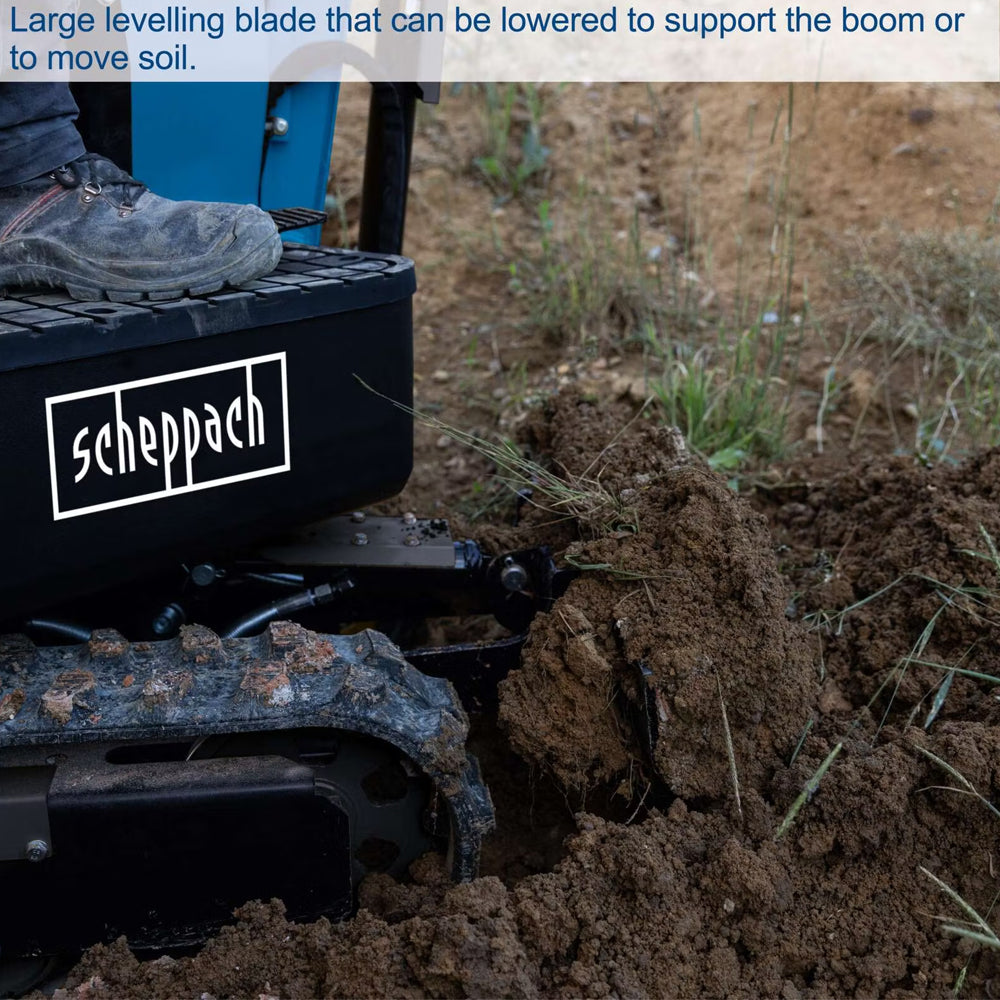

| Highest Levelling Blade Position |
+150 mm |
| Lowest Levelling Blade Position |
-130 mm |

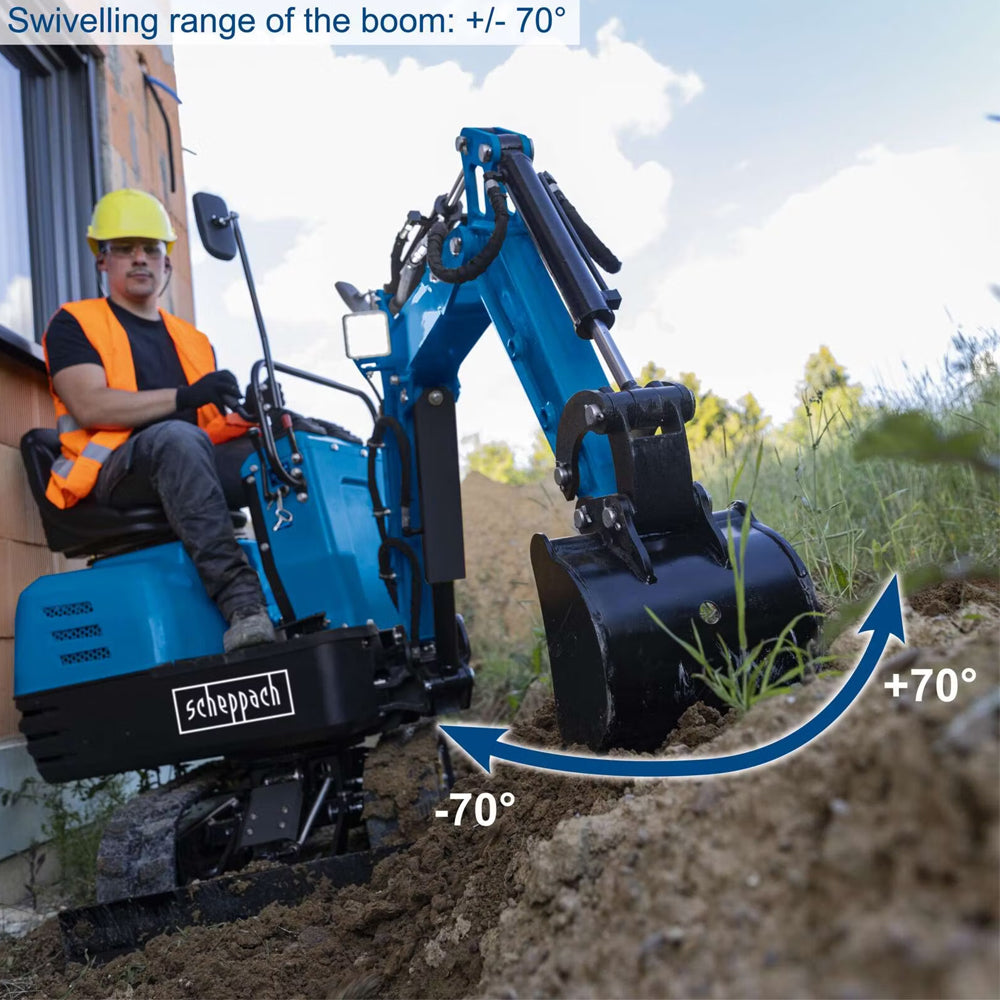

| Boom Swivelling Range (Left/Right) |
70° |
| Loading Height |
1350mm |
| Pumps | 2 |
| Pumping Capacity Per Pump | 8.3l/min |
| Hydraulic Tank Capacity | 12L |
| Hydraulic Oil | 4HLP 22; 10 W AW32; ISO32 |

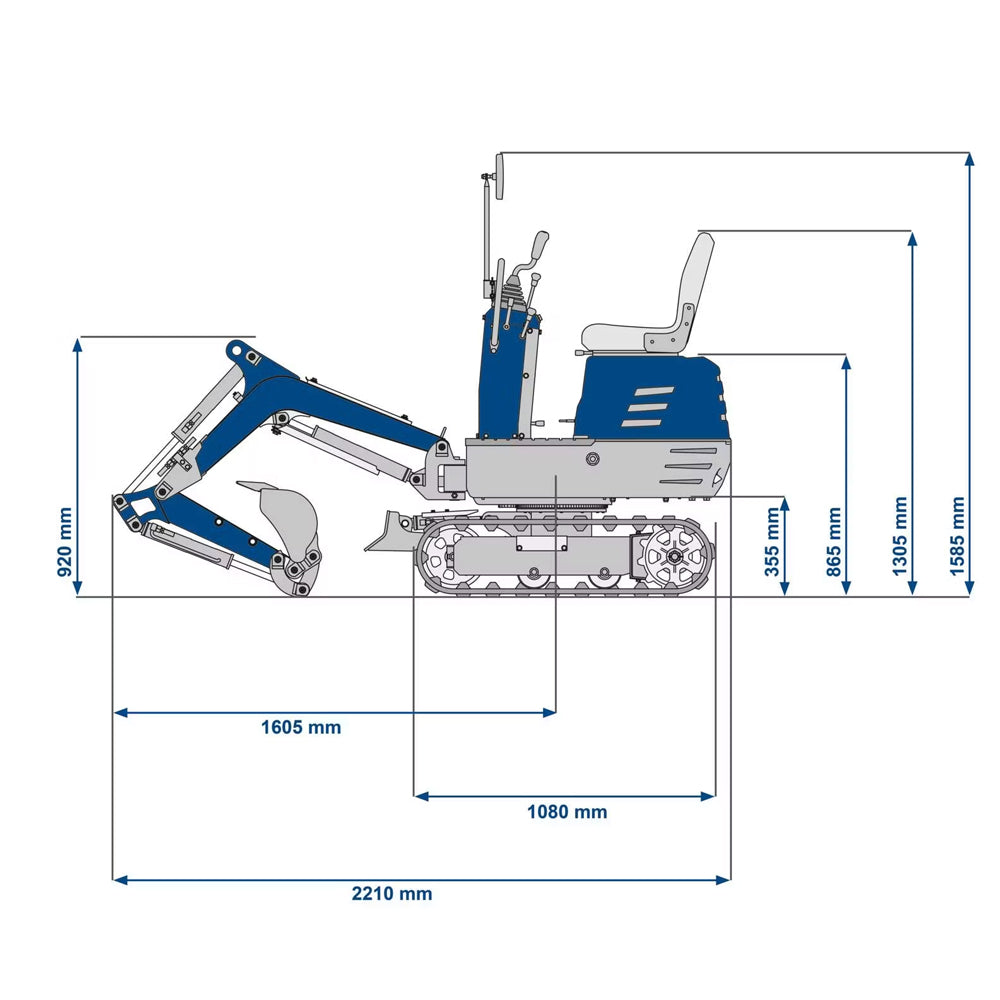

| Assembled Dimensions | Height including roof: 208cm |
| Weight | Net: 562kg Gross: 693kg |
| Warranty | 2 year manufacturer's for domestic use |
Features
Features
- 1200mm Digging Depth: Ideal for foundation work, trenching and landscaping applications.
- 8.8kN Bucket Digging Force: Delivers powerful excavation performance in challenging ground conditions.
- 360° Rotation & ±70° Boom Swing: Provides excellent flexibility and access around obstacles.

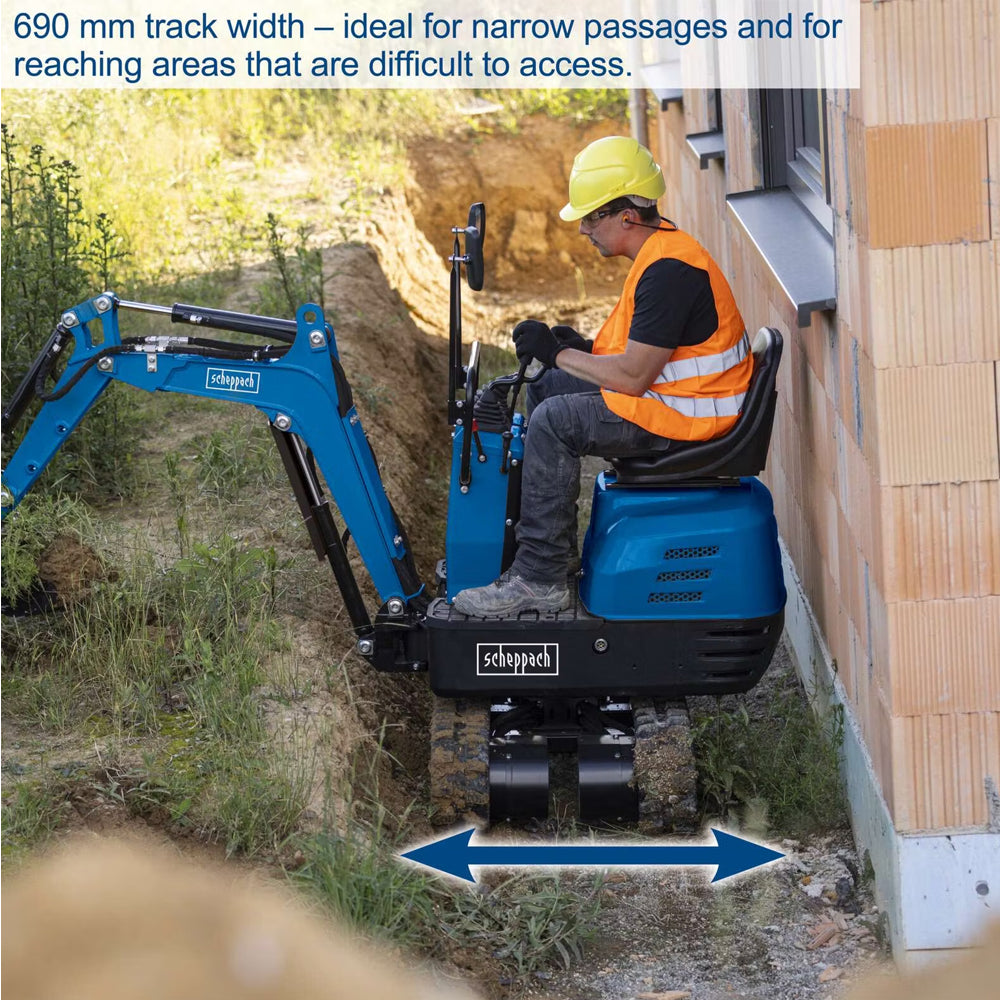

- Compact 690mm Track Width: Allows access through narrow spaces and restricted work areas.

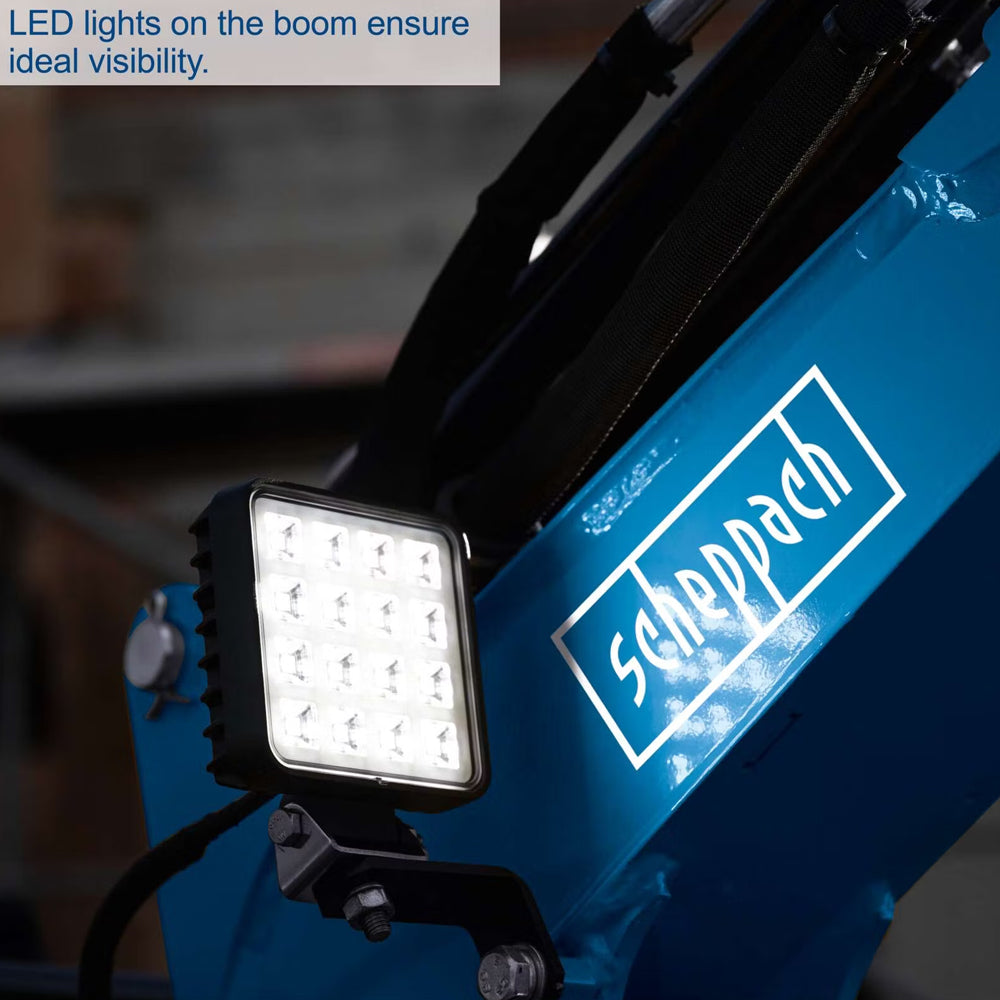

- Electric Start & LED Lighting: Convenient operation and improved visibility in low-light conditions.
Manuals
Manuals
Brand
Brand
ABOUT SCHEPPACH......
Scheppach is a German company founded in 1927 by Josef Scheppach, once known for its agricultural machines, firewood circular saws, and other woodworking tools. Josef Scheppach founded the company in Niederraunau, Germany, during the Weimar Republic era, when the economic conditions were challenging. He started by manufacturing firewood circular saws, malt mills, and providing repairs for agricultural machines.
Scheppach has maintained a presence in the industry for decades and has gained recognition for its quality tools and machinery. It has continued to innovate and adapt to changing market demands. Over the years, Scheppach's commitment to producing quality tools and equipment, coupled with its ability to adapt to changing market demands, has contributed to its growth and worldwide recognition.
Throughout the mid-late 1900s, Scheppach went from strength to strength after moving from Krumback, Niederraunau to a new location in Ichenhausen in 1961. By the mid-70s, Scheppach departed from the area of agricultural machinery and focussed on developing and producing woodworking machines. By honing in on woodworking machines, Scheppach was able to establish itself as a specialist in this niche segment and expand its product range to include a variety of machines and accessories catering to woodworking enthusiasts, professionals, and industries.
The journey from a small workshop in Niederraunau to becoming one of the largest companies in the sector is a testament to the company's ability to evolve, expand, and meet the needs of its customers. It's a story of entrepreneurship, resilience, and adaptability that highlights how businesses can thrive and make a lasting impact over time.
Expanding the product range, in 2009-10, to include construction machinery and heavy trade equipment by introducing plate vibrators, concrete mixers, hand-held agitators, dumpers, demolition equipment and battery-powered devices, Scheppach extended its offerings beyond woodworking and entered the construction equipment market.
Since 2014, the range of gardening machinery and tools has grown continuously to become a permanent part of Scheppach’s portfolio. Scheppach is now one of the fastest growing companies in Germany and Europe, a job motor for the region and one of the leading companies in this sector.
In 2024 Scheppach established its British headquarters in Edinburgh, Scotland, marking a significant expansion of the global German tool brand's international footprint.
 |
|
 |
 |
