Product Code: 5904615903

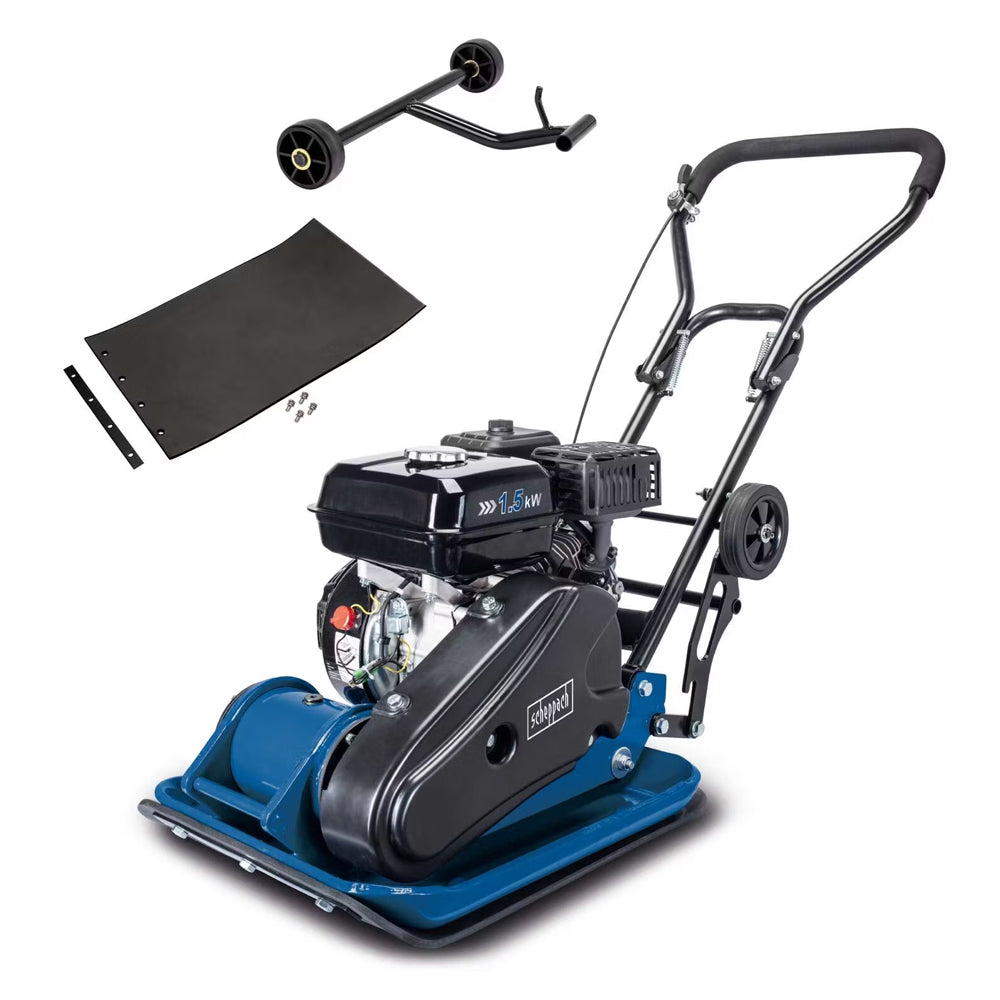

Scheppach HP1400S Petrol Wacker Plate Compactor
Scheppach HP1400S Petrol Wacker Plate Compactor
Get 0% interest – Find out more here
Get a £20 discount when you spend £250 or more online! Use the code 20OFF in the checkout
Available in stock (43)
- Freight Delivery Usually 2-5 Working Days (Monday - Friday)
2 Year Manufacturer’s Warranty
Delivery Information
UK MAINLAND
Delivery costs to most United Kingdom mainland addresses are included in the price of our garden machinery products over £100.
For orders of garden machines under £100, all hand tools including WOLF-Garten and Wilkinson Sword, accessories and parts, the cost of delivery will be calculated in your shopping basket according to the weight of the product and your postcode. Parts, accessories & hand tools will normally incur a small delivery charge of £8.50.
Additional delivery charges may apply to the following areas and this will be calculated in your shopping basket when you input your postcode:- Â Â
Isle Of Wight
Scottish Highlands
including postcodes AB31-38, AB41-45, AB51-56, FK19-21, IV1-56, KA26-28, KW1-17, PA20-88, PH1-9, PH15-44, PH49
East Coast of Scotland
including postcodes AB1-3, AB9-16, AB21-25, AB30, AB39, AB41-AB42, DD1-11, KY13, PH2, PH11-14
Whilst there is NO additional charge to deliver to the east coast of Scotland postcodes, for courier deliveries under 99kg, please allow up to two working days from date of despatch for your order to arrive.Â
UK OFFSHORE AREAS
We are unable to deliver our products to locations below as we cannot support them if they become faulty within the warranty period.
Scottish Islands
including postcodes HS1-9, ZE1-3
Isle of Man
Northern Ireland
Channel Islands
OVERSEAS - EUROPE AND THE REST OF THE WORLD
The Green Reaper does not offer a delivery service outside the UK.Â
SATURDAY DELIVERY
For an additional charge, we can arrange for orders to be delivered to UK mainland addresses by courier on a Saturday. Please visit our Contact Us page or email us at sales@thegreenreaper.co.uk to obtain a quotation.
ADDITIONAL DELIVERY INFORMATION
Whilst we can deliver to an alternative delivery address, please note that for your security, we may require proof of your relationship with the second address. This reduces the possibility of someone else using your card fraudulently. Our Sales Team will call you to arrange this with you.
Stock willing, we aim to dispatch goods within 24 hours of receiving the order, however, please allow up to seven working days for your order to arrive. You will be contacted by email if the order is likely to take any longer. Please note: SCH products are built to order and usually delivered on their own transport so we quote a longer lead time.
An order confirmation email will be sent to your registered email address as soon as you submit the order online.
Please note that additional delivery charges may only be added at time of order processing, and will not always appear in the shopping basket or order confirmation email.
Normal delivery hours are 9am – 5.30pm, Monday to Friday. For security reasons a signature is required to acknowledge receipt. If you know that there will be no one available to sign for your delivery, it may be preferrable to supply an alternative address for delivery.
If no one is available at the delivery address to sign for the goods, the delivery company will leave a calling card. You can simply call the number on the card quoting the card reference number to re-arrange delivery at a more suitable time. Alternatively, you may prefer to collect the goods from your local depot. If you are unable to take delivery and the item is subsequently returned to us, the customer is liable for the cost of returning the goods.
ORDER TRACKING
How to track your parcelÂ
If you choose to register with The Green Reaper, you will receive a member registration email containing your login details. When you place an order, you will receive an email confirmation of your order. You can login to your account at any time to check the status of your order - i.e. if it has been processed and despatched, etc. To login simply enter your email address and the password provided to track your order or edit your details.Â
If you have any questions regarding your order, please contact us using the contact form on our website. As soon as your goods are despatched, we will notify you by email the method of despatch, together with consignment details, where relevant. We will provide you with a link to our preferred courier's website so you can track your order's progress online.
If you have any further enquiries, please use the contact us form on the footer of our website. Â
DISCLAIMER
We work closely with our carriers to ensure the best possible service and delivery times, however, some delays may occur which are outside our control.
Flexible Finance Options
Spread the cost of your new appliance with our payment options. Choose from the options below at checkout and tailor your payments to your needs.
Description
Description
Specification
Specification
| Brand | Scheppach |
| Engine Type | 4-stroke, single cylinder, OHV |
| Engine Displacement | 79cc |
| Power | 1.5kW |
| Horsepower | 2.04hp |
| Idle Engine Speed | 1800.0 1/min |
| Start Method | Recoil |
| Fuel | Unleaded petrol (E10 suitable) |
| Fuel Tank Capacity | 1.1L |
| Engine Oil Capacity | 0.35L |
| Spark Plug | F7RTC |
| Maximum Operating Angle | 20° |
| Centrifugal Force | 8200N |
| Plate Size | L: 49.5cm x W: 32cm x H: 0.6cm |
| Compaction Depth | 20cm |
| Travel Speed | 25m/min |
| Vibration Frequency | 5900vpm |
| Eccentric Vibration Unit Oil | 0.8L 80W90 |
| Water Lubrication | No |
| Rubber Mat | Polyurethane (PU), hardness: 70hrc |

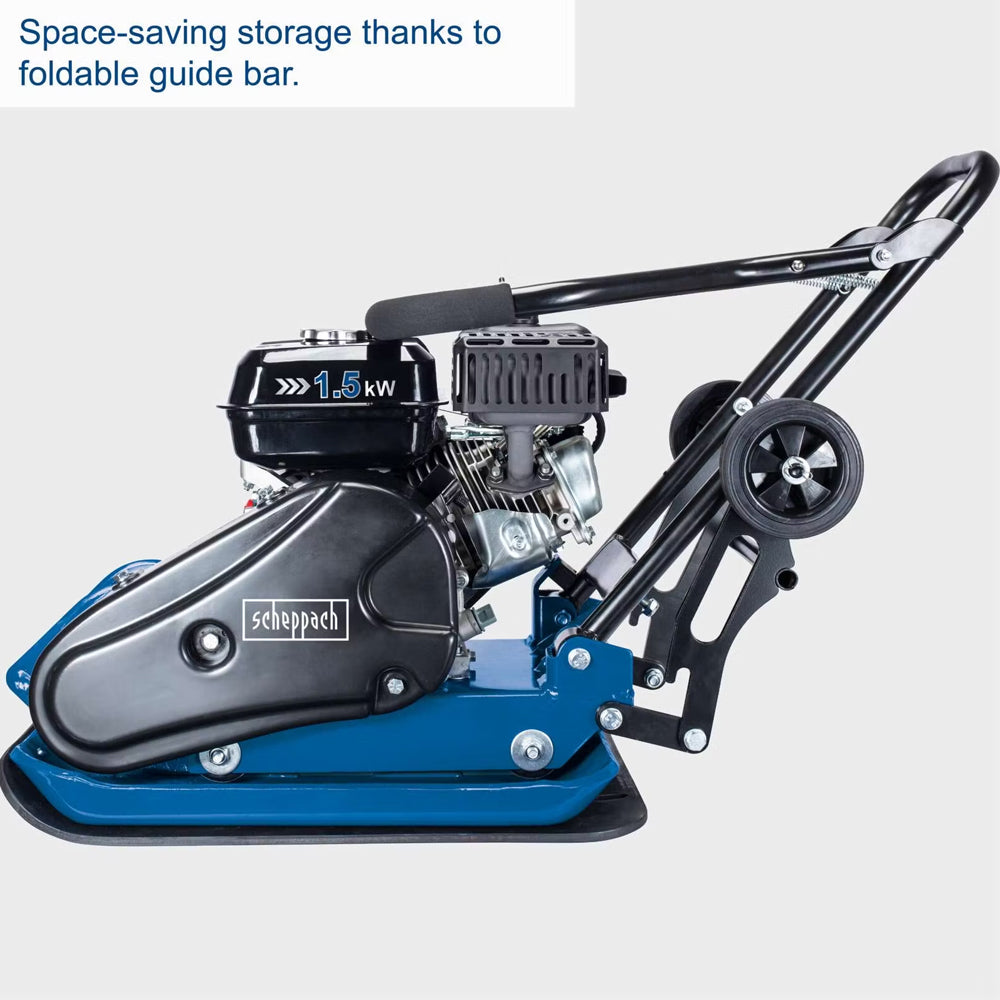

| Handle | Anti-vibration, folding |
| Transport Wheels | Yes |
| Crane Fixing Point | Yes |
| Included | Plate compactor, guide handle, chassis, rubber pad, fastening grip, installation spanner, 2 x screws (M10x70mm), 2 x washers (M10), 1 x locknut (m10), 2 x screws (M10x30mm), 2 x washers (M10), 2 x locknuts (M10), 2 x screws (M10x30mm), 2 x spring washers (M10), 2 x nuts (M10, manual |
| Vibration Level Data | ≤ 17.5m/s² |
| Sound and Noise Data | Sound power level LwA: 105.4dB(A) Sound pressure level LpA: 85.4dB(A) |
| CO² Output | 1016.4g/kWh |
| Assembled Dimensions | L: 113cm x W: 42cm x H: 82cm |
| Weight | Net: 48kg Gross: 50kg |
| Warranty | 2 year manufacturer's for domestic use |
Features
Features

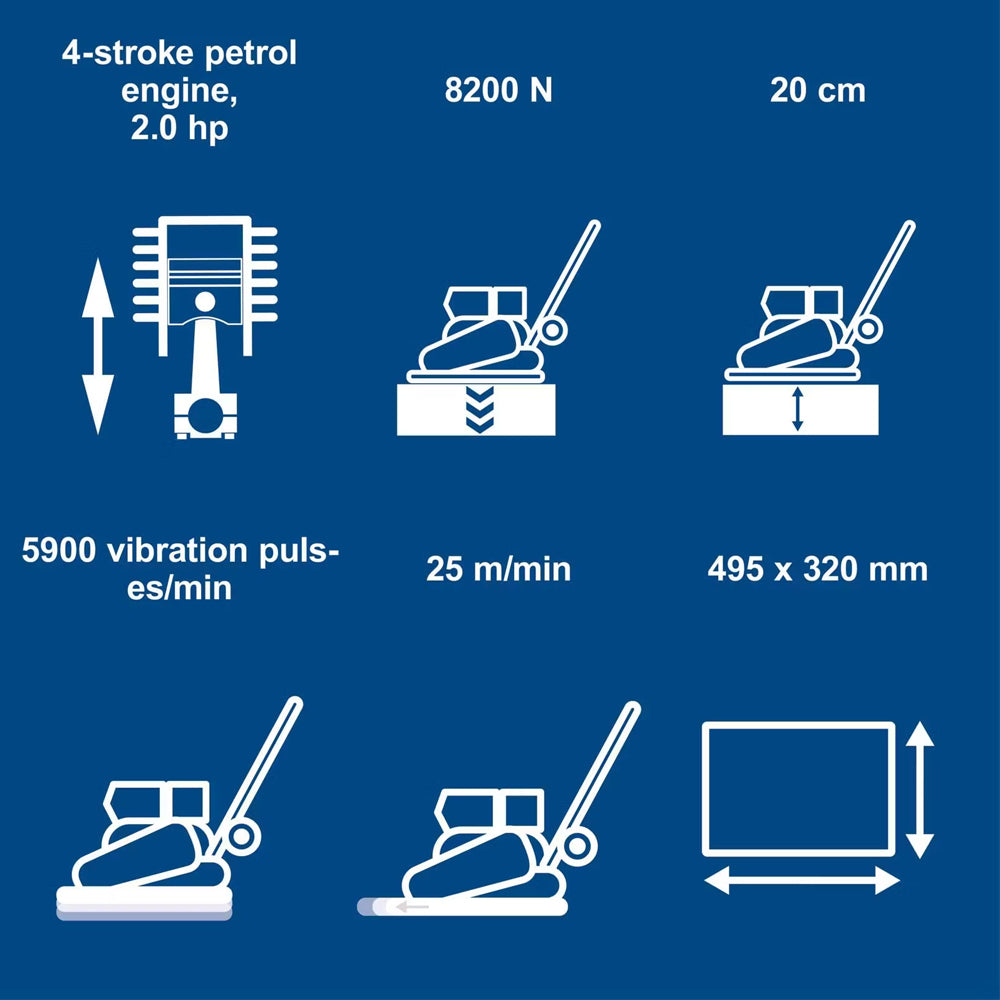

- 8200N Compaction Force: Provides effective compaction of soil, sand and gravel for reliable ground preparation.
- 495x320mm Steel Plate: Delivers stable operation and consistent compaction across the working surface.

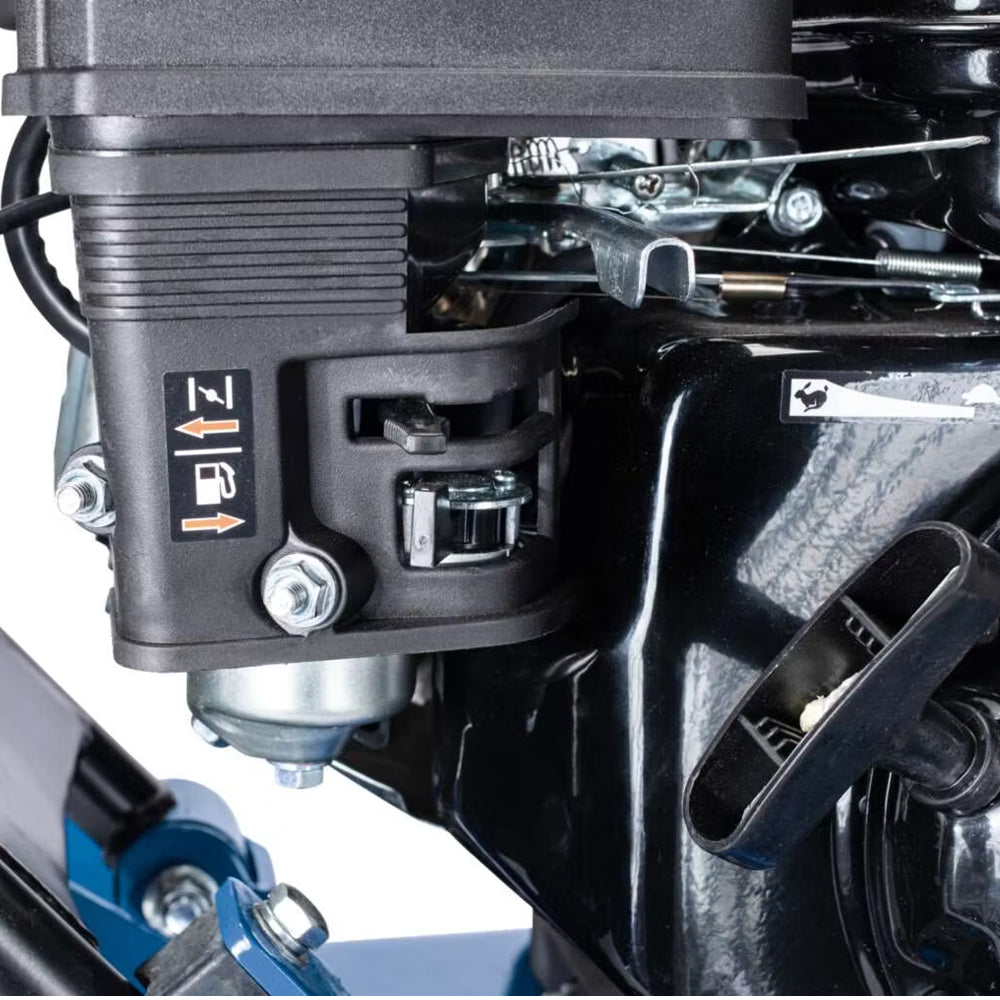

- 1.5kW Petrol Engine: Reliable 79cm³ 4-stroke engine offers dependable performance for outdoor projects.

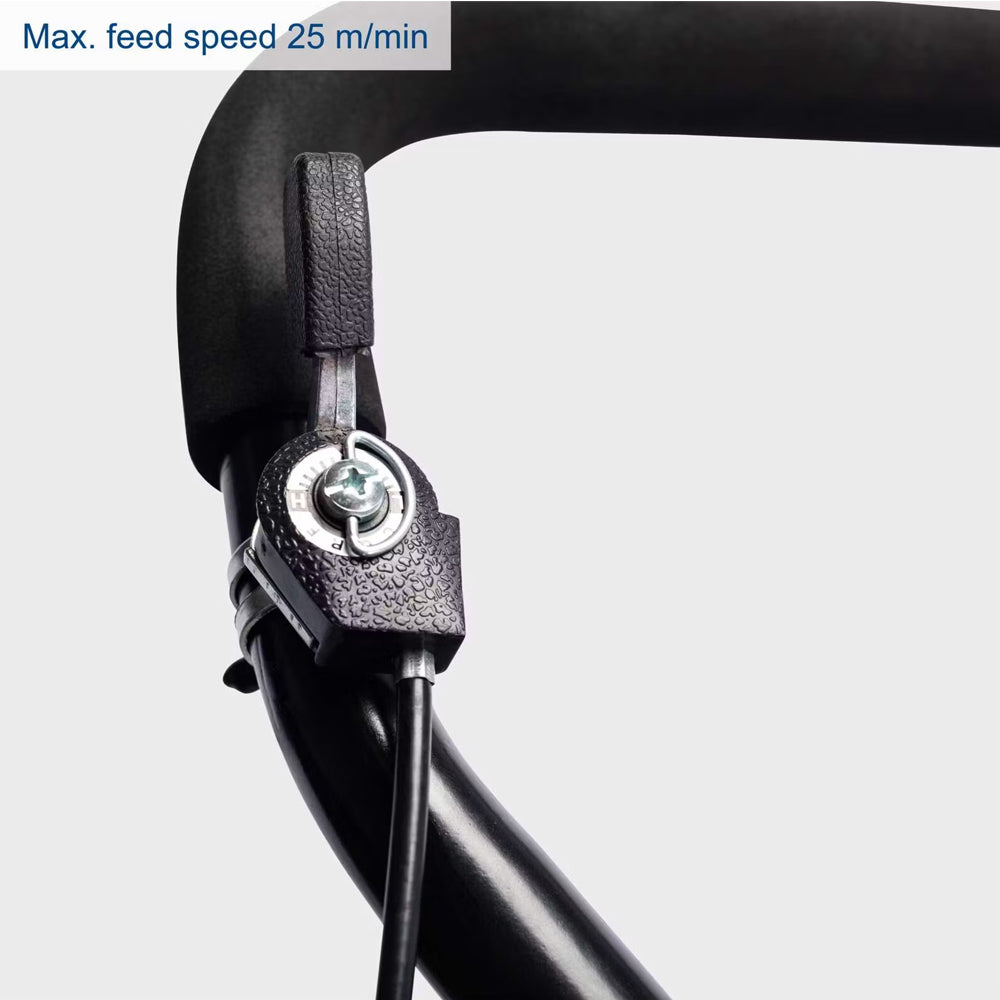

- 25m/min Travel Speed: Automatic forward drive helps increase productivity and reduce working time.

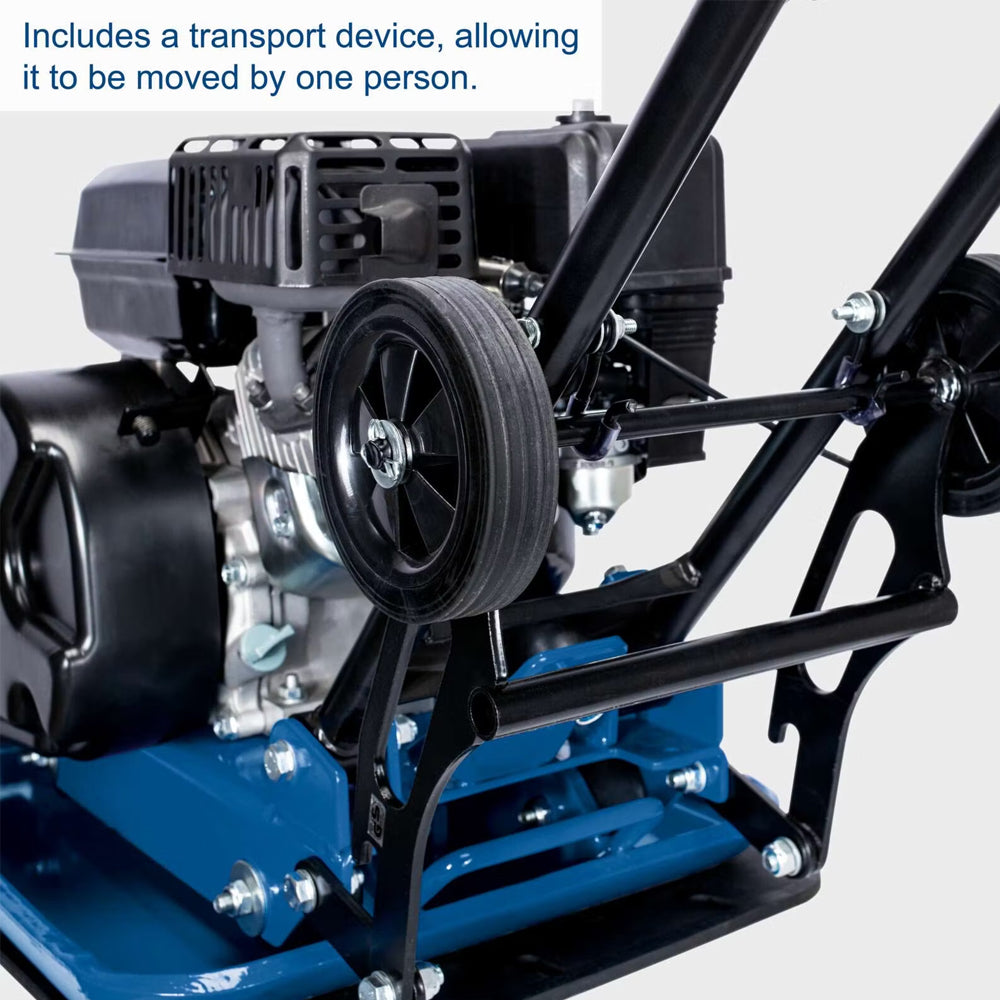

- Rubber Mat & Transport Wheels: Protects paving surfaces during compaction and improves manoeuvrability around the worksite.
