Product Code: AK127687

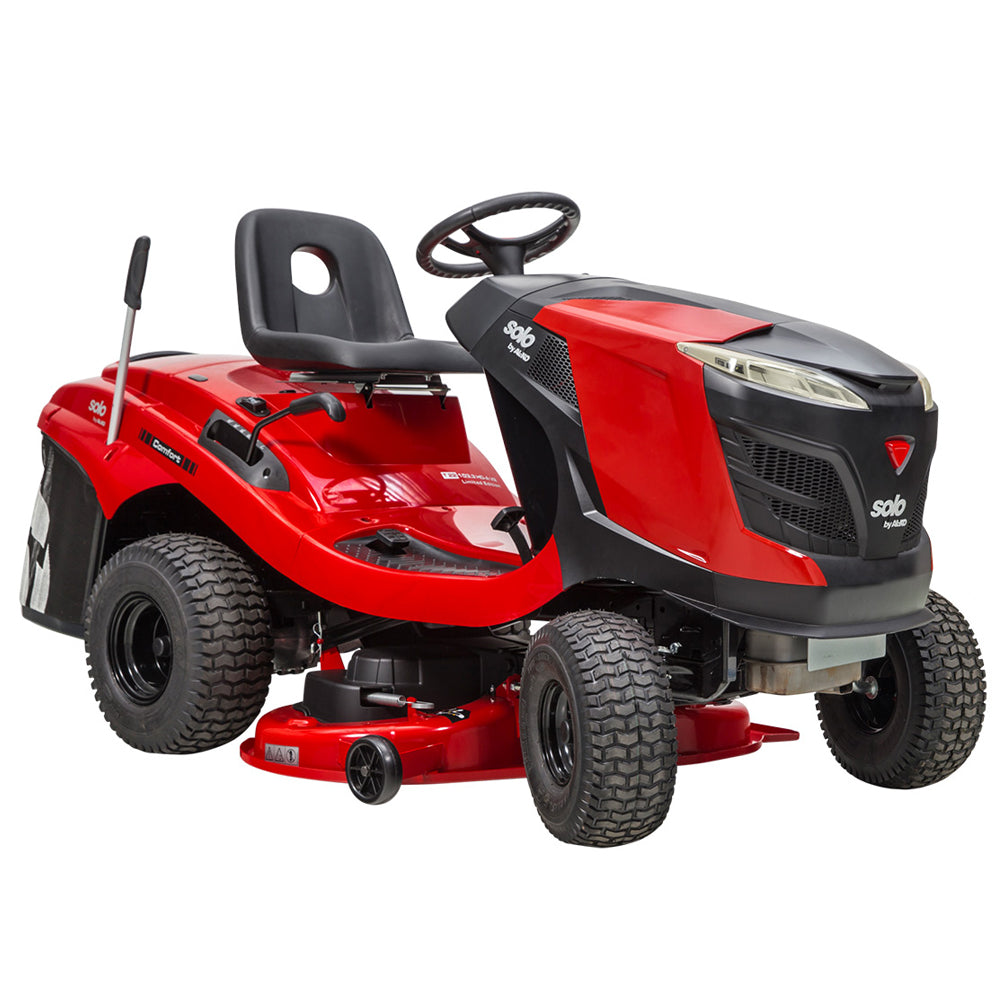

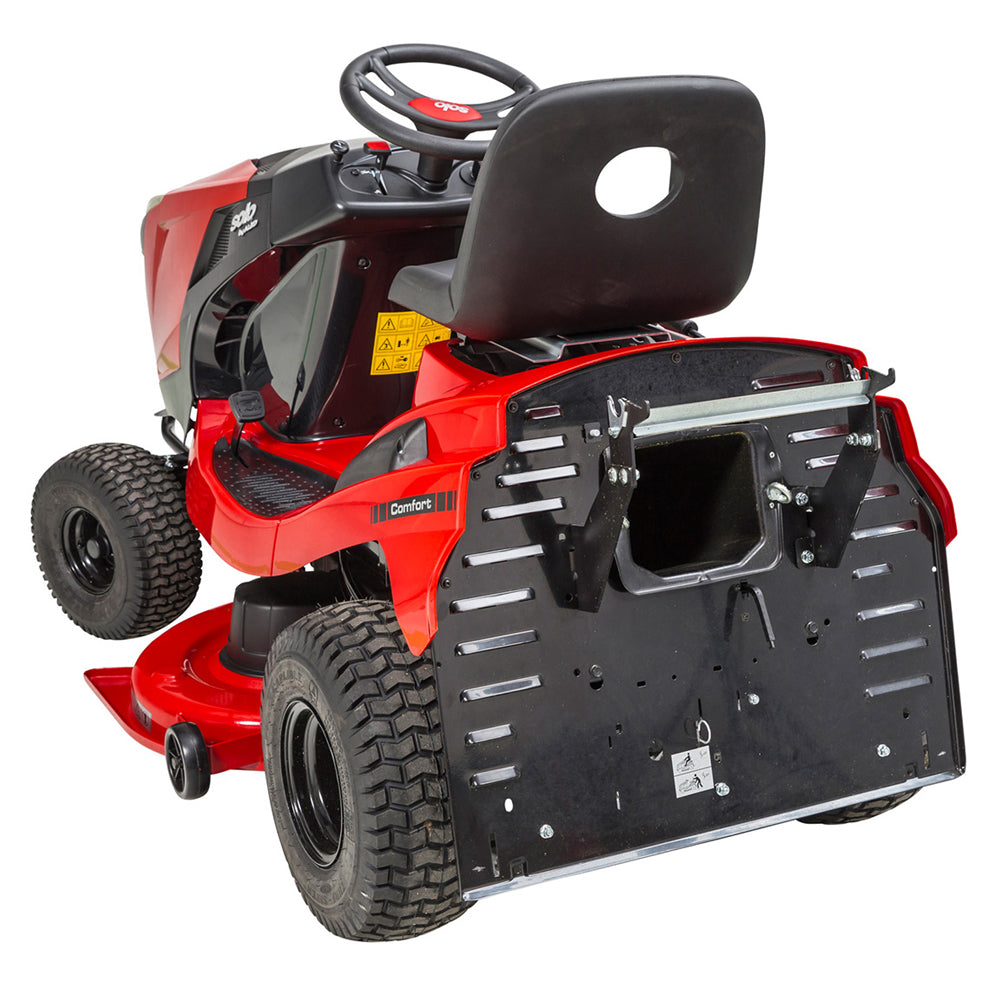

solo by AL-KO T 15-93 HD-A Comfort 93cm/36" Hydrostatic Rear Collect Lawn Tractor
solo by AL-KO T 15-93 HD-A Comfort 93cm/36" Hydrostatic Rear Collect Lawn Tractor
Get 0% interest – Find out more here
Get a £20 discount when you spend £250 or more online! Use the code 20OFF in the checkout
Hurry up, only 5 items left in stock.
- Delivery Time: Usually 5-6 working days (Monday - Friday)
5 Year Manufacturer’s Conditional Warranty
Delivery Information
UK MAINLAND
Delivery costs to most United Kingdom mainland addresses are included in the price of our garden machinery products over £100.
For orders of garden machines under £100, all hand tools including WOLF-Garten and Wilkinson Sword, accessories and parts, the cost of delivery will be calculated in your shopping basket according to the weight of the product and your postcode. Parts, accessories & hand tools will normally incur a small delivery charge of £8.50.
Additional delivery charges may apply to the following areas and this will be calculated in your shopping basket when you input your postcode:-
Isle Of Wight
Scottish Highlands
including postcodes AB31-38, AB41-45, AB51-56, FK19-21, IV1-56, KA26-28, KW1-17, PA20-88, PH1-9, PH15-44, PH49
East Coast of Scotland
including postcodes AB1-3, AB9-16, AB21-25, AB30, AB39, AB41-AB42, DD1-11, KY13, PH2, PH11-14
Whilst there is NO additional charge to deliver to the east coast of Scotland postcodes, for courier deliveries under 99kg, please allow up to two working days from date of despatch for your order to arrive.
UK OFFSHORE AREAS
We are unable to deliver our products to locations below as we cannot support them if they become faulty within the warranty period.
Scottish Islands
including postcodes HS1-9, ZE1-3
Isle of Man
Northern Ireland
Channel Islands
OVERSEAS - EUROPE AND THE REST OF THE WORLD
The Green Reaper does not offer a delivery service outside the UK.
SATURDAY DELIVERY
For an additional charge, we can arrange for orders to be delivered to UK mainland addresses by courier on a Saturday. Please visit our Contact Us page or email us at sales@thegreenreaper.co.uk to obtain a quotation.
ADDITIONAL DELIVERY INFORMATION
Whilst we can deliver to an alternative delivery address, please note that for your security, we may require proof of your relationship with the second address. This reduces the possibility of someone else using your card fraudulently. Our Sales Team will call you to arrange this with you.
Stock willing, we aim to dispatch goods within 24 hours of receiving the order, however, please allow up to seven working days for your order to arrive. You will be contacted by email if the order is likely to take any longer. Please note: SCH products are built to order and usually delivered on their own transport so we quote a longer lead time.
An order confirmation email will be sent to your registered email address as soon as you submit the order online.
Please note that additional delivery charges may only be added at time of order processing, and will not always appear in the shopping basket or order confirmation email.
Normal delivery hours are 9am – 5.30pm, Monday to Friday. For security reasons a signature is required to acknowledge receipt. If you know that there will be no one available to sign for your delivery, it may be preferrable to supply an alternative address for delivery.
If no one is available at the delivery address to sign for the goods, the delivery company will leave a calling card. You can simply call the number on the card quoting the card reference number to re-arrange delivery at a more suitable time. Alternatively, you may prefer to collect the goods from your local depot. If you are unable to take delivery and the item is subsequently returned to us, the customer is liable for the cost of returning the goods.
ORDER TRACKING
How to track your parcel
If you choose to register with The Green Reaper, you will receive a member registration email containing your login details. When you place an order, you will receive an email confirmation of your order. You can login to your account at any time to check the status of your order - i.e. if it has been processed and despatched, etc. To login simply enter your email address and the password provided to track your order or edit your details.
If you have any questions regarding your order, please contact us using the contact form on our website. As soon as your goods are despatched, we will notify you by email the method of despatch, together with consignment details, where relevant. We will provide you with a link to our preferred courier's website so you can track your order's progress online.
If you have any further enquiries, please use the contact us form on the footer of our website.
DISCLAIMER
We work closely with our carriers to ensure the best possible service and delivery times, however, some delays may occur which are outside our control.
Flexible Finance Options
Spread the cost of your new appliance with our payment options. Choose from the options below at checkout and tailor your payments to your needs.
Description
Description
Specification
Specification
| Brand | solo by AL-KO |
| Model | AK127687 |
| Engine Make | AL-KO |
| Engine Model | PRO 450 |
| Engine Type | Air-cooled, 4-stroke, OHV |
| Engine Cylinders | 1 |
| Engine Displacement | 452cc |
| Net Rated Power Output | 7.7kW @ 2600rpm |
| Start Method | Electric key |
| Transmission Type - Filter | Hydrostatic |

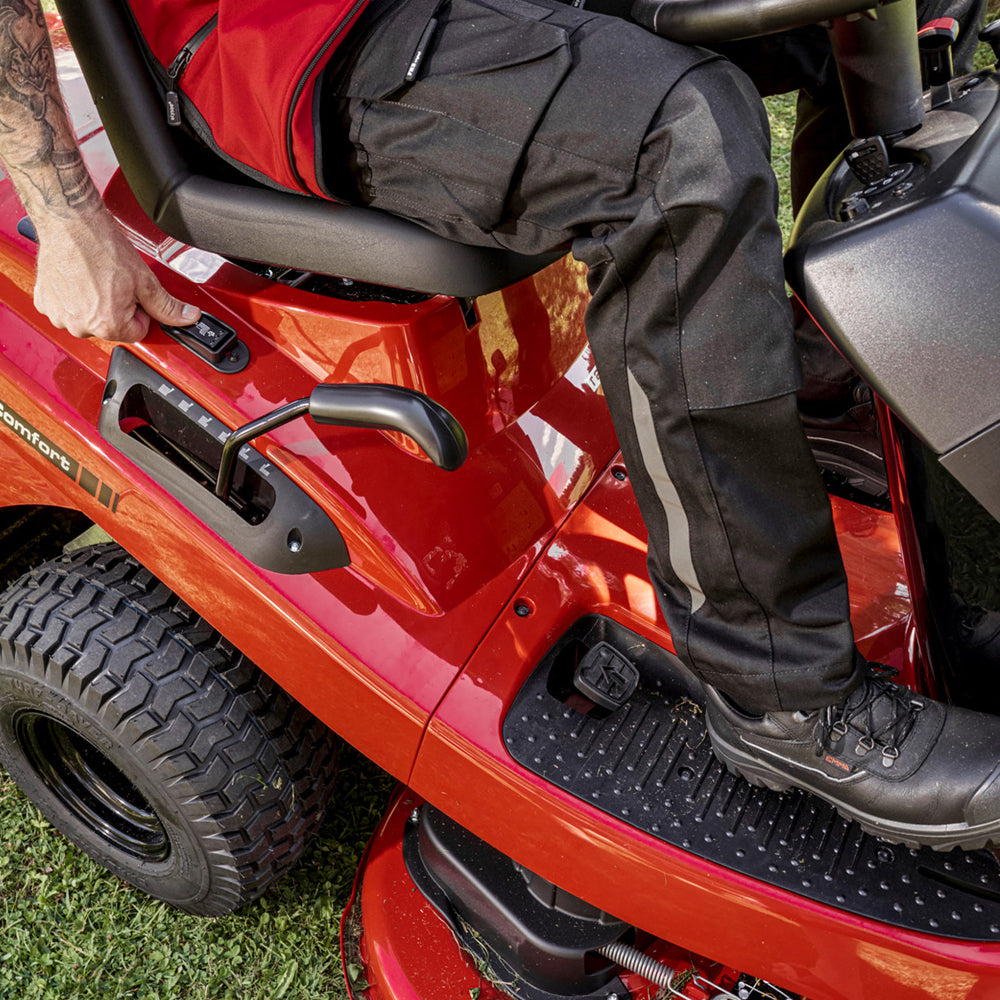

| Transmission | Foot-operated T3 |
| Speeds | Forward: 9.0km/h Reverse: 4.0km/h |
| Differential Locking | No |
| Width of Cut | 93cm / 36" |
| Blades | 2 |
| Minimum Cutting Height | 30mm |
| Maximum Cutting Height | 80mm |
| Cutting Height Adjustment | Central, 6 stages |
| Grass Collector | Standard |
| Collector Capacity | 250ltr |
| Bag Full Indicator | Yes, audible signal |
| Mulch Plug | Included: AK118885 |
| Rear Deflector | Optional accessory: AK127488 |
| Side Discharge | No |
| Front Bumper | Included: Comfort AK119658 / Optional: Premium AK127731 |
| Headlights | Optional LED light kit: AK119832 |
| Seat | Adjustable (tool-less) |
| Wheels - Front | 15 x 6.0-6 |
| Wheels - Rear | 18 x 8.5-8 |
| Tow Hitch | Included: AK119831 |
| Assembled Dimensions | L: 239cm x W: 102cm w H: 114cm |
| Sound and Noise Data | 100dB(A) |
| Global Trade Item Number | 4003718064056 |
| Warranty | Standard domestic: 2 years Extended domestic: 5 years (subject to online registration and annual service) Commercial: 90 days |
Features
Features
THE ALL NEW
TRACTOR
The Upgrades
 | New modern bonnet designThe Comfort bonnet has been redesigned following customer feedback. solo by AL-KO has developed an entirely new appearance inspired by the automotive industry. The updateddesign is more modern and stylish. It's not just the appearance that has been improved, but also the mounting of the bonnet. The new design feels more stable and rigid when opening. The striking look, the clear lines and the excellent workmanship make solo by AL-KO lawn tractors eye-catchers. |

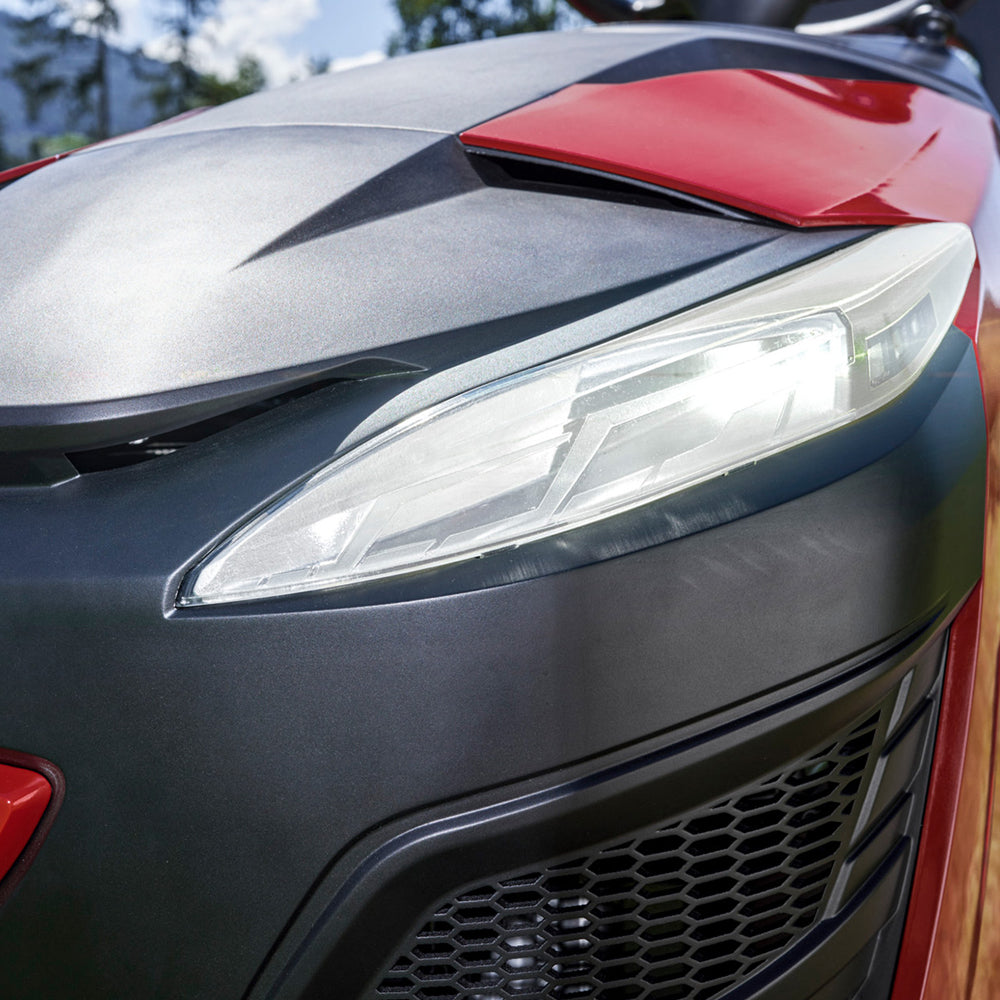

 | More sleek and powerful headlights (optional)Slimline LED headlights are 10X more powerful, curving around the bonnet. |

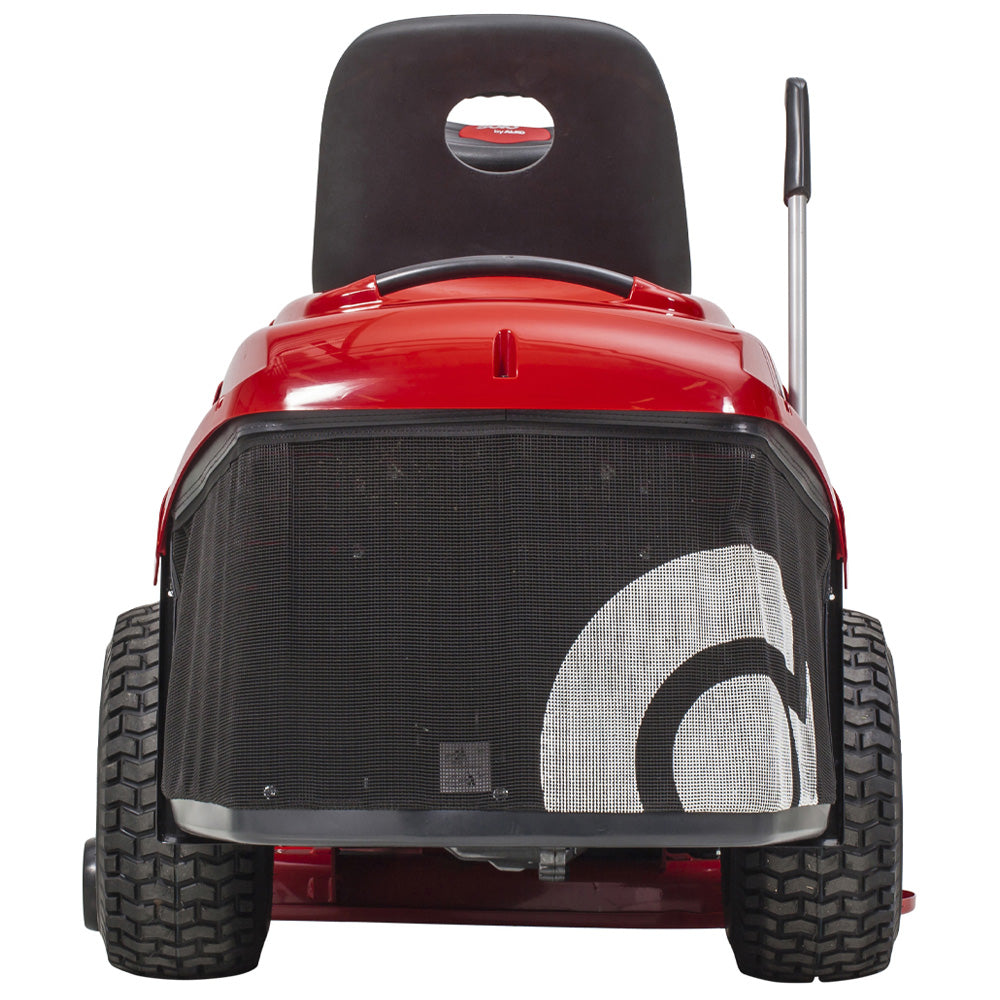

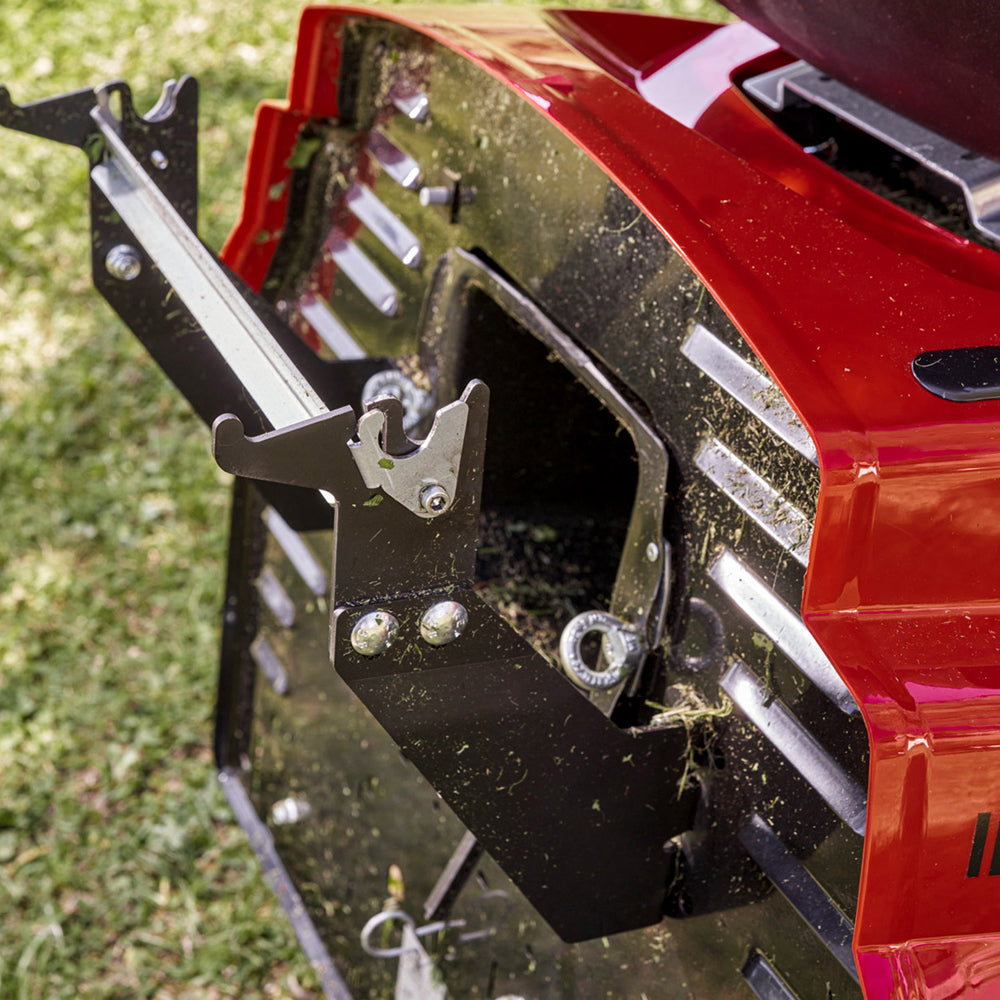

 | New collector mountingThe collector has a completely new mounting structure further away from the lawn tractor. This allows quicker and easier mounting and dismounting of the collector. A new dual locking mechanism will firmly hold the collector in place in all situations. |

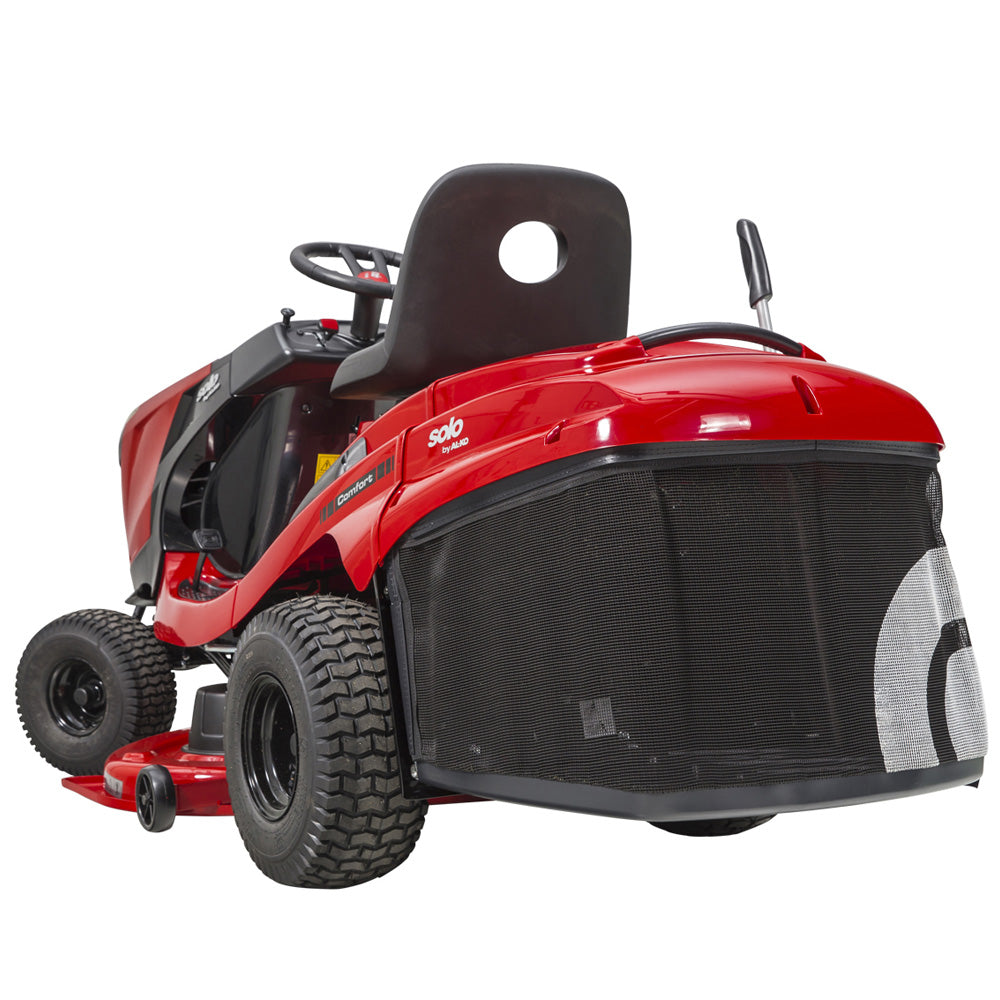

 | Redesigned larger 250 litre collectorAll Comfort rear collector tractors now feature a 250 litre grass box with telescopic lever. This is now standard across the range (up from 220L) and provides an 11% increase in capacity, giving the Comfort lawn tractor one of the biggest grass boxes in its class! Acoustic level indicatorThe large-volume collection box with an audible filling level signal alertsthe user as soon as the collection device is full. |

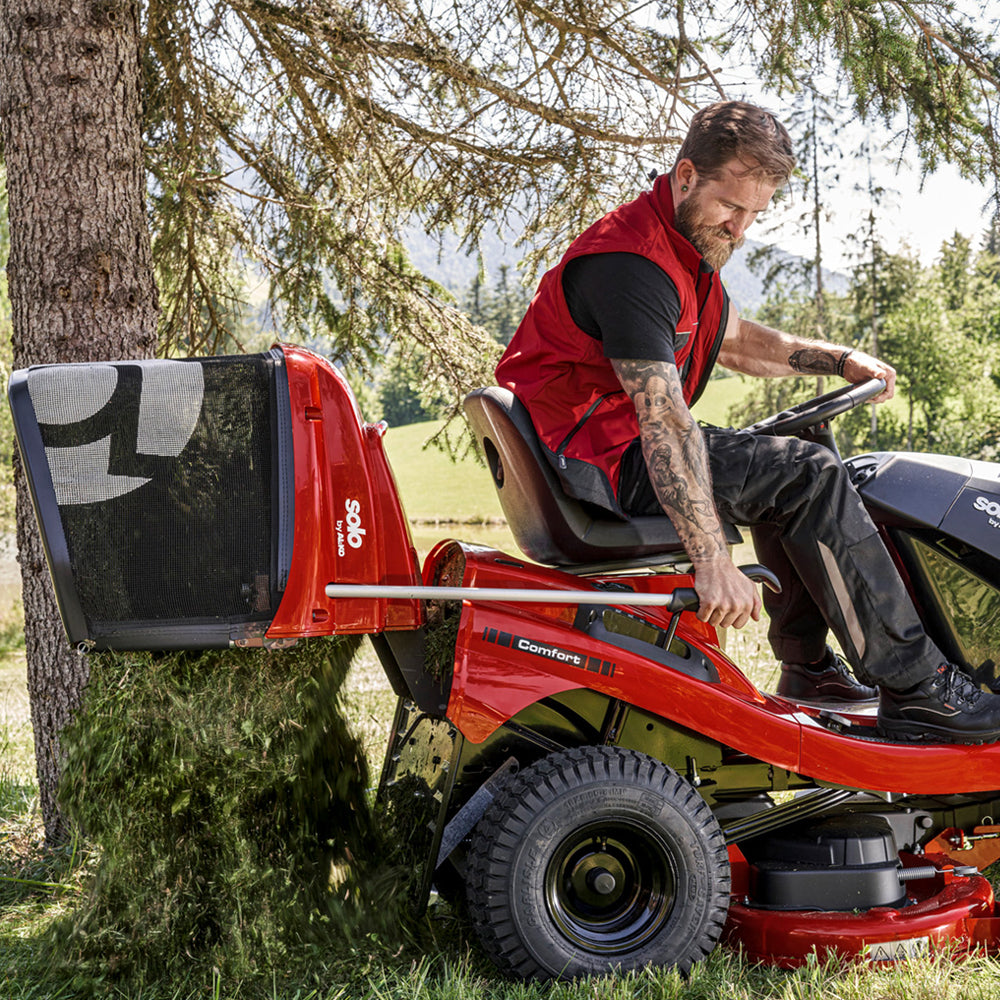

 | Efficient mowingThanks to the MaxAirflow technology, the 250 litregrass catcher box is filled efficiently and it takes less time to empty it. Redesigned geormetry makes emptying 20% easierWhen the grass collector is full, thanks to a new mounting geometry the force required to empty it is 20% less than the previous version, even with a larger collection capacity. |

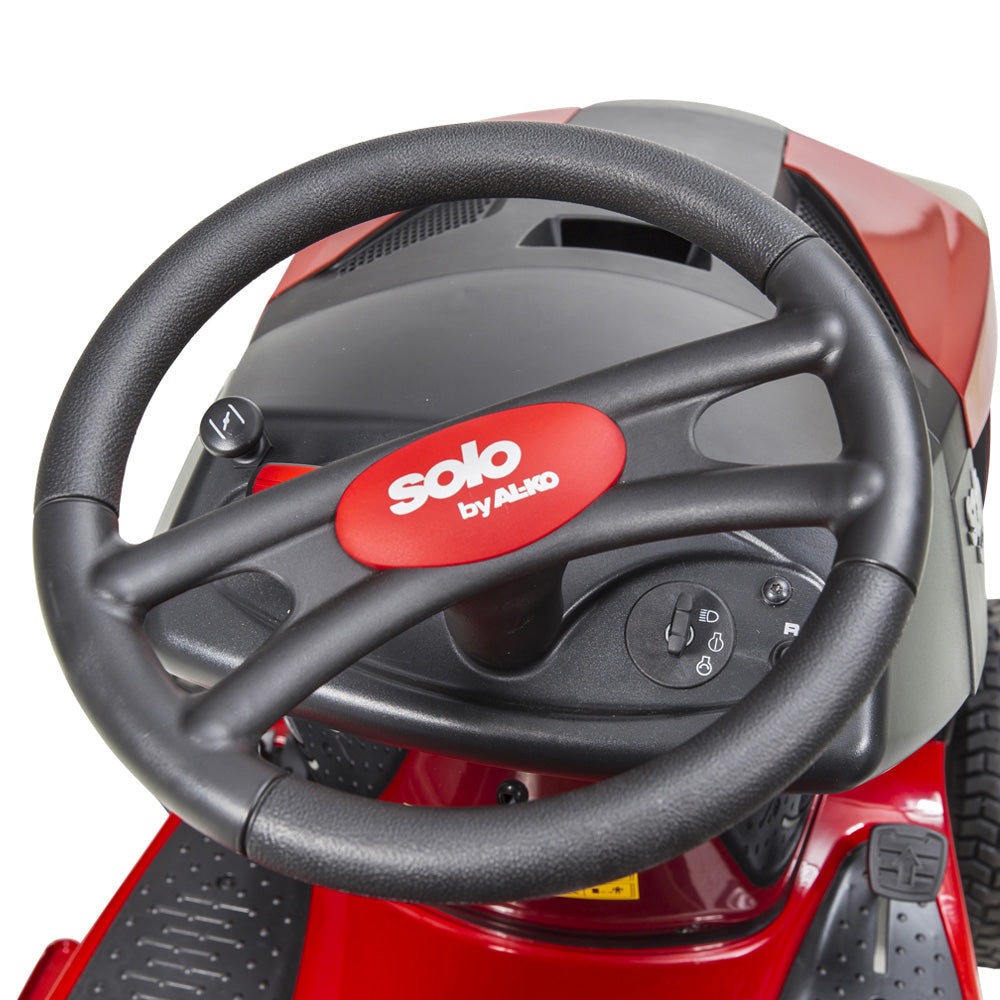

 | Precise steering and lawn-friendly wide tyresThe extra large tyres ensure optimal traction on any surface and therefore form fewer ruts. |
