Billy Goat Plugr PL2501SPH Hydro-Drive Petrol Lawn Aerator

Description

The Plugr PL2501SPH self-propelled hydro-drive aerator from Billy Goat delivers an impressive 4,000 square metres of aeration per hour at an impressive rate of 2.62mph or 3.846 feet per second. The machine is equipped with six reciprocating cam-driven tines which punch core depths to 2.75", even in hard soil.

The tines propel the unit forward with variable three-speed control from 2.5 - 3mph, which allows for a denser hole pattern at a slower speed where needed, ideal for flatter conditions. The proprietary EZ Drop™ tine system has a one-step tine engagement lever from the handle that permits the operator to pass over obstacles in the aeration path for uninterrupted aeration.

The aerator is powered by a 163cc Honda GX160 engine and is easy to manoeuvre without lifting, requires no add on weights, has no chains and is simple to service.

A built-in quick release receiver hitch offers simple conversion to a ride-behind unit when adding an optional chariot. This useful accessory reduces operator fatigue and increases productivity.

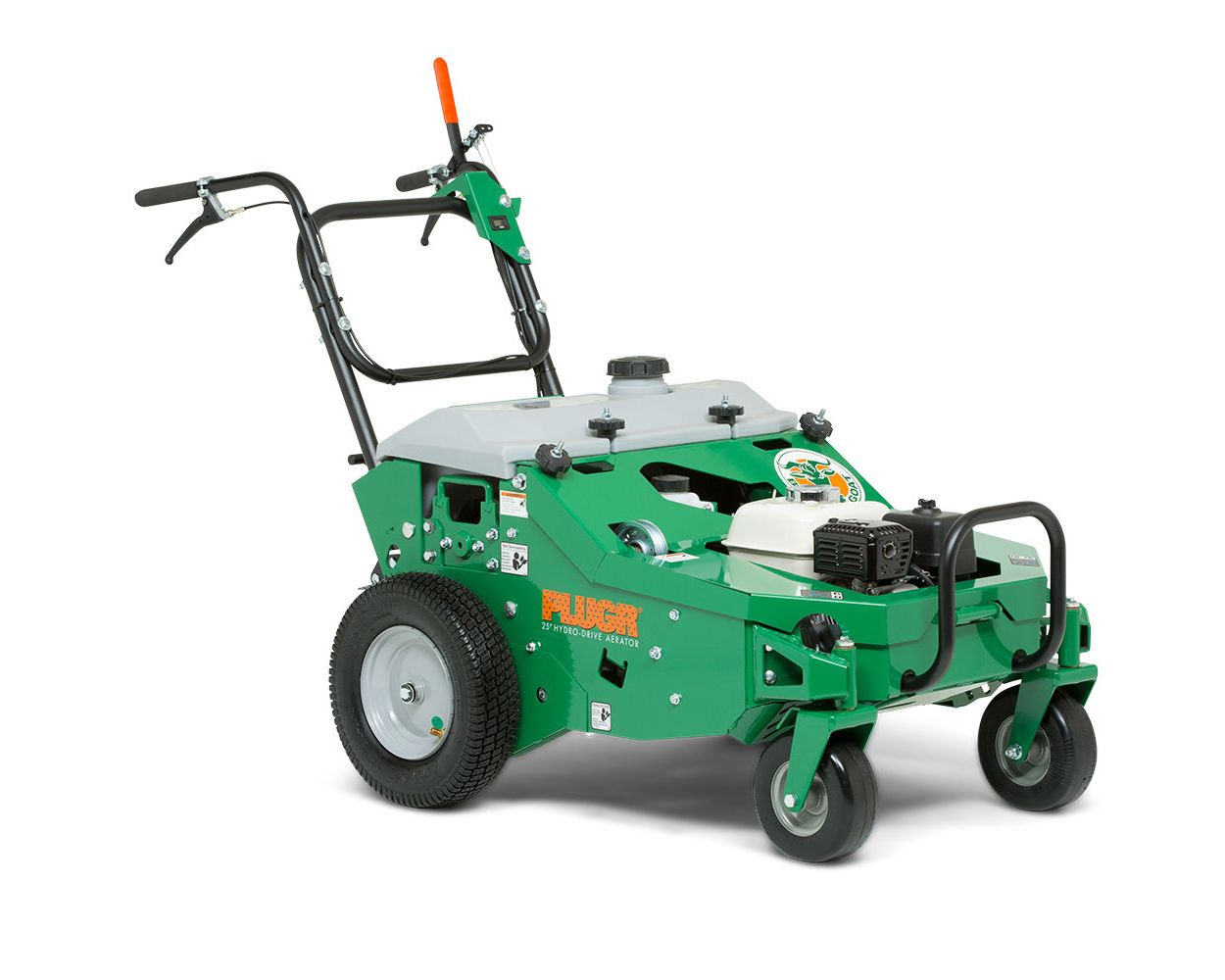

NB: Images for illustration purposes only show the PL2501SPV model with Briggs & Stratton engine.

Specification

More Information
Brand	Billy Goat Plugr
Engine	Honda
Engine Model	GX160
Engine Type	Air-cooled, 4-stroke, OHV
Displacement	163cc
Rated Power Output	3.6kW @ 3,600rpm
Horsepower	Net: 4.8hp
Torque	7.6lb-ft (10.3Nm) @ 2,500 rpm
Fuel Tank Capacity	3.1L
Oil Tank Capacity	0.58L
Air Filter	Dual element
Lubrication	Splash
Start Method	Recoil
Ignition System	Transistorised magneto
Propulsion	Self-propelled single speed
Transmission	Hydrostatic
Productivity	Up to 35,000sq.ft/hr
Aeration Width Per Pass	64cm / 25"
Coring Tines	8, 5/8" diameter
Core Spacing	3.63" x 6"
Coring Depth	Up to 2.75"
Tank Capacity	18L
Wheels	Rear: 15" foam-filled, Front: pneumatic casters
Handle Type	Foldable
Assembled Dimensions	L: 67.5" x W: 32.5" x H: 41.25"
Weight	163.0kg
Promotional Image	/p/l/plugr_2_1.jpg

Features

	Cam-Driven Aerators Punches tine core depths to 7cm even in hard soil conditions. Spring loaded rotor assist for aggressive forward motion of the tine rods. Tensile Hardened Thin Wall Tines Simple, durable screw-in design makes service simple. Six tines on PL25 Series.
	Variable Aeration Density (VAD™) Creates 2-10x more holes than drum models in one pass. Eliminates double aerating and offers ability to do patch repair and seed bed prep in one pass.
	Water Weight Tank Positioned directly over tines for better aeration depth and wheel traction in drier conditions. Full tank capacity is 18 litres.
	In-Ground Turning Provides unmatched manoeuvrability, ergonomics, ease of turning, improved production, reduced downtime and turf repair when compared to drum aerators.
	Proprietary Pending EZ Lift™ Rear Foot Pedal Conveniently lifts and locks tines for transport or when reversing.
	Simple, Intuitive, Hydro-Drive Controls Variable speed self-propelled rear wheel drive and front casters allow you to feather the speed with finger tip control. Reduces fatigue, increases productivity and provides enhanced traction while aerating on slopes. Reverse feature (with tines up) for added maneuverability and ease of loading/unloading.
	Proprietary EZ Drop™ Tine Engagement Depressing the orange tine lever releases the tines from the lifted locked position and engages the tining action. When the tine engagement handle is released, tining action stops and the tines drag across obstacles in the aeration path for uninterrupted aeration and increased productivity.
	No Tool, Flip-Up Hood For best in class access to the inside of the machine for easy service plus improved belt access.
