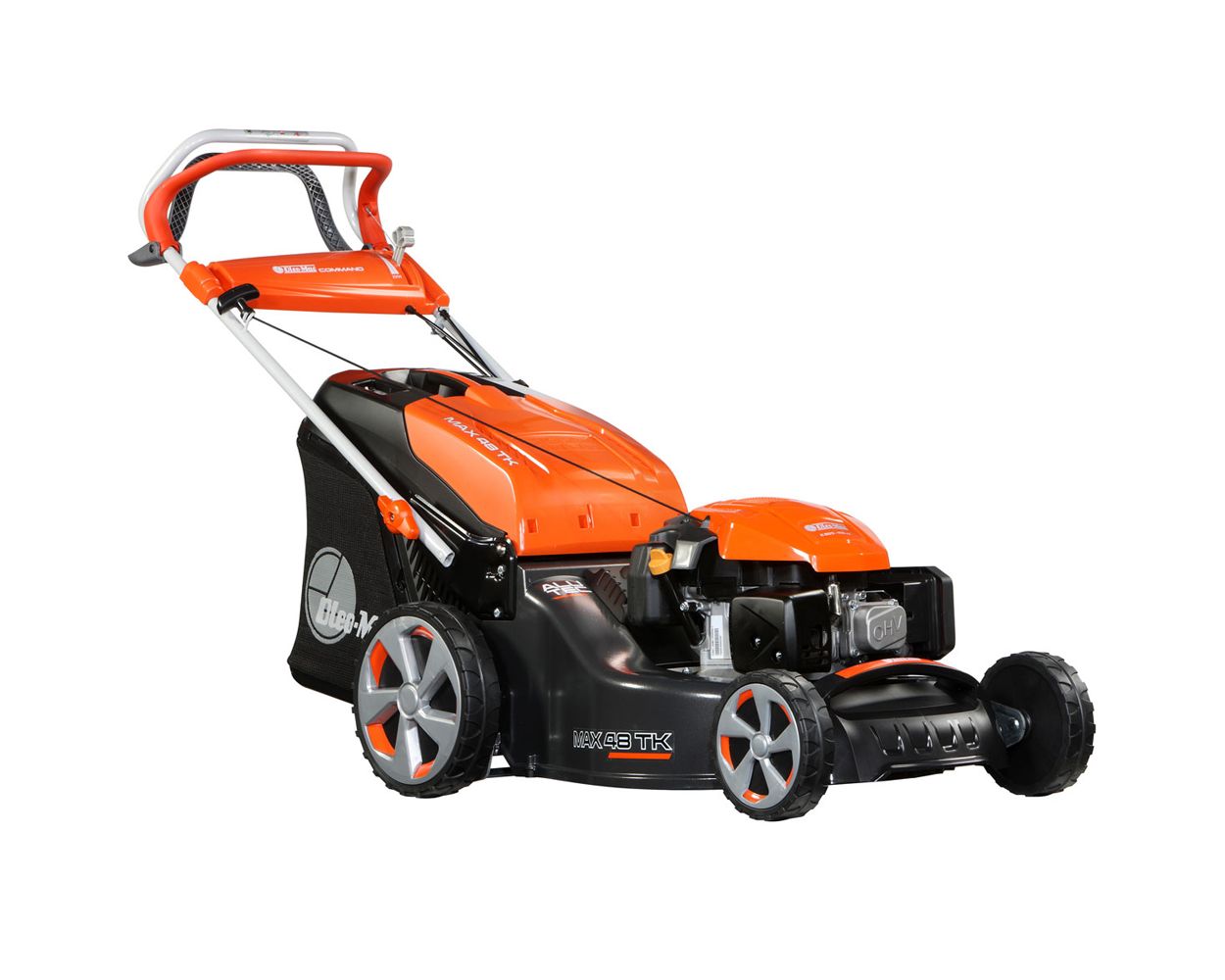

Oleo-Mac Max 48 TK Allroad Aluminium Self-Propelled Petrol Lawn Mower

Description

The Oleo-Mac Max 48 Series of professional lawn mowers with die cast aluminium deck is designed to meet the needs of the discerning user looking for maximum performance in both collecting and mulching modes.

These machines are characterised by a superior grass collecting capability, thanks to an aerodynamically moulded deck that optimises the flow of air and clippings into the grass catcher. High strength, innovative styling, operator comfort and reliability make this range of lawn mowers unique in their class and are ideally suited for daily use by home users and lawn care professionals.

Cut grass is finely chopped by the factory-fitted mulch blade so that the volume of the clippings in the 80 litre grass catcher is much reduced. Fast conversion to mulching mode can be achieved with the optional mulch plug accessory which closes off the catcher outlet so clippings are forced to swirl for longer under the deck and chopped repeatedly by the mulching blade. The finely fragmented clippings are spread over the lawn, decomposing quickly to turn into a natural fertiliser, adding moisture and organic substances to help condition the turf.

The Oleo-Mac Max 48 TK Allroad Aluminium petrol lawn mower is self-propelled and powered by a 159cc Emak K 650 OHV engine.

With a 46cm width of cut, the height of cut can be centrally adjusted from 28mm to 75mm to suit conditions. The metal wheels turn on ball bearings to ensure long life and increased durability. The Oleo-Mac Max 48 TK Allroad Alu professional lawn mower is ideally suited to areas from 2000m² to 2400m².

Specification

More Information
Brand	Oleo-Mac
Recommended Lawn Area	2000m² to 2400m²
Engine	Emak
Engine Model	K 650 OHV
Engine Type	Petrol, 4-stroke
Displacement	159cc
Start Method	Recoil
Throttle Control	No
Propulsion	Self-propelled single speed
Ground Speed	3.6km/h
Cutter Deck	Aluminium
Width of Cut	46cm / 18"
Minimum Cutting Height	28mm
Maximum Cutting Height	75mm
Cutting Height Adjustment	Central
Grass Collector	Fabric grass bag with hard top
Collector Capacity	80L
Fill Level Indicator	Yes

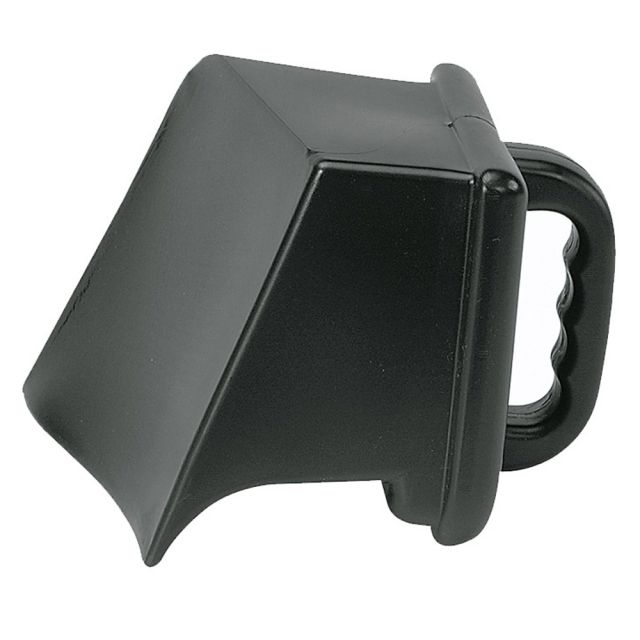

Mulch Plug	Available as accessory - 66090147R
Side Deflector	Not available
Handle Type	Height adjustable, folding
Wheels - Front	200mm
Wheels - Rear	280mm
Weight	42.4kg
Warranty	3 years
Promotional Image	no_selection

Features

	The 4mm guage diecast aluminium deck ensures low weight with high strength and excellent corrosion resistance. The mulching blade supplied as standard and the streamlined deck ensure optimal cutting efficiency and perfect feed to the grass catcher.
	Strong and versatile 80 litre capacity plastic and fabric grass catcher, which can be assembled without tools, has full-bag indicator.
	Mulching kit as standard. The grass clippings are broken down into fine particles and released back onto the turf to keep the lawn clean and uniform after each cut.
	Centralised cutting height adjustment device controlled by a rugged and ergonomic handle. This offers five different height options that can be selected easily and effortlessly from a minimum 28mm to a maximum of 75mm.
	Large wheels (280mm rear and 200mm front) with ball bearings and new tread profile for smoother movement, optimal traction on all types of terrain and enduring quality through time.
	Engine brake and traction levers in plastic, for a consistently safe and comfortable grip. Adjustable three-position ergonomic handlebar means the mower can be controlled more easily and with greater precision, with the handlebar height adjusted to match the user's stature.
	Front bumper with integrated carry handle provides greater protection of the deck against accidental impact.
	Allroad Aluminium Self-Propelled Lawn Mowers with Aluminium Deck High strength, innovative styling, operator comfort and reliability make these machines unique in their class. The 4mm gauge die cast aluminium deck ensures excellent resistance to impact and corrosion protection.
	Pluscut Multi-function lawn mowers with collection or mulching system (in mulching operation the grass cuttings are finely shredded and distributed over the lawn surface where they decompose rapidly to become an efficient, natural fertiliser). The machine is converted to mulch-only operation by closing off the rear duct with a special plug, included as standard.
	Sharp-pro Range Sharp-pro is a range of no-nonsense everyday tools for the busy professional, these are machines that stand out for the toughness of their components, their high performance and their matchless long-term durability. Specific materials used in construction guarantee unwavering quality even when tackling the most severe and lengthy of tasks, like forestry work and the clearance of uncultivated areas or scrub.

Manuals

OWNER'S MANUAL

Brand

ABOUT OLEO-MAC.....

Gardening, farming and forestry tools for home users and professionals. Oleo-Mac covers all shades of green.

With different models to meet each user’s needs but all sharing the same exceptional quality standards in terms of performance, reliability, comfort and safety. The accessories range is offered as an extension and completion of the product range. Ergonomics, quality and styling are essential ingredients of the development of Oleo-Mac’s products: primarily designed to meet the needs of professionals whilst also taking care of the requirements of less expert users who insist on the very best.

A truly comprehensive range of superb quality products at highly competitive prices – that’s the Oleo-Mac formula.

The Italian Oleo-Mac brand is distributed by The Emak Group which is active in the development, production and worldwide sale of an extensive range of products for three business segments:

Outdoor Power Equipment

Products for gardening, forestry and agriculture, including brushcutters, law mowers, garden tractors, chainsaws, rotary tillers and rotary cultivators.

Pumps and High Pressure Water Jetting

Products for agriculture, including centrifugal and diaphragm pumps for crop spraying and weed control;
Products for industry, including pumps for industrial applications and high and very-high pressure systems;
Products for cleaning, namely professional and semi-professional high-pressure washers, floor scrubber-dryers and vacuum sweepers.

Components and Accessories

Products such as strimmer line and line heads for brushcutters, accessories for chainsaws, guns, valves and nozzles for high-pressure washers and for agricultural applications, plus precision farming products (sensors and computers).


A range of machines aimed at the home user, for tidying and cleaning the garden, cutting hedges and small trunks or stems, and DIY jobs in general. Characterized by lightweight and compact construction, to make the task of the operator that much simpler. Easy to start, easy to use, easy to maintain: these are the ideal tools for getting things done quickly and neatly around the home.	Solid and dependable, these are machines designed for heavy and frequent use in countryside environments: clearing overgrown and uncultivated areas, pruning and cutting firewood, crop irrigation and disinfestation tasks. Designed adopting solutions certain to ensure high work rates and maximum durability over time.	No-nonsense everyday tools for the busy professional, these are machines that stand out for the toughness of their components, their high performance and their matchless long-term durability. Specific materials used in construction guarantee unwavering quality even when tackling the most severe and lengthy of tasks, like forestry work and the clearance of uncultivated areas or scrub and undergrowth.
