SCH GATV 500kg ATV Trailer
You Save 10% (£182.71)
Currently, people are looking at this product
 |
FREE DELIVERY TO ENGLAND AND WALES* * Scotland incurs an additional delivery charge |

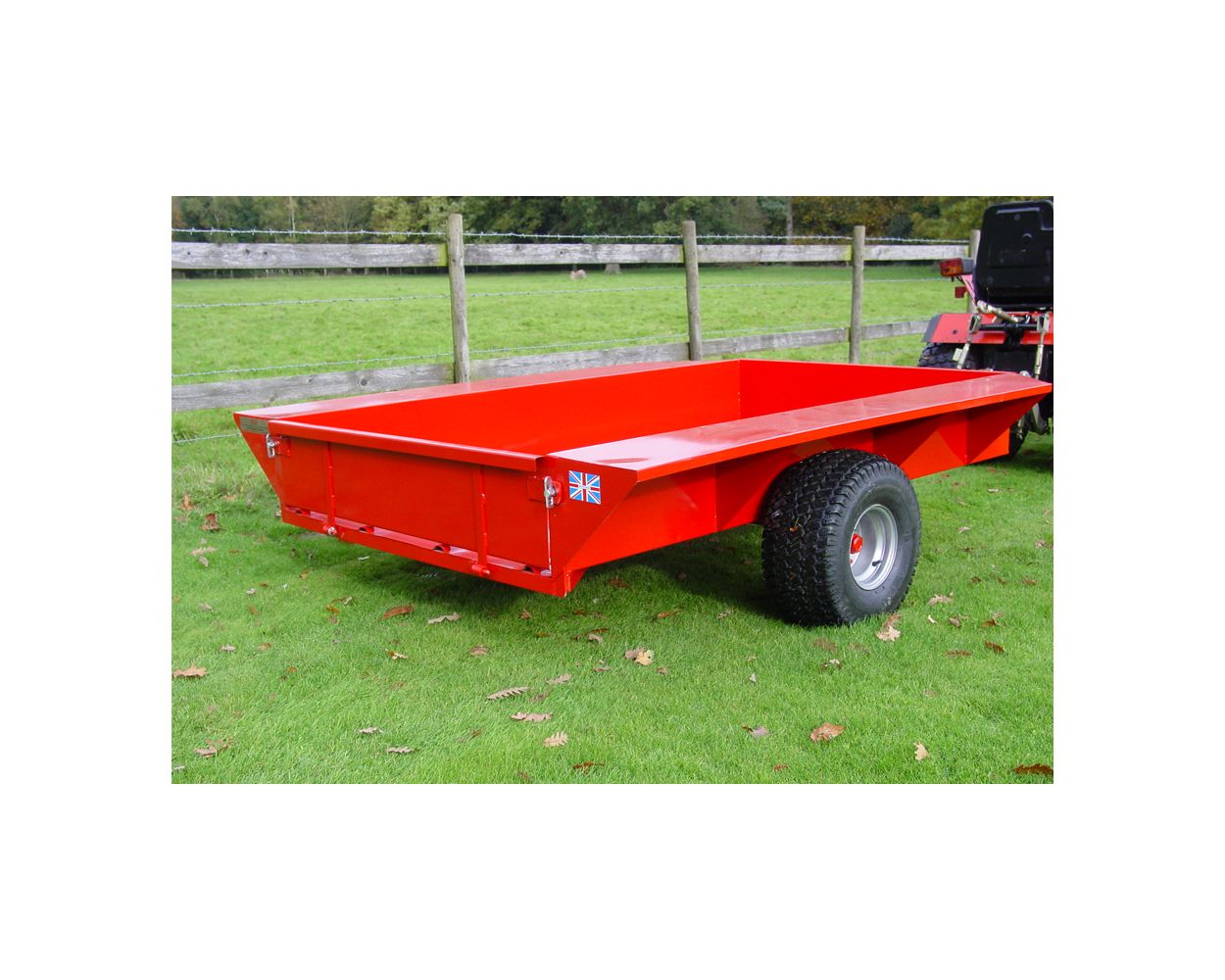

The GATV trailer from SCH is designed to tow mainly behind all terrain vehicles. It can also be used with compact and large garden tractors.
With a carrying capacity of 500kg (10cwt), this ATV trailer has 12" high sides and the tailgate is hinged. The mudguards run the who length of the trailer to give extra carrying capacity for loads such as hay and straw bales, and oversized loads.
The trailer has large flotation wheels with four-stub hubs, giving it huge stability when towed at ATV speeds.
The trailer is fitted with a 50mm ball hitch as standard. Other hitch types are available.
Optional extras:-
- Four 450mm (18") extension sides
- Four 915mm (36") extension sides
- Loading ramp GATVLR (order at time of purchase only)
Please call us to ask about the following optional extras:
- Jockey wheel
- Animal cage
- Water tank
- Lights
| Propulsion - Filter | Towed |
|---|---|
| Brand | SCH (Supplies) |
| Capacity | 500kg / 10cwt |
| Bed Size | Height of sides: 300mm / 12"Width of body: 1750mm / 70"Internal width: 1245mm / 49"Internal length: 2200mm / 86" |
| Tipping | No |
| Wheel Size | 22 x 10-8 LGP pneumatic with bearings |
| Tow Hitch | 50mm ball hitch fitted as standard |
| Assembled Dimensions | Overall length: 3000mm / 118"Overall width: 1750mm / 70" |
| Warranty | 1 year manufacturer's |
| Promotional Image | /b/r/british-built_29.jpg |
ABOUT SCH SUPPLIES.....
They say that necessity is the mother of invention – and this is certainly true of the birth of SCH (Supplies) Ltd.
Back in 1986, the late founder and former managing director Andrew Rodwell became frustrated at the lack of suitable lawn care attachments to fit to his garden tractor. Not being one to back away from a challenge, Andrew set about designing and manufacturing the attachments he wanted and started selling them to friends who had encountered the same problem.
Today SCH Supplies designs and manufactures premium garden machinery and towed lawn equipment for both domestic and commercial use. Based in the UK, the company is proud to offer a wide range of robust, British-made tools – engineered to meet the demands of estates, sports grounds, golf clubs, and equestrian centres.
Built to perform and made to last, SCH equipment is designed for versatility, durability, and ease of use. Whether you're maintaining a paddock, sweeping an arena, or keeping artificial turf in top condition, SCH has the tools you need. Our product range includes flail mowers for rough terrain and dense vegetation, paddock sweepers for effortless cleaning and grass collection, scarifying rakes and lawn dethatchers for healthy turf maintenance, water bowsers and estate waterers for efficient irrigation, chain harrows, manège levellers, and ATV sprayers for equestrian and arena upkeep, as well as grass rollers, garden carts, and custom-built equipment.
Each product is expertly crafted in SCH's UK workshop using high-quality materials and is fully supported by its nationwide service and spare parts availability.
Whether you manage a smallholding or a large estate, SCH understands that every customer’s needs are unique. Its modular and customisable equipment can be configured to suit various towing vehicles – from ride-on mowers to ATVs and compact tractors.
SCH has over 30 years of engineering excellence, a wide range of products in stock and ready to despatch, outstanding customer service and technical advice, and is proudly manufactured in the UK. SCH Supplies is trusted by groundskeepers, landscapers, and private landowners across the country.
Based in Ipswich, Suffolk, the company has grown to 20 employees who design, manufacture and deliver a vast range of products, not to mention the 'one offs'. If required, SCH will work with a customer to build a bespoke garden machine to agreed specifications.
Please Note: Due to the nature of this specialist equipment, SCH Supplies builds its products to order and prefers to deliver using its own transport, which is why we quote an extended lead time.
British Products for Outdoor People
IMPORTANT DELIVERY INFORMATION FOR SCH ORDERS
FREE DELIVERY TO ENGLAND AND WALES!
Delivery to England and Wales is FREE of charge. Scottish postcodes incur an additional delivery charge which will be calculated in your shopping basket.
BUILT TO ORDER
SCH (Supplies) manufactures and builds all its products to order and they are delivered "ready for use".
Personal Delivery
Due to the nature of this specialist equipment and wherever possible, your order will be delivered on SCH's own transport with prior notice.
ANTICIPATED DELIVERY TIME
England & Wales
Estimated delivery time is currently approximately two to three weeks from placing your order.
Scotland
SCH makes a delivery run to Scotland every six weeks, so please allow longer for your order to arrive. Extra carriage charges may apply depending on your postcode.
For Greater Distances
Occasionally the product is palletised and despatched by a third party carrier.
-

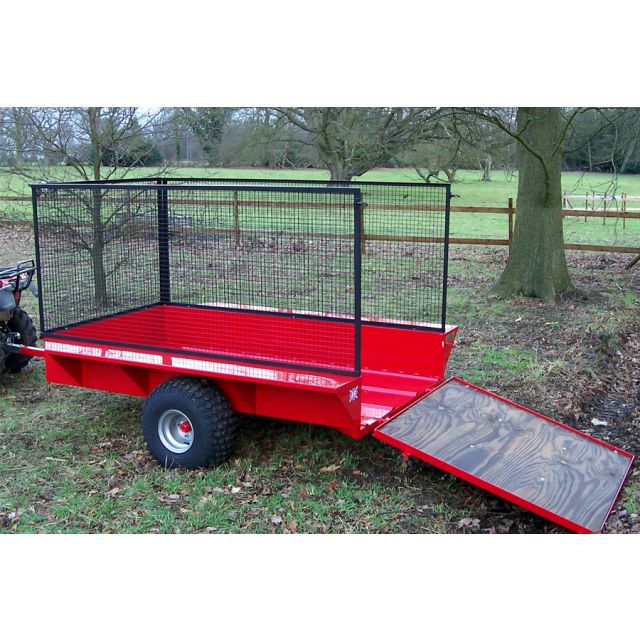

![SCH 36" Extension Sides for GATV Trailer]()
SCH 36" Extension Sides for GATV TrailerSpecial Price £589.00 (inc VAT) Regular Price £654.30 (inc VAT) -

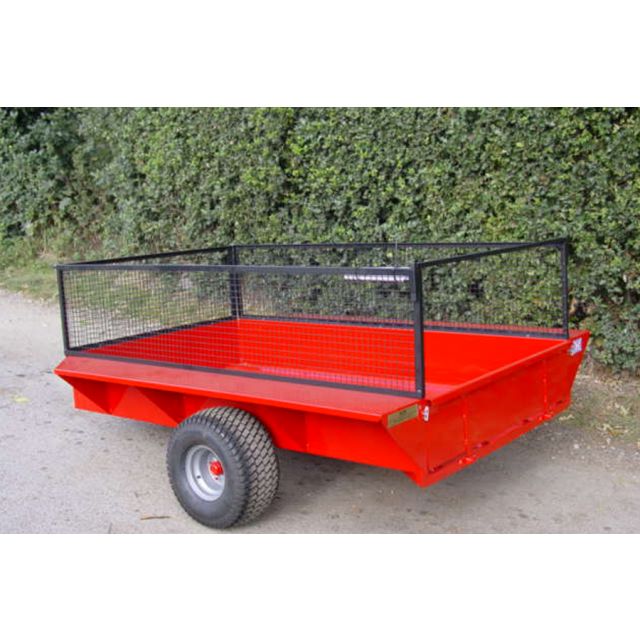

![SCH 18" Extension Sides for GATV Trailer]()
SCH 18" Extension Sides for GATV TrailerSpecial Price £406.00 (inc VAT) Regular Price £451.52 (inc VAT)
You may also be interested in
-

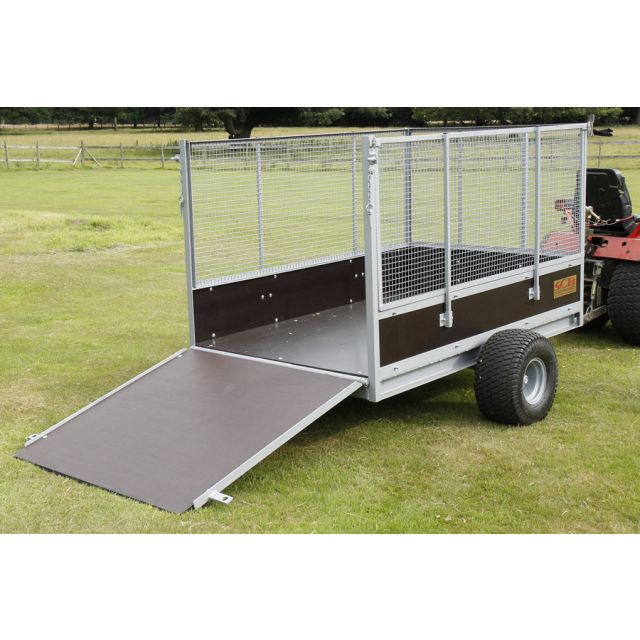

![SCH GPATV 750kg General Purpose ATV Trailer]()
SCH GPATV 750kg General Purpose ATV TrailerAs low as £2,539.00 (inc VAT) Regular Price £2,820.76 (inc VAT) -

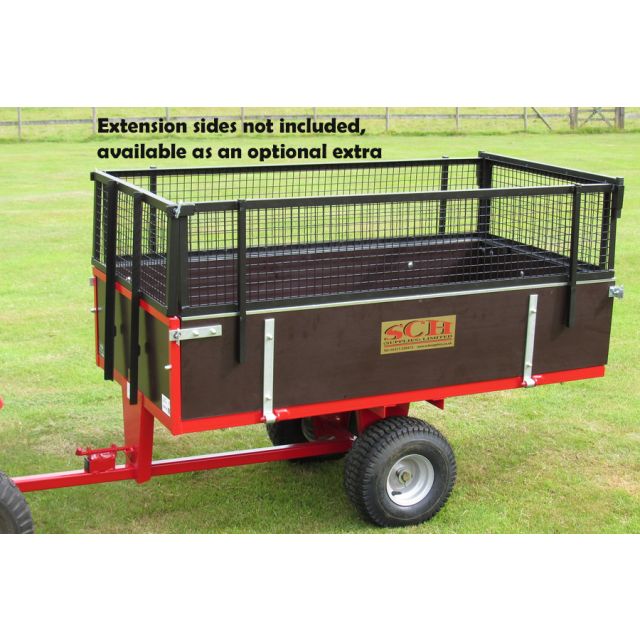

![SCH GWTS10 500kg Two-Wheel Timber Tipping Trailer]()
