SCH Towed Sprayer 180L GWCS9 Spray Width 48"-96"
SCH Towed Sprayer 180L GWCS9 Spray Width 48"-96" SCH Towed Sprayer 180L GWCS9 Spray Width 48"-96" SCH Towed Sprayer 180L GWCS9 Spray Width 48"-96"
RRP: £1,075.20
OUR PRICE: £889.00 (inc VAT)

* Required Fields

IN STOCK - DELIVERY TIME: Usually 1-2 working days (Monday - Friday)

Free delivery on garden machinery orders over £50.

Check Postcode

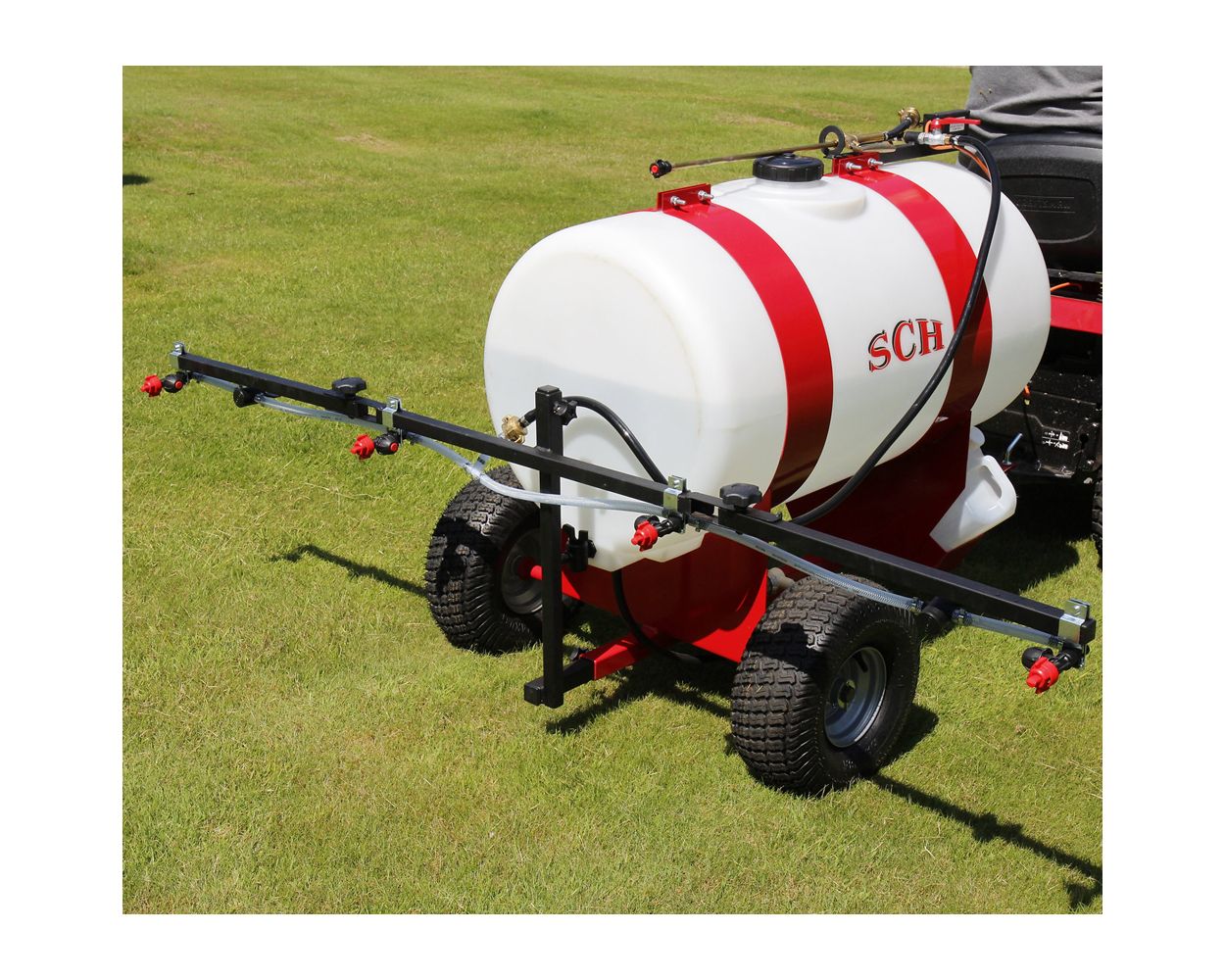

The GWCS9 sprayer is an extremely versatile sprayer ideally suited to the application of herbicides and fertilisers to both large and small areas.  The nozzle at each end of the boom is mounted on a swing back arm so in the event of the boom coming into contact with a tree or shrub, it will simply swing back instead of breaking off.  Once the obstacle is passed, the boom end flips back to its normal position and spraying resumes.

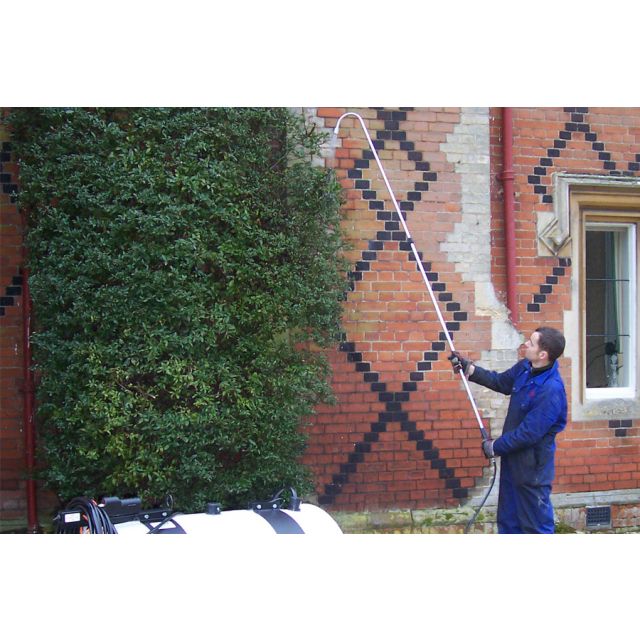

The 12 volt diaphragm pump is powered from the lawn tractor's battery.  In line filters are incorporated to prevent, as far as possible, irritating stoppages from blocked nozzles.  The spray nozzles are mounted on anti-drip holders preventing the liquid from continuing to flow when the pump is shut down.  A brass hand trigger lance, complete with quick and simple twist connectors, is supplied with this sprayer.  The lance is an useful tool for spot spraying and around trees and shrubs.  A 5 litre wash bottle is mounted on the chassis of the sprayer for dowsing down in case of skin contact with spray liquid.

The maximum spray width is 2440mm (96") and, with tow wing booms folded back and switched off, the spray width reduces to 1220mm (48").

Product specification

Brand: SCH (Supplies)
Capacity: 180 litres / 40 gallons
Pump: 12 volt,
Delivery: 7 litres per min at 50psi
Max Pump Pressure: 4 bar
Spray Width with Boom: 244cm / 96"
Width without Boom: 86cm / 34"
Boom Width Folded: 122cm / 48"
Hand Boom Reach: 50cm / 20"
Wheels: 15/.600 x 6
Hitch: Clivis hitch standard, 50mm ball hitch optional
Weight: 45kg
Warranty: 1 year


British Products for Outdoor People

They say that necessity is the mother of invention – and this is certainly true of the birth of SCH (Supplies) Ltd.

Back in 1986, the late founder and former managing director Andrew Rodwell became frustrated at the lack of suitable lawn care attachments to fit to his garden tractor.  Not being one to back away from a challenge, Andrew set about designing and manufacturing the attachments he wanted and started selling them to friends who had encountered the same problem.

SCH Supplies Limited now has over thirty years' experience in the manufacture of quality grounds care machinery and is proud of the fact that 90 per cent of its products are British built. SCH products are robustly made and, in most cases, very simple to use. The company can supply almost everything you could possibly want to tow behind your estate or garden tractor, including a range of lawn care maintenance machines, waterers, sprayers and trailers, as well as specialist equestrian and sports surface machines.

Based in Ipswich, Suffolk, the company has grown to 20 employees who design, manufacture and delivery a vast range of products, not to mention the 'one offs'. If required, SCH will work with a customer to build a bespoke garden machine to agreed specifications.

Please NoteDue to the nature of this specialist equipment, SCH Supplies builds its products to order and prefers to deliver using its own transport, which is why we quote up to a three week lead time.
