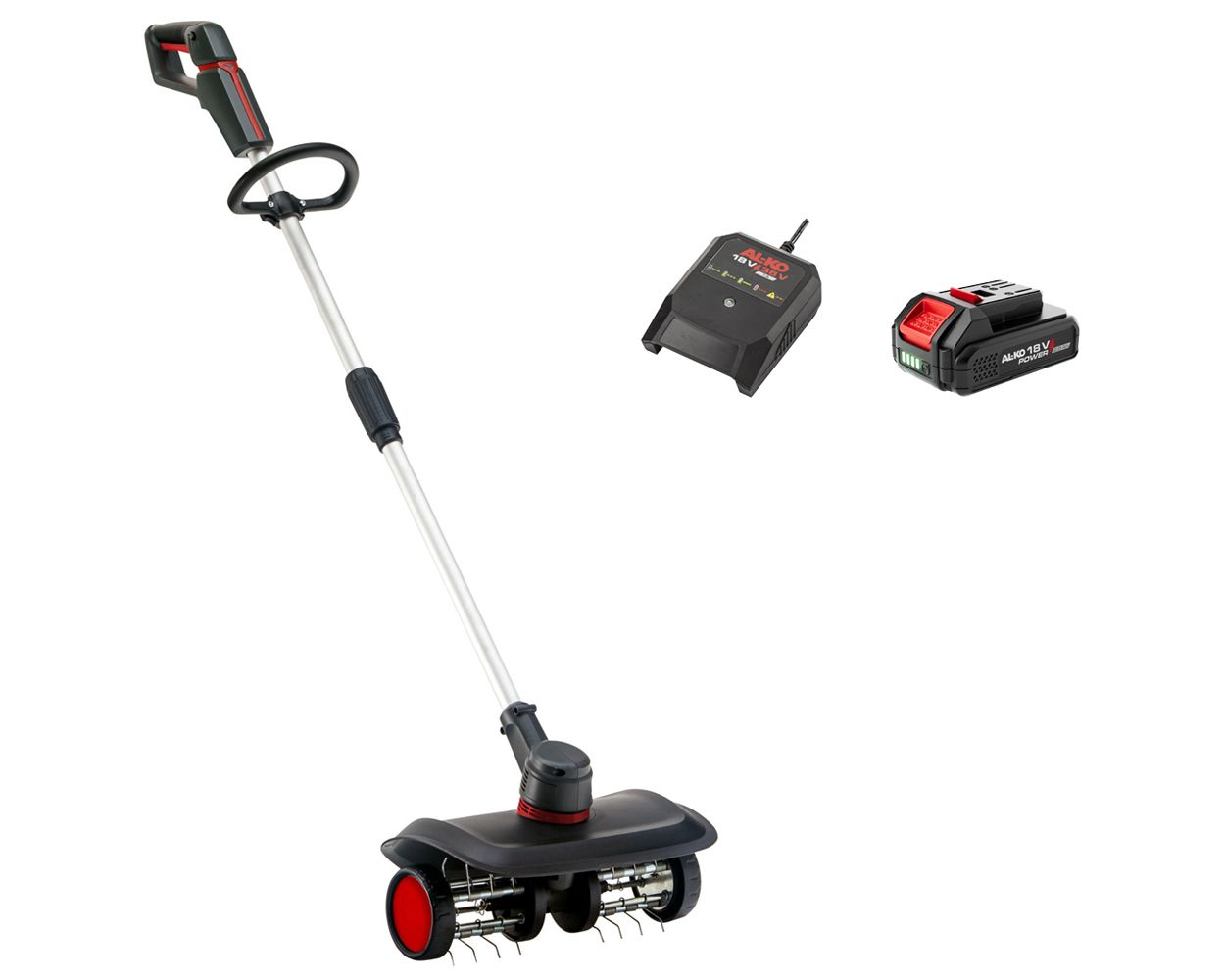

AL-KO Comfort 18V/36V ARD 1835 Cordless Lawn Raker (with 2Ah Battery & 1A Charger)

Description

With the ARD 1835 battery-powered lawn aerator from AL-KO, you can give your soil plenty of "air to breathe" again. It aerates your lawn while simultaneously removing moss and thatch. It's also the perfect tool for weed control in your vegetable garden. The lawn aerator breaks down coarse soil material and optimally prepares your vegetable garden for sowing.

This versatile garden tool with its split shaft has a working width of 35cm and weighs only 4.8kg. The 24 spring steel tines, which rotate at a speed of 250rpm, allow for highly efficient work, penetrating the soil to a maximum depth of 20mm. The split shaft ensures saves space for transport and storage. The soft-touch handle, combined with the second loop handle, provides comfortable operation.

Your versatile garden helper for lawn and soil raking - the AL-KO ARD 1835 is extremely lightweight, space-saving for storage, and emission-free.

Various battery voltage options are available: 2.0Ah, 2.5Ah, 4.0Ah, 5.0Ah and 8.0Ah li-ion batteries all have a high energy density, are long lasting, have no memory effect, and exhibit low self-discharge. Only compatible with all AL-KO 18V and 36V devices in the "1 Battery - 2 Voltages" series.

An optional wall mount (AK114184) is also available for space-saving storage.

NB: 2.0Ah battery & 1A single battery charger INCLUDED.

Specification

More Information
Brand	AL-KO
Model	114140
Bare Tool Model No	114139
Battery Housing	Single port
Battery	B40.6 Li (included)
Battery Voltage	Compatible with AL-KO 18V/36V "1 Battery - 2 Voltages" Series
Rated Voltage	18V
Battery Capacity	2.0Ah
Running Time	8.0Ah/4.0Ah battery: 80 mins 5.0Ah/2.5Ah battery: 50 mins 4.0Ah/2.0Ah battery: 40 mins 2.5Ah battery: 25 mins 2.0Ah battery: 20 mins
Battery Charger	C40.6 Li 1A (included)
Battery Charge Time	8.0Ah/4.0Ah battery: 500 mins 5.0Ah/2.5Ah battery: 310 mins 4.0Ah/2.0Ah battery: 250 mins 2.5Ah battery: 155 mins 2.0Ah battery: 125 mins
Motor	180W
Working Width	2 x 170mm = 35cm
Working Depth	20mm
Height Adjustment	No
Tines	24 spring steel
Rotation Speed	250 min-1
Debris Collector	N/A
Housing Material	Plastic
Shaft Type	Split
Handle Type	Soft touch, secondary loop
Sound and Noise Data	Sound pressure level: 60.2dB(A) (K = 3.0dB(A)) / Sound power level: 73.6dB(A) (K = 0.66dB(A))
Vibration Level Data	0.43m/s² (K = 1.5m/s²)
Weight Without Battery	4.8kg
Assembled Dimensions	L: 152cm x W: 38cm x H: 33cm
Global Trade Item Number	4003718066562
Warranty	Manufacturer's - Domestic: 2 years / Commercial 90 days (T&Cs apply)
Promotional Image	/a/l/al-ko-18v-36-v_8_1.jpg

Manuals

OPERATOR'S MANUAL

Brand

ABOUT AL-KO GARDEN + HOBBY.....

Founded in 1931 by Alois Kober as a small metalworking shop in southern Germany, AL-KO has become a global player comprising of more than 50 sites in 30 countries. The AL-KO Group today employs over 4,200 people worldwide covering three business divisions - Vehicle Technology, Garden + Hobby, and Air Technology. All AL-KO employees take great pride in the quality products they manufacture.

For greater enjoyment in the garden

For more than 50 years, AL-KO has been developing and designing innovative garden tools for an extremely wide range of requirements and applications. Not only do AL-KO tools reflect its many years of expertise in technology and function, they also set new standards in terms of design.

When the best is expected

With Germany efficiency, AL-KO's research and development engineers create pioneering garden tools from hundreds of individual parts. Materials of the highest quality, ingenious technology, perfect ergonomics and a sure feel for form and detail make AL-KO's garden tools unmistakable.

The rigourous quality requirement that characterises the AL-KO band is guaranteed through its comprehensive technology programme that is consistently planned and implemented by AL-KO development engineers, designers and technicias - from the first design, to prototype construction and the end product.

Why not take the plunge into the world of AL-KO and get to know its high-quality products - without doubt you will find just the right implement for your requirements. AL-KO has everything you need for the garden, whether you are mowing, trimming, shredding, mulching, scarifying, lawn raking, cultivating, splitting or clearing ...
