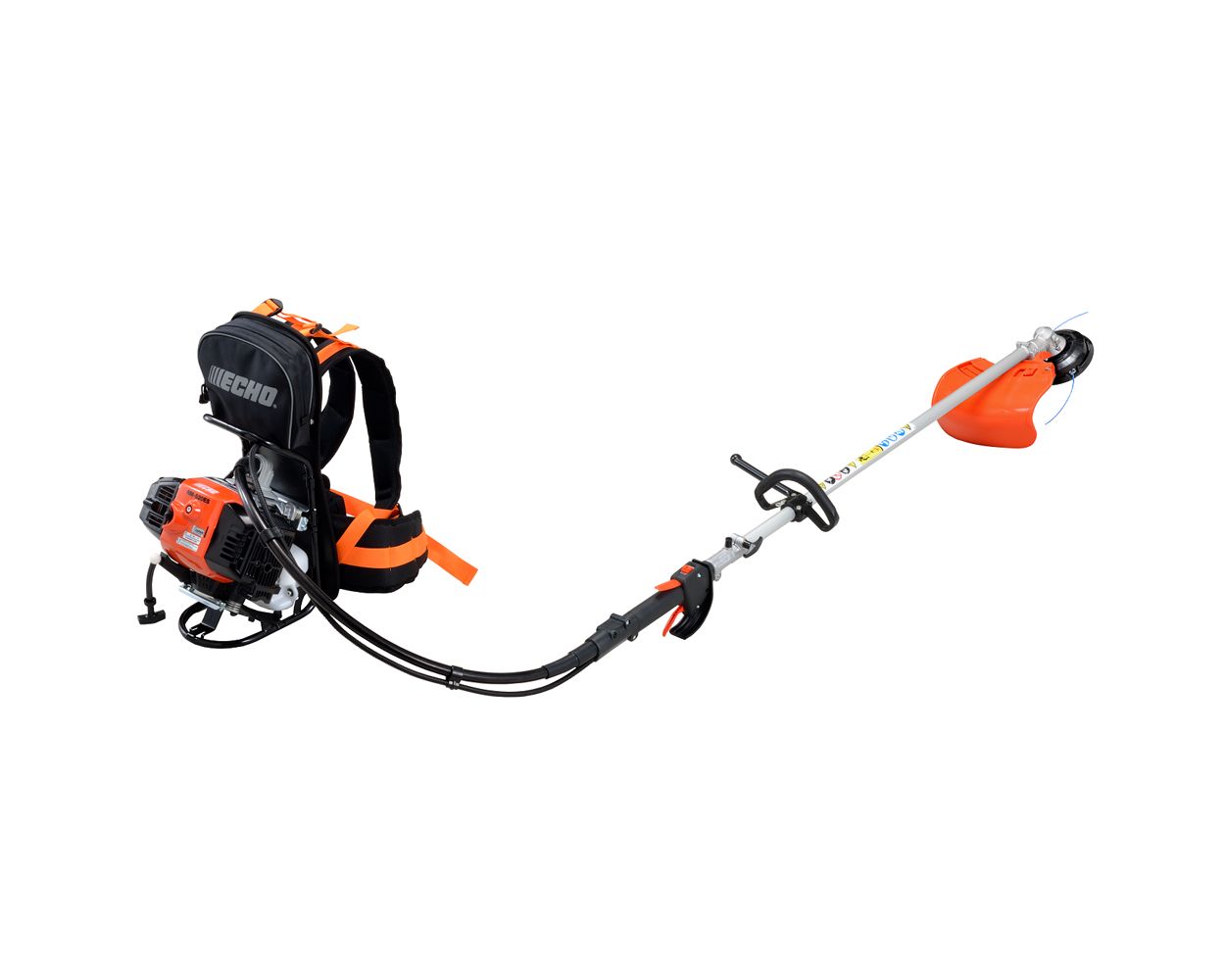

Echo RM-520ES Backpack Brush Cutter

Description

The Echo RM-520ES is an extremely powerful and lightweight backpack brush cutter that has been designed specifically for heavy-duty commercial work.

The backpack design supports the engine's weight and allows for a robust anti-vibration system. This design is ideal for use on varying terrain such as banks, hills, steep slopes and other difficult-to-reach areas. The RM-520ES offers more manoevrability, power and comfort and less fatigue.

The Echo RM-520ES is a low vibration professional brush cutter featuring a twin nylon line head, high tensile steel drive shaft, loop handle and ergonomic design making it a must for large garden/estate owners.

X-Series means Echo's best-in-class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. X-Series engines make this line-up exceptional. They offer a revolutionary combination to get jobs done faster with less fatigue.

Specification

More Information
Brand	Echo
Engine Type	2-stroke, air-cooled, single cylinder
Displacement	50.2cc
Rated Power Output	2.2kW / 2.9px
Start Method	Recoil
Start Assist System	ES-start / S-start
Gear Ratio	1 : 1.33
Fuel Tank Capacity	1.07L
Fuel / Oil Mixture	50 : 1
Fuel Consumption	1.23l/h @ maximum engine power
Clutch	Centrifugal, 2-shoe pivot
Carburettor	Diaphragm, horizontal-draft
Spark Plug	NGK BPMR8Y
Brush Cutter Blade	No (arbour diameter for blade: 25.4mm)
Nylon Line Head	Twin nylon line / Z5 M10L / EA-X047-000332 Z5
Rotating Direction	Counterclockwise as viewed from top
Shaft Diameter	28mm
Drive Shaft Diameter	8.mm
Handle Type	Front: crescent loop with cushion grip / Rear: Integrated control grip with cushion
Vibration	Nylon head - Left handle: 5.3m/s / Right handle: 4.0m/s
Sound and Noise Data	Nylon head - Sound pressure level: 97.5dB(A) / Sound power level: 110.6dB(A)
CO²	825g/kW.h
Assembled Dimensions	L: 2824mm x W: 449mm x H: 564mm
Weight	11.9kg
Warranty	Manufacturer's - 5 years consumer, 2 years commercial (subject to registration within 30 days)
Promotional Image	/e/c/echo-x-series_11.jpg

Features

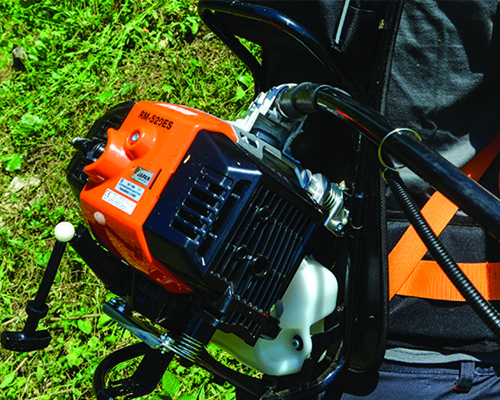

Professional engine A powerful 50.2cc professional-grade engine allows you to clear tough brush and long, dense grass in one pass.
	Features for convenience The removable tool bag provides convenient storage when you're working Split-boom design makes for easy storage and transportation Throttle trigger protection protects the throttle from outside contact Outstretched starter grip for operator convenience
Features for performance A heavy-duty, two-stage air filter provides greater durability and filtration than a standard filter.
	Other key features Backpack design Loop handle Nylon line cutting head Features one of Echo's most powerful engines Echo's patented easy start system for quick, effortless starting Vibration reduced by Echo anti-vibe technology
Echo X-Series X-Series means Echo’s best in class products. More power, lighter weight and performance that will noticeably increase your productivity. Designed for professionals who demand the best and highest quality tools. Best-in-class features Each model has specific, best-in-class features that are designed to help green space professionals perform their jobs better in their respective applications. Being light weight and more powerful with features like vibration reduction and longer run times all contribute to getting one job done faster and moving onto the next. Withstand tough conditions Echo X-Series equipment is so extreme, that only the hardest working and committed can challenge the limits of its capabilities. The equipment is tested in extreme conditions to assure easy starting and smooth operation, whatever the environment.

Video

Manuals

SERVICE DATA

Brand

ABOUT ECHO...

In a world that’s constantly changing, one thing you can depend on, is your Echo tool.

For over 75 years, Echo has been building tools for commercial users around the world. From its humble beginnings in Japan with a simple handheld crop duster, to creating the world’s first ever power blowers in 1975, Echo has become a technological leader and well respected global brand.

As technology and users’ needs evolve, so too does Echo, staying on the pulse of the industry through decades of expertise and by listening to the feedback we receive. Echo's aim is not to react to changes in the market, but to be at the forefront. It does this by putting its dedication to producing the highest quality products above all else. Echo petrol tools continuously exceed increasingly stringent emissions requirements yet retain the robust power and dependability Echo is renowned for. Echo is reaching into new technologies such as professional performance battery tools and robotics with the careful and precise consideration that makes all Echo products ones you can depend on; this is our priority.

In the line-up you will find our staple, professional engine products amongst new battery products aimed at professionals, and for the first time, a range aimed solely at domestic users. Echo believes that the technology is now ready to offer great benefits for both professional and domestic users alike. So, whether you’re a fully-fledged outdoor professional or someone newly inspired to transform your environment into something more, Echo guarantees a tool that’s been crafted with expertise and passion, a tool you can depend on.

PURCHASING ECHO PRODUCTS

Echo products come equipped with a range of unique product features designed to deliver ease and comfort for users.

Echo is successful in producing low vibration and low noise for power tools and are leaders in two-stroke power tool emission technology. Echo casts and machines every engine in Japan where quality and consistency are closely controlled. And to gain manufacturing efficiencies, they are assembled at various factories around the world to the same exact standards.

Leading in two-stroke power tool emission technology
Echo has the widest variety of emission compliant engines ever certified for EPA, CARB regulations and EU directives. Echo has condensed the years of development in the USA into the trademarked Power Boost Tornado technology, with a highly refined two-stroke engine design. This technology is now applied across the Echo Power Tool range, with engines delivering more power, higher fuel efficiency and better engine lubrication, while improving combustion and reducing exhaust emissions.

Low Vibration
Echo has taken up the challenge and is successfully producing measures for maximum control of vibration. Echo products are designed and manufactured for constant and lengthy use by professional users, with homeowners/domestic users also able to enjoy the benefits of commercial quality and features. Under independent tests, Echo brush cutters and Echo hedge cutters have produced the lowest vibration figures. ECHO is one of very few manufacturers who make its own engines, therefore every ECHO product is designed and tested as a completed package. This ensures high quality, ergonomically designed equipment, with maximum vibration controls.

Low Noise
With power tool equipment in use in public and residential areas, noise is of primary concern, Echo has developed the technology to control and minimise noise pollution. Echo designs and manufactures engines from scratch, matching low noise engines to low vibration products, by retaining complete manufacturing control.

ECHO Innovation - i-start
The i-start device makes first time starting of two-stroke engines a certainty, while removing 90% of the effort required. i-start stores the energy of one long and gentle pull, or two short pulls of the recoil starter and delivers it in a dynamic burst that starts the engine every time.

ECHO Innovation - Easy Start
Denoted by the ES symbol on the power tool, Easy Start works in a different way to i-start to minimise the effort required to start the engine. With Easy Start the pulling power needed on the starter rope is greatly reduced compared to other makes, with no kick-back effect when cranking.
