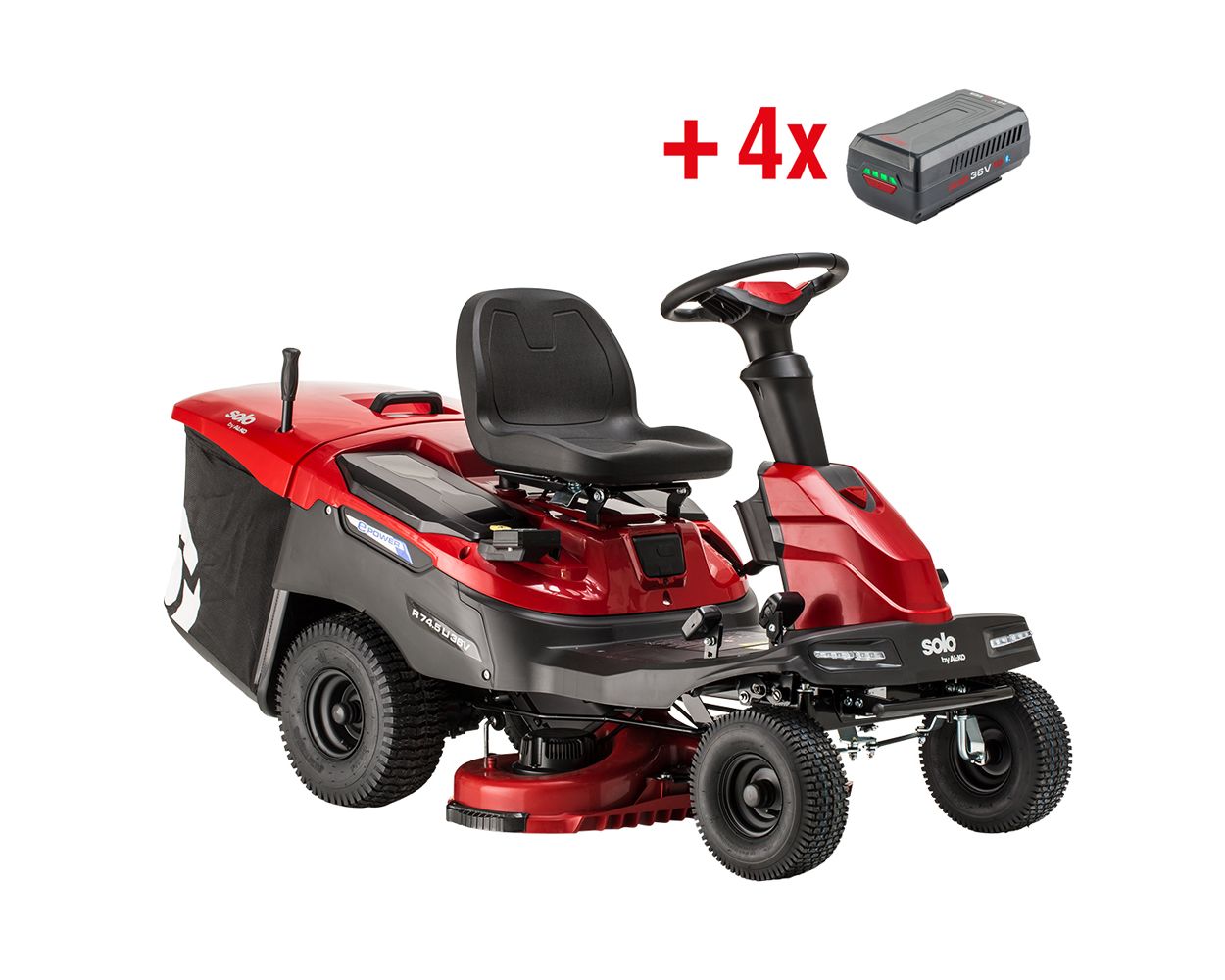

solo by AL-KO R 74.5 Li Premium 36V Battery Rear Collect Ride-On Lawn Mower

Description

Small yet powerful and agile, the solo by AL-KO Premium R 74.5 Li 36V battery-powered mini rider is a great all-rounder for tackling medium-sized or irregularly shaped gardens. Supplied complete with four 8.Ah 36V batteries and charging cable, the machine has a runtime of up to 60 minutes when fitted with a full compliment of six 8.0Ah batteries. The 36V batteries can be charged via a single port on the machine.

The comfortable, adjustable seat, combined with the steering wheel and user-friendly controls, ensures a high level of comfort. These controls require minimal effort to operate. The intuitive LED control panel shows battery and cutting status as well as control over blade speed.

With its 85cm cutting width and a cutting radius of just 74cm, R 74.5 Li is perfectly suited for gardens with many corners and angles, offering a mowing capacity of up to 4,500m² (depending on the battery selection). It reaches speeds of up to 8km/h forward and 6km/h in reverse. Mowing continues even when reversing. The geared steering offers maximum control and manoeuvrability with a tight turning circle.

The steel cutter deck is fitted with twin blades powered by high torque motors for a quality finish and great collection. The cutting height can be centrally adjusted in six increments from 3cm to 8cm. The drive is infinitely variable and electric, operated via a foot-operated hydrostatic system. The large grass catcher, with a 130 litre capacity, can be easily emptied using the telescopic lever and emits an audible signal when it's full. The mowing experience is further enhanced by the ability to cut close to edges on both sides.

The high back seat of the rider ensures comfort during mowing, whilst the bright LED headlights show a clear path in darker areas or when mowing early or late in the day. When you have finished the job, the R 74.5 Li ride-on mower can be stored safely upright when not in use and for cleaning or maintenance.

Specification

More Information
Brand	solo by AL-KO
Model	127783
Net Rated Power Output	Drive: 1.3kW / Blade: 2 x 0.8kW
Battery Housing	6 port
Battery	4 x lithium-ion included
Battery Voltage	36v
Battery Capacity	8Ah
Battery Charger	Cable included
Approx Run Time	6 x 8Ah batteries: Up to 60 mis
Transmission Type	E-drive
Transmission	Variable speed, foot-operated
Speeds	Forward: 8km/h / Reverse: 6km/h
Cruise Control	No
Productivity	4,500m² (depending on battery selection)
Cutting System	2-in-1: cut and collect
Width of Cut	74cm
Turning Circle	74cm
Deck Type	Steel
Blades	2
Blade Engagement	Push botton
Minimum Cutting Height	30mm
Maximum Cutting Height	80mm
Cutting Height Adjustment	Central, 6 positions
Grass Collector	Fabric grass bag with hard lid
Collector Capacity	130L
Fill Level Indicator	Yes, audible
Tipping Mechanism	Telescopic lever
Side Discharge	No
Mulch Kit	No
Rear Deflector	Optional accessory
Seat	Adjustable
Headlights	Integrated LED
Wheels - Front	11 x 4.00-5
Wheels - Rear	15 x 6.0-6
Tow Hitch	No
Assembled Dimensions	L: 192cm x W: 79cm x H: 104cm
Weight	173.0kg
Global Trade Item Number	4003718066098
Warranty	Machine - Manufacturer's standard domestic: 2 years Extended domestic: 5 years (subject to online registration and annual service) Commercial: 90 days Battery: 2 years
